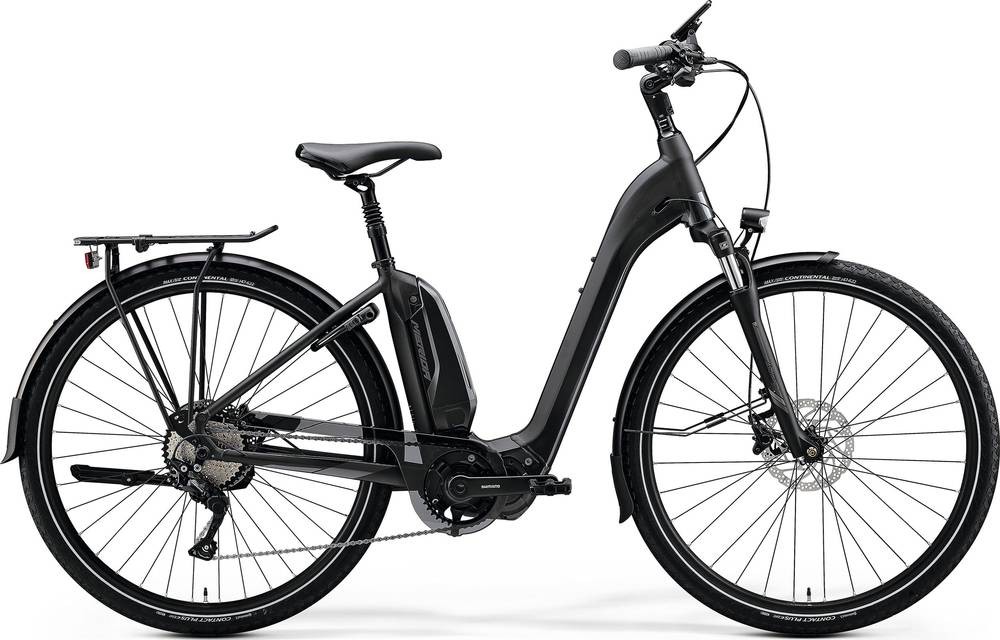

Merida eSPRESSO CITY 600 EQ 2020
2020 E-bike
Weight | 24.92 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE, material: aluminium, 700C wheelsize, 142x12mm axle standard, external, max. 504 Wh
Suspension Fork
Suntour NEX E25, Coil, 63mm suspension travel
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Shift Levers
Shimano Deore
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE61, 38 teeth, Shimano FC-E6100
Bottom Bracket
included
Chain
KMC e10S
Wheels
Front Hub
Shimano MT400, 100x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Plus, 622-47, wire, reflecting line
Brakes
Brakes
Shimano MT-401-3A, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Shimano E8010, 504Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.68 mm | 1.68 mm | 1.7 mm | 1.7 mm | 1.72 mm |
| Front Center | 659 mm | 662 mm | 672 mm | 682 mm | 690 mm |
| Rake | 46 mm | 46 mm | 46 mm | 47 mm | 46 mm |
| Trail | 81 mm | 78 mm | 78 mm | 74 mm | 75 mm |
| Stack | 649 mm | 660 mm | 674 mm | 691 mm | 705 mm |
| Reach | 387 mm | 392 mm | 396 mm | 406 mm | 410 mm |
| Top Tube Length | 573 mm | 588 mm | 603 mm | 618 mm | 633 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 415 mm | 450 mm | 490 mm | 530 mm | 570 mm |
| Head Tube Angle | 69.5 ° | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 160 mm | 170 mm | 185 mm | 200 mm | 215 mm |
| Chainstay Length | 488 mm | 488 mm | 488 mm | 488 mm | 488 mm |
| Wheelbase | 1138 mm | 1141 mm | 1151 mm | 1161 mm | 1169 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 376 mm | 377 mm | 377 mm | 378 mm | 378 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
eSPRESSO CITY 600 EQ is a Merida E Espresso model. There are 185 e-bikes that carry this model name. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Merida eSPRESSO 200 SE 2020 has a starting price of 2433$. Merida eSPRESSO 700 EQ 2020 on the other hand is the most expensive at 4014$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 24.92 kg (54.94 lbs), the eSPRESSO CITY 600 EQ model is slightly heavier than average. In other words, this model is 4.75% heavier than the average Hybrid e-bike.
Overview of components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
As for the wheels, Merida eSPRESSO CITY 600 EQ 2020, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
