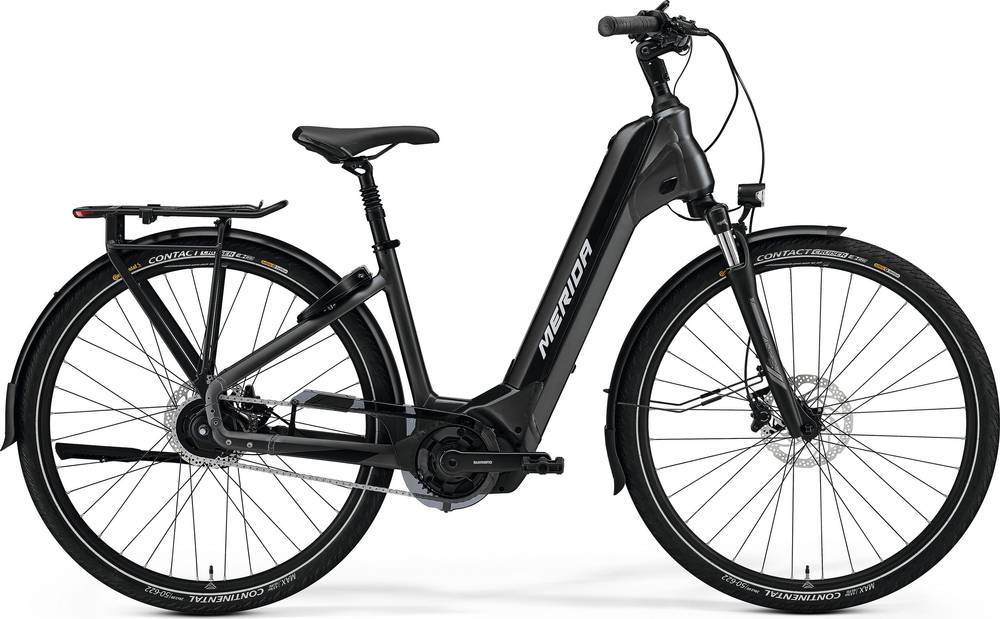

Merida eSPRESSO CITY 700 EQ 2021
2021 E-bike
Estimate price |
4,617$
Weight | 29.1 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8036, 630Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE II HG, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, internal, max. 630 Wh, hub-gear dropout
Suspension Fork
Suntour NEX E25, Coil, 63mm suspension travel, 700x52C max wheelsize
Drivetrain
Shift Levers
Shimano SW-E6010-R
Cassette
Shimano CS-C7000, 27 teeth
Crank
Shimano CRE61, 38 teeth, Shimano FC-E6100
Bottom Bracket
BSA, threaded
Chain
KMC Z1eHX EPT
Wheels
Front Hub
Shimano M4050 / Shimano Nexus Inter-5E, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rear Hub
Shimano M4050 / Shimano Nexus Inter-5E, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Tires
Continental Contact Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT402-3A, 2 piston
Disk Rotors
Shimano RT30 / Shimano RTEM300, 180 mm
Cockpit
Stem
MERIDA EXPERT TK, material: aluminium, 31.8mm diameter, adjustable, 65 mm-XS/S/M, 90 mm-L/XL
Handlebar
MERIDA EXPERT TK, material: aluminium, 640mm width, 35mm rise
Headset
MERIDA CAP w/ wire gateway
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT TK, 30.9mm diameter, 15mm setback, 40mm seatpost suspension travel
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Shimano E8036, 630Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.7 mm | 1.66 mm | 1.6 mm | 1.56 mm |
| Front Center | 651 mm | 666 mm | 687 mm | 707 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 653 mm | 658 mm | 662 mm | 672 mm |
| Reach | 383 mm | 396 mm | 415 mm | 432 mm |
| Top Tube Length | 577 mm | 592 mm | 612 mm | 632 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Wheelbase | 1110 mm | 1125 mm | 1146 mm | 1166 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 410 mm | 410 mm | 409 mm | 409 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
eSPRESSO CITY 700 EQ is a Merida E Espresso model. There are 185 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the Merida eSPRESSO L 300 SE EQ 504Wh 2021 has a starting price of 2483$. Merida eSPRESSO CITY 700 EQ 2021 on the other hand is the most expensive at 4197$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2021 for 4197$. Comparing this to the average Hybrid e-bike price, we see that the price is 69.23% higher.
Hybrid e-bikes average weight
If we make a quick analysis of the average weight of a Hybrid e-bike, we get 23.79 kg (52.45 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida eSPRESSO CITY 700 EQ it’s weighing 29.1 kg (64.15 lbs). At this weight, is much heavier than average. In conclusion, the average Hybrid e-bike weighs 22.32% less than eSPRESSO CITY 700 EQ.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on eSPRESSO CITY 700 EQ are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eSPRESSO CITY 700 EQ has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
