Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 85Nm mid-drive -
Battery Trendpower Internal Battery 750Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY LITE III HG, material: aluminium, 700x50C max. wheelsize, 135x9 mm axle standard, internal, hub-gear dropout
Suspension Fork
SR Suntour NEX E25, Coil, 63 mm suspension travel, 700x52C max. wheelsize
Drivetrain
Shift Levers
Shimano SW-EN600-R
Cassette
Shimano CS-C7000, 30 teeth
Crank
Samox P203, 38 teeth
Bottom Bracket
BSA, threaded
Chain
KMC Z1e
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC400 / Shimano Nexus Inter-5E, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC400 / Shimano Nexus Inter-5E, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20 mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT410-3A, 2 piston
Cockpit
Handlebar
MERIDA EXPERT, material: aluminium, 640 mm width, 35 mm rise
Headset
MERIDA 8254
Seat
Saddle
MERIDA EXPERT CT, V-mount
Seatpost
MERIDA EXPERT TK, 30.9 mm diameter, 15 mm setback, 40 mm seatpost suspension travel
Motor & Battery
Motor
Shimano EP6, 85Nm
Battery
Trendpower Internal Battery 750Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.699 mm | 1.657 mm | 1.591 mm | 1.552 mm | 1.513 mm |
| Front Center | 651 mm | 666 mm | 687 mm | 707 mm | 727 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 80 mm | 80 mm | 80 mm | 80 mm | 80 mm |
| Stack | 656 mm | 661 mm | 665 mm | 675 mm | 684 mm |
| Reach | 386 mm | 399 mm | 418 mm | 435 mm | 452 mm |
| Top Tube Length | 580 mm | 595 mm | 615 mm | 635 mm | 655 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 170 mm | 175 mm | 180 mm | 190 mm | 200 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1113 mm | 1128 mm | 1149 mm | 1169 mm | 1190 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 413 mm | 413 mm | 412 mm | 412 mm | 411 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

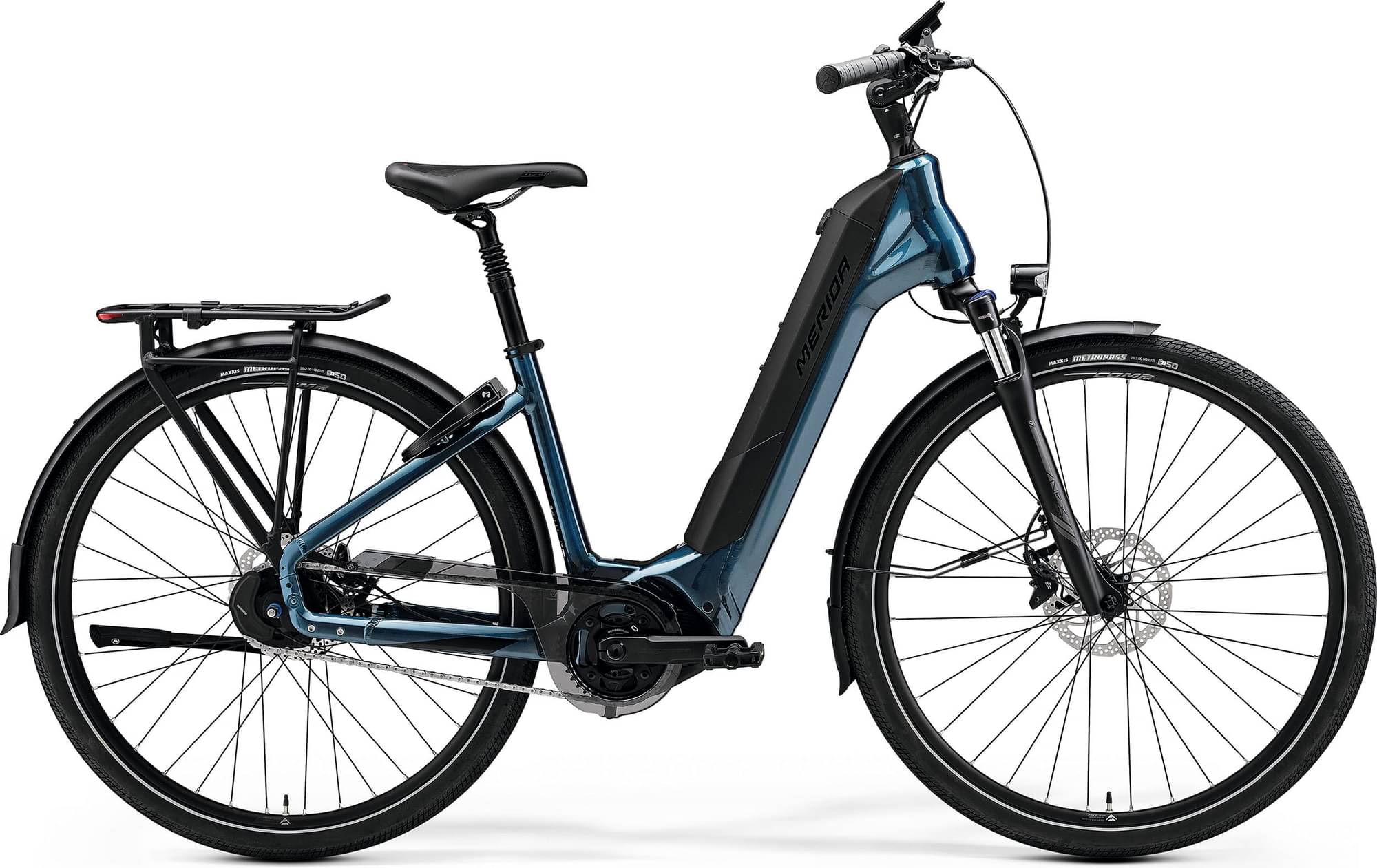

eSPRESSO CITY 775 EQ is part of the Merida E Espresso model. Merida released 204 e-bikes variations of this model so far. Check out the entire range from 2024 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
The eSPRESSO CITY 775 EQ comes factory-installed with the Suntour NEX fork. This has a travel range of 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The wheels on eSPRESSO CITY 775 EQ are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The eSPRESSO CITY 775 EQ has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
Merida eSPRESSO CITY 775 EQ e-bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
