Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E6001 500Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO CITY E6000
Suspension Fork
Suntour NEX-PM-DS-63mm travel
Drivetrain
Shift Levers
Shift Switch [Di2]
Cassette
Shimano Gear 21
Crank
Shimano CRE60 38
Chain
KMC X1
Wheels
Front Hub
Shimano M4050 centrelock front / Shimano Alfine 8 speed rear
Rear Hub
Shimano M4050 centrelock front / Shimano Alfine 8 speed rear
Rims
MERIDA 7 Comp CR
Spokes
Black stainless
Tires
Continental Ride Tour 42c with reflective strip
Brakes
Brakes
Shimano M500 hydraulic disc brakes, 180mm centrelock rotors
Brake Levers
attached
Cockpit
Handlebar
JD-TR25A 640 R35mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA COMFORT
Seatpost
Suspension One D 30.9mm
Motor & Battery
Motor
Shimano [E6002KL]
Battery
Shimano E6001 500Wh
Remote
Shimano SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.62 mm | 1.61 mm | 1.6 mm |
| Front Center | 667 mm | 676 mm | 698 mm | 719 mm |
| Rake | 46 mm | 44 mm | 45 mm | 45 mm |
| Trail | 81 mm | 84 mm | 82 mm | 82 mm |
| Stack | 649 mm | 650 | 668 mm | 687 mm |
| Reach | 391 mm | 401 mm | 416 mm | 430 mm |
| Top Tube Length | 591 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 580 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 180 mm | 180 mm | 200 mm | 220 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1120 mm | 1129 mm | 1151 mm | 1172 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

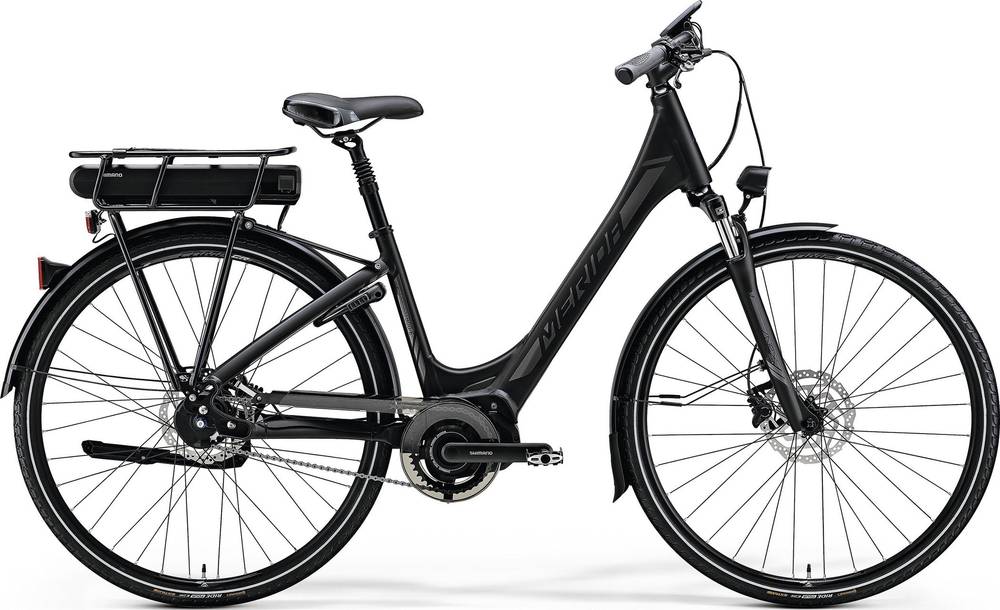

eSPRESSO CITY 800-E EQ is part of the Merida E Espresso model. There are 185 e-bikes that carry this model name. Check out the entire range from 2018 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Hybrid e-bikes average price
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Merida eSPRESSO CITY 800-E EQ 2018 e-bike is equipped with the SunTour NEX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
When it comes to wheels, the eSPRESSO CITY 800-E EQ e-bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO CITY 800-E EQ comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
