Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NEX
-
Groupset CUES, Shimano -
Suspension Hardtail -
Motor Shimano 250W 40Nm mid-drive -
Battery Shimano E8010 504Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L LITE, material: aluminium, 700C wheelsize, 142x12 mm axle standard, external, max. 504 Wh
Suspension Fork
SR Suntour NEX-PM-DS, Coil, 63 mm suspension travel, 700x48C max. wheelsize
Drivetrain
Rear Derailleur
Shimano CUES U3020, SGS
Shift Levers
Shimano CUES U4000
Cassette
Shimano LG300, 11-36 teeth, 9 speed
Crank
Shimano CRE50, 38 teeth
Bottom Bracket
BSA, threaded
Chain
Shimano LG500
Chain Guide
Sunnywheel SW-CG-173A
Pedals
VP VPE-891
Wheels
Front Hub
Shimano QC300 / Shimano TC500-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 142x12 mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano QC300 / Shimano TC500-HM, 100x9 mm width front hub, 32 spoke holes, Centerlock, 142x12 mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20 mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Ride Tour, 622x42", reflecting line
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise
Headset
MERIDA 2346
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT, material: aluminium, 30.9 mm diameter, 15 mm setback
Motor & Battery
Motor
Shimano E5000, 40Nm
Battery
Shimano E8010 504Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.629 mm | 1.632 mm | 1.645 mm | 1.668 mm |
| Front Center | 635 mm | 639 mm | 650 | 658 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 75 mm | 72 mm | 72 mm | 68 mm |
| Stack | 627 mm | 638 mm | 653 mm | 674 mm |
| Reach | 385 mm | 391 mm | 397 mm | 404 mm |
| Top Tube Length | 565 mm | 580 mm | 590 mm | 610 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 475 mm | 475 mm | 475 mm | 475 mm |
| Wheelbase | 1101 mm | 1105 mm | 1116 mm | 1124 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 627 mm | 627 mm | 631 mm | 635 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

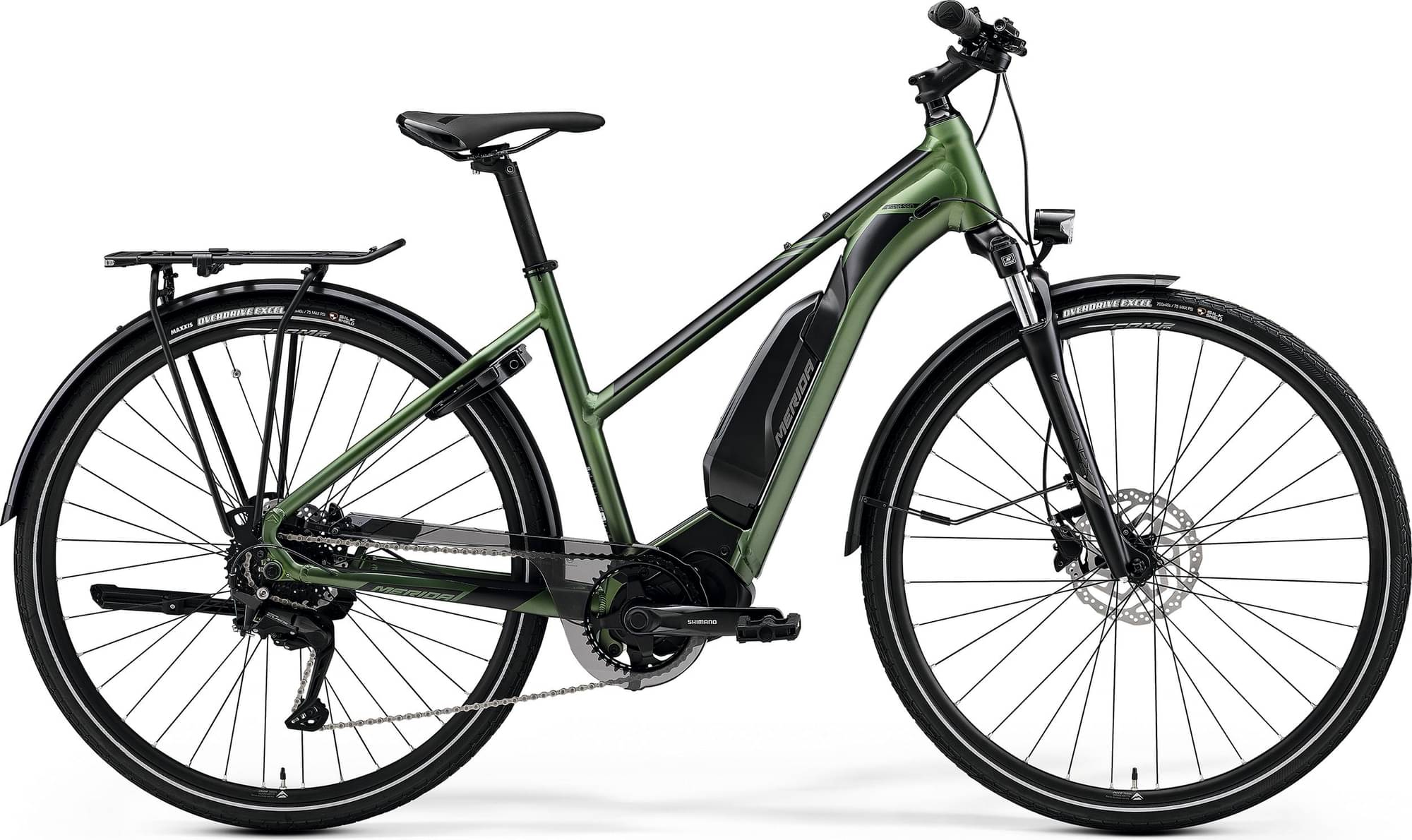

eSPRESSO L 300 EQ SE 504Wh is a Merida E Espresso model. Merida launched 204 e-bikes of this model so far. Take a sneak peek at all Merida E Espresso e-bikes models from 2024, by clicking here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the Suntour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Merida eSPRESSO L 300 EQ SE 504Wh 2024, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO L 300 EQ SE 504Wh is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
