Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Deore, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8010, 504 Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO / -L
Suspension Fork
Suntour NEX E25, Coil 63mm suspension travel
Drivetrain
Rear Derailleur
Shimano Deore Shadow+
Front Derailleur
no
Shift Levers
no / Shimano Deore
Cassette
Shimano HG500, 11-42 teeth, 10 speed
Crank
Shimano CRE61, 38 teeth, with chainguard
Chain
KMC e10T
Wheels
Front Hub
Shimano MT400, 100x15mm width, 32 spoke holes, Centerlock / Shimano MT400, 142x12mm width, 36 spoke holes, Centerlock
Rear Hub
Shimano MT400, 100x15mm width, 32 spoke holes, Centerlock / Shimano MT400, 142x12mm width, 36 spoke holes, Centerlock
Rims
MERIDA Comp TK, 20mm inner width
Spokes
Black stainless
Tires
Continental AT RIDE, 622-42, wire, reflective stripe
Brakes
Brakes
Shimano MT-200
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert TK, 660mm width, 15mm rise
Headset
MERIDA 2346 Neck, 2191025808
Seat
Saddle
MERIDA Comfort
Seatpost
MERIDA Expert, 30.9mm diameter, 15mm setback
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Shimano E8010, 504 Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL | XS | SM/MD | MD | LG |
|---|---|---|---|---|---|---|---|---|---|
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

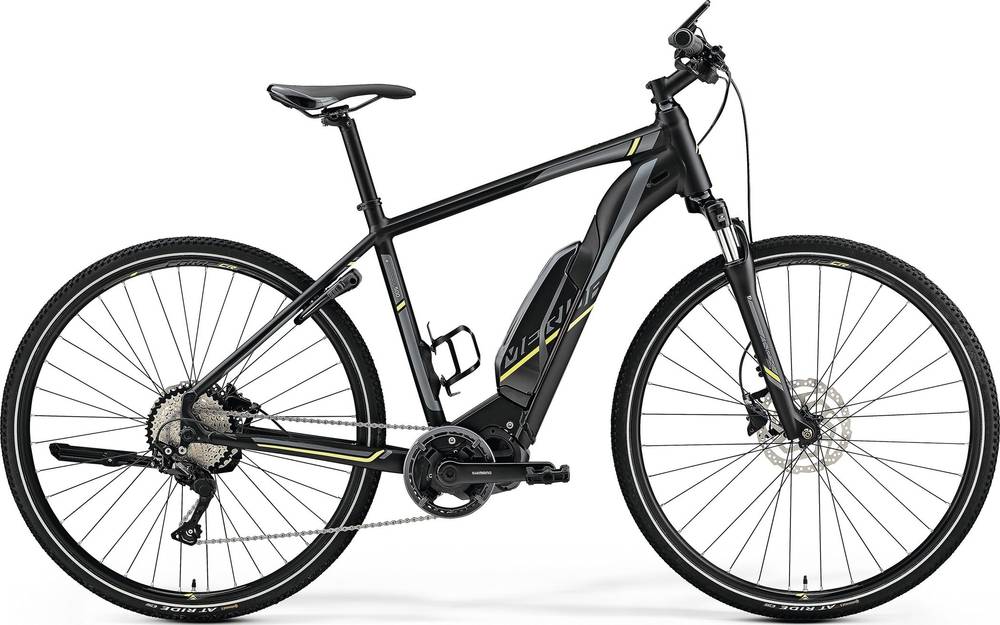

eSPRESSO / -L 500 is part of the Merida E Espresso model. There are 185 e-bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
The fork installed on this bike is the SunTour NEX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The eSPRESSO / -L 500 2019 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO / -L 500 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
