Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NEX
-
Groupset Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8035, 504Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO L LITE II HG, material: aluminium, 700C wheelsize, 142x12mm axle standard, intube, max. 504 Wh
Suspension Fork
Suntour NEX E25, Coil, 63mm suspension travel
Drivetrain
Shift Levers
no
Cassette
Shimano CS-C7000, 27 teeth, 1 speed
Crank
Shimano CRE61, 38 teeth
Bottom Bracket
included
Chain
KMC Z1eHX
Wheels
Front Hub
Shimano MT400, 100x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano Nexus Inter-5E, 135x9mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental Contact Cruiser, 622-50, wire, reflecting line
Brakes
Brakes
Shimano MT-401-3A, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2346 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E6100, 60Nm
Battery
Shimano E8035, 504Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.58 mm | 1.6 mm | 1.62 mm |
| Front Center | 644 mm | 649 mm | 660 mm | 669 mm |
| Rake | 43 mm | 44 mm | 44 mm | 44 mm |
| Trail | 78 mm | 74 mm | 74 mm | 70 mm |
| Stack | 622.5 mm | 633 mm | 647.5 mm | 668.5 mm |
| Reach | 393.5 mm | 399.5 mm | 405.5 mm | 413 mm |
| Top Tube Length | 561 mm | 576 mm | 586 mm | 606 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 175 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1109 mm | 1114 mm | 1125 mm | 1134 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

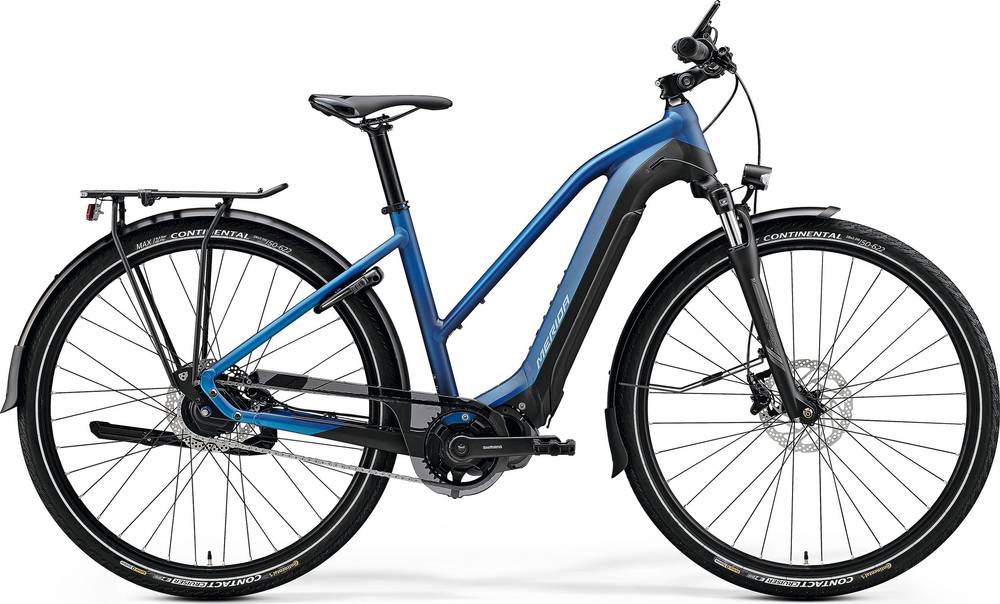

Model Overview
eSPRESSO L 700 EQ completes the Merida E Espresso model. Merida launched 185 e-bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
The most economical model, the Merida eSPRESSO 200 SE 2020 has a starting price of 2433$. Merida eSPRESSO 700 EQ 2020 on the other hand is the most expensive at 4014$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Hybrid e-bikes average weight
Hybrid e-bikes weigh an average of 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, eSPRESSO L 700 EQ has a weight of 25.39 kg (55.98 lbs). To sum up, it’s 6.73% heavier than the average weight of Hybrid e-bikes.
eSPRESSO L 700 EQ components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is 63mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the eSPRESSO L 700 EQ model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO L 700 EQ comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
