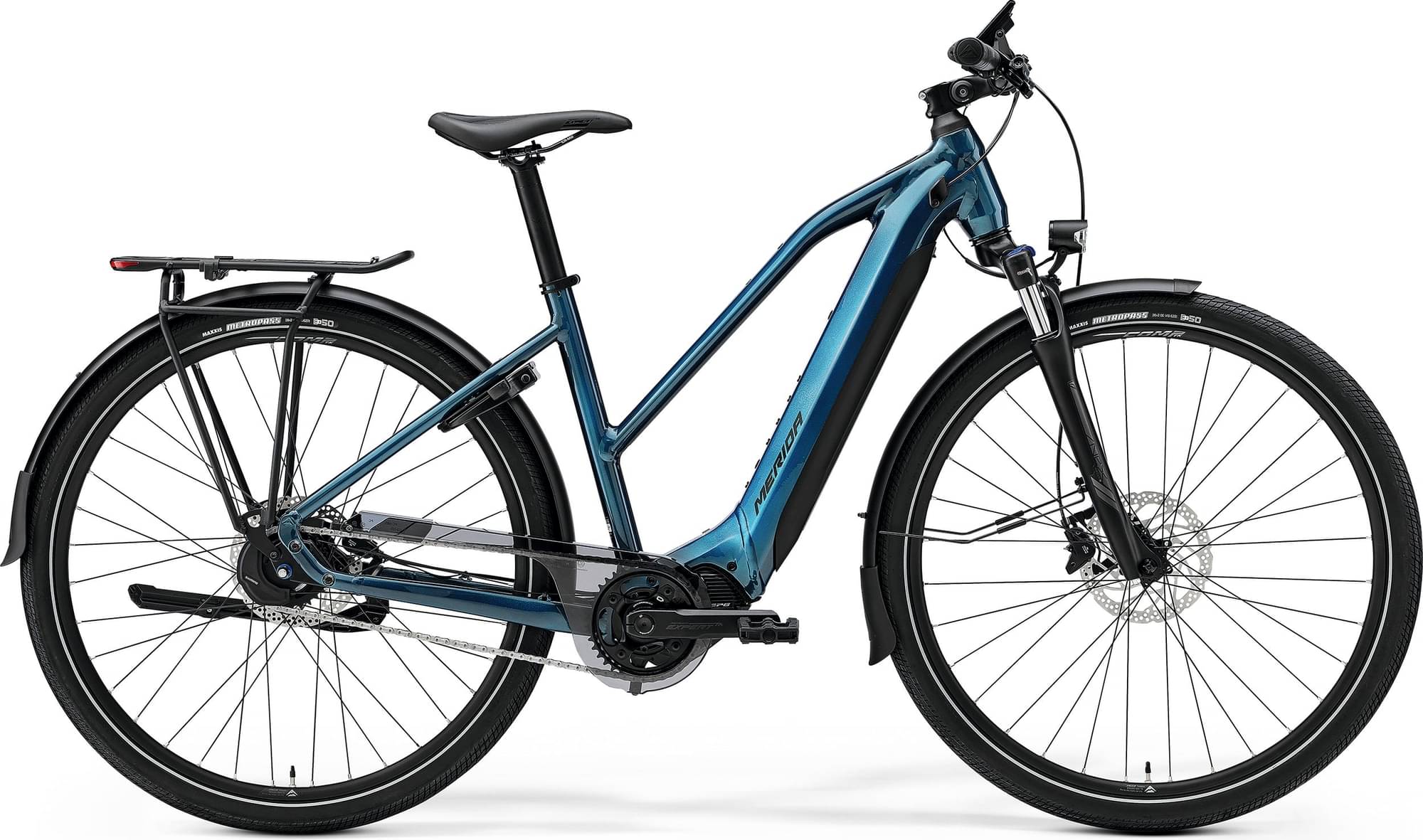

Merida eSPRESSO L 775 EQ 2024

2024 E-bike
E-bike
Open compare Use advisor
Merida Espresso L 775 Eq 2024

Bike details

Overview

Key information split into simple groups.

Bike summary

  • Category
  • Frame Aluminum
  • Wheels 700c
  • Groupset Shimano
  • Motor Shimano 250W 85Nm mid-drive
  • Battery Trendpower Internal Battery 750Wh
  • Drivetrain Internally Geared Hub
  • Brakes Hydraulic Disc
Sizing

Recommended size guide.

  • XS

    151cm - 164cm

  • SM

    159cm - 170cm

  • MD

    165cm - 177cm

  • LG

    171cm - 184cm

Parts list

Components

Main components, grouped by system.

Bike components

Frame

Frame

eSPRESSO L LITE IV HG, material: aluminium, 700x50C (with fender) max. wheelsize, 142x12 mm axle standard, intube

Drivetrain

Shift Levers

Shimano SW-EN600-R

Cassette

Shimano CS-C7000, 27 teeth

Crank

Samox P203, 38 teeth

Bottom Bracket

BSA, threaded

Chain

KMC Z1e

Chain Guide

Sunnywheel SW-CG-173A

Pedals

VP VPE-891

Wheels

Front Hub

Shimano QC400 / Shimano Nexus Inter-5E, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

Rear Hub

Shimano QC400 / Shimano Nexus Inter-5E, 100x9 mm width front hub, 32 spoke holes, Centerlock, 135x9 mm width rear hub, 32 spoke holes, Centerlock

Rims

MERIDA COMP TK, 20 mm inner width, material: aluminium

Spokes

Black stainless

Tires

Continental Contact Cruiser, 622-50, wire, reflecting line

Brakes

Brakes

Shimano MT402-3A, 2 piston, Shimano MT402-3A, 2 piston

Cockpit

Handlebar

MERIDA EXPERT, material: aluminium, 660 mm width, 15 mm rise

Headset

MERIDA 8156

Seat

Saddle

MERIDA EXPERT TK II, V-mount

Seatpost

MERIDA EXPERT CC, material: aluminium, 34.9 mm diameter, 0 mm setback

Motor & Battery

Motor

Shimano EP6, 85Nm

Battery

Trendpower Internal Battery 750Wh

Fit data

Geometry

Numbers for sizing and ride feel.

SizeXSSMMDLG
Stack Reach Ratio
1.565 mm1.583 mm1.594 mm1.613 mm
Front Center
677 mm676 mm687 mm696 mm
Rake
44 mm44 mm44 mm43 mm
Trail
87 mm84 mm84 mm81 mm
Stack
640 mm649 mm663 mm684 mm
Reach
409 mm410 mm416 mm424 mm
Top Tube Length
580 mm590 mm600 mm620 mm
Seat Tube Angle
75 °74.5 °74.5 °74 °
Seat Tube Length
430 mm470 mm510 mm550 mm
Head Tube Angle
69 °69.5 °69.5 °70 °
Head Tube Length
133 mm140 mm155 mm175 mm
Chainstay Length
478 mm478 mm478 mm478 mm
Wheelbase
1145 mm1144 mm1155 mm1164 mm
Bottom Bracket Drop
75 mm75 mm75 mm75 mm
Standover Height
593 mm610 mm631 mm650
Wheels700700700700
Rider Min Height151 cm159 cm165 cm171 cm
Rider Max Height164 cm170 cm177 cm184 cm

Model Overview

eSPRESSO L 775 EQ is a Merida E Espresso model. There are 204 e-bikes that carry this model name. You can easily view all of the Merida E Espresso e-bikes models from 2024, here.

Safety

When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.

Average price for Hybrid e-bikes

According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.

Overview of components

Wheels size

The eSPRESSO L 775 EQ 2024 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.

Brakes

Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO L 775 EQ is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.

Sizes

eSPRESSO L 775 EQ comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
