Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Fork SunTour NEX -
Groupset Deore, Alivio -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E6010 418Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO SPORT
Suspension Fork
Suntour NEX-D-DS-700C 50
Drivetrain
Rear Derailleur
Shimano Deore-9
Shift Levers
Shimano Alivio rapidfire
Cassette
Shimano CS-HG200-9 11-34
Crank
Shimano 38 DCG
Chain
KMC X9
Wheels
Front Hub
Shimano M4050 cen
Rear Hub
Shimano M4050 cen
Rims
MERIDA 7 comp CC
Spokes
Black stainless
Tires
Continental Tour Ride 42 Ref.
Brakes
Brakes
Shimano M315
Brake Levers
attached
Cockpit
Handlebar
MERIDA EXPERT OS 660 R15
Seat
Saddle
MERIDA COMFORT
Seatpost
MERIDA Expert H SB15 30.9
Motor & Battery
Motor
Shimano [E6001]
Battery
Shimano E6010 418Wh
Remote
Shimano Cyclo display SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 56cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.62 mm | 1.64 mm | 1.67 mm |
| Front Center | 626 mm | 636 mm | 651 mm | 667 mm |
| Rake | 45 mm | 49 mm | 52 mm | 43 mm |
| Trail | 73 mm | 68 mm | 62 mm | 68 mm |
| Stack | 619 mm | 619 mm | 640 mm | 681 mm |
| Reach | 375 mm | 381 mm | 391 mm | 409 mm |
| Top Tube Length | 567 mm | 577 mm | 597 mm | 617 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1074 mm | 1084 mm | 1099 mm | 1115 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 746 mm | 786 mm | 830 mm | 871 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

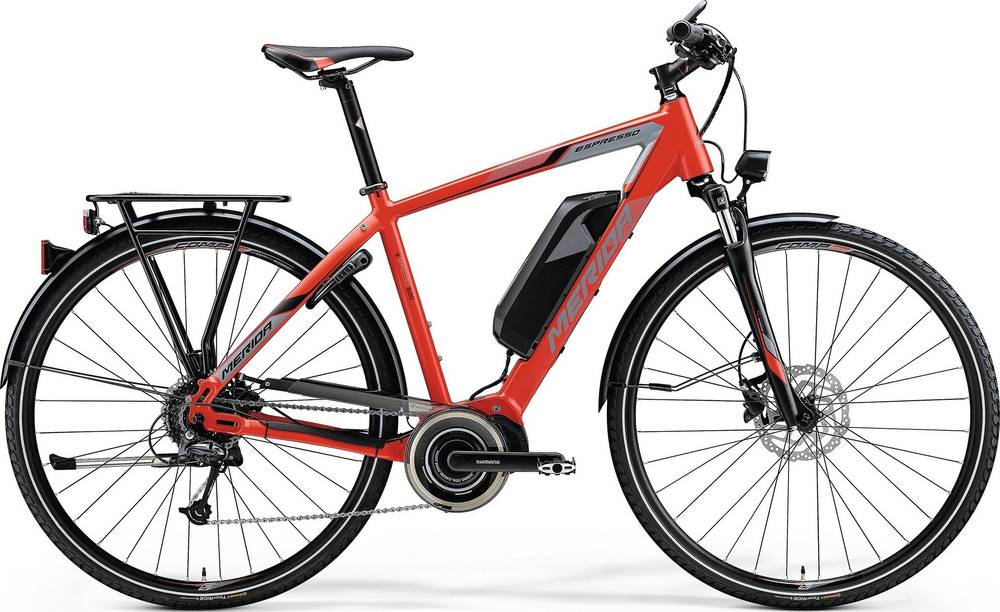

eSPRESSO SPORT 600 EQ completes the Merida E Espresso model. Merida released 185 e-bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
Our math shows that the average cost of a dependable Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
The SunTour NEX is included from the factory. It has a travel distance of mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on eSPRESSO SPORT 600 EQ are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO SPORT 600 EQ comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
