Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Fork SunTour NEX -
Groupset Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E6010 418Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO SPORT
Suspension Fork
Suntour NEX-D-DS-700C 50
Drivetrain
Shift Levers
Shift Switch [Di2]
Cassette
Shimano Alfine 8s
Crank
Shimano 38 DCG
Chain
KMC X8
Wheels
Front Hub
Shimano M4050 cen / Shimano Alfine 8s [Di2]
Rear Hub
Shimano M4050 cen / Shimano Alfine 8s [Di2]
Rims
MERIDA 7 comp CC
Spokes
Black stainless
Tires
Continental Tour Ride 42 Ref.
Brakes
Brakes
Shimano T445
Brake Levers
attached
Cockpit
Handlebar
MERIDA EXPERT OS 660 R15
Seat
Saddle
MERIDA COMFORT
Seatpost
MERIDA Expert H SB15 30.9
Motor & Battery
Motor
Shimano [E6001]
Battery
Shimano E6010 418Wh
Remote
Shimano Cyclo display SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 56cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.62 mm | 1.64 mm | 1.67 mm |
| Front Center | 626 mm | 636 mm | 651 mm | 667 mm |
| Rake | 45 mm | 49 mm | 52 mm | 43 mm |
| Trail | 73 mm | 68 mm | 62 mm | 68 mm |
| Stack | 619 mm | 619 mm | 640 mm | 681 mm |
| Reach | 375 mm | 381 mm | 391 mm | 409 mm |
| Top Tube Length | 567 mm | 577 mm | 597 mm | 617 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1074 mm | 1084 mm | 1099 mm | 1115 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 746 mm | 786 mm | 830 mm | 871 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

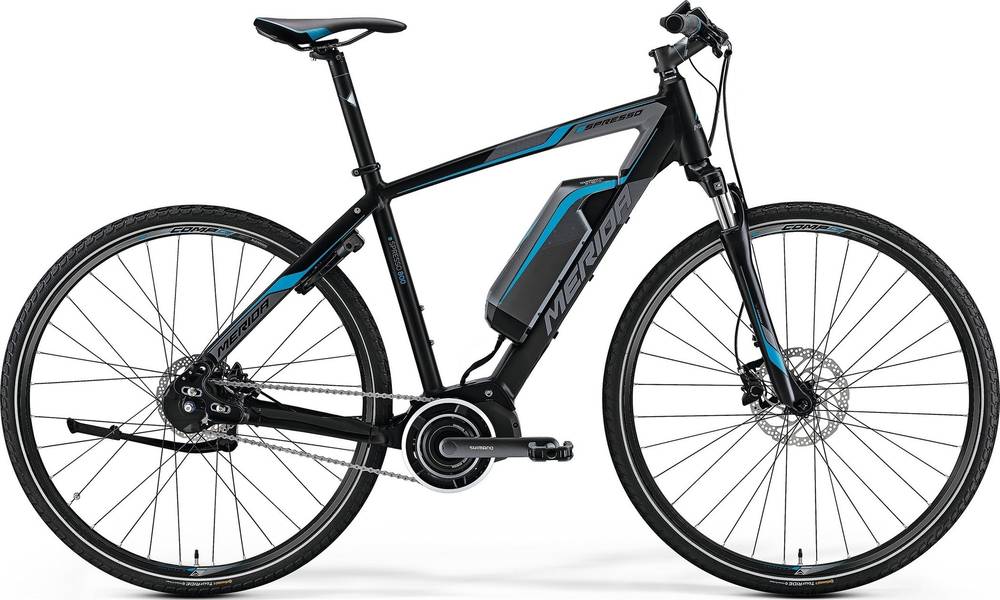

eSPRESSO SPORT 800 completes the Merida E Espresso model. 185 e-bikes variations carry this model name so far. You can easily view all of the Merida E Espresso e-bikes models from 2017, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
eSPRESSO SPORT 800 components
Fork
The eSPRESSO SPORT 800 comes factory-installed with the SunTour NEX fork. This has a travel range of mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, Merida eSPRESSO SPORT 800 2017, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO SPORT 800 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
