Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E6010 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO SPORT
Suspension Fork
Suntour NCX-D-DS-RL Air 63 700C CTS
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Shift Levers
Shimano XT 11
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano 38 DCG
Chain
KMC X10
Wheels
Front Hub
Shimano XT cen
Rear Hub
Shimano XT cen
Rims
MERIDA 7 comp CC
Spokes
Black stainless
Tires
Continental Tour Ride 42 Ref.
Brakes
Brakes
Shimano M506
Brake Levers
attached
Cockpit
Handlebar
MERIDA EXPERT OS 660 R15
Seat
Saddle
MERIDA COMFORT
Seatpost
MERIDA Expert H SB15 30.9
Motor & Battery
Motor
Shimano [E6001]
Battery
Shimano E6010 418Wh
Remote
Shimano Cyclo display SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 51cm | 56cm | 61cm |
|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.62 mm | 1.64 mm | 1.67 mm |
| Front Center | 626 mm | 636 mm | 651 mm | 667 mm |
| Rake | 45 mm | 49 mm | 52 mm | 43 mm |
| Trail | 73 mm | 68 mm | 62 mm | 68 mm |
| Stack | 619 mm | 619 mm | 640 mm | 681 mm |
| Reach | 375 mm | 381 mm | 391 mm | 409 mm |
| Top Tube Length | 567 mm | 577 mm | 597 mm | 617 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 610 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 72 ° |
| Head Tube Length | 140 mm | 140 mm | 160 mm | 200 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1074 mm | 1084 mm | 1099 mm | 1115 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 746 mm | 786 mm | 830 mm | 871 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model

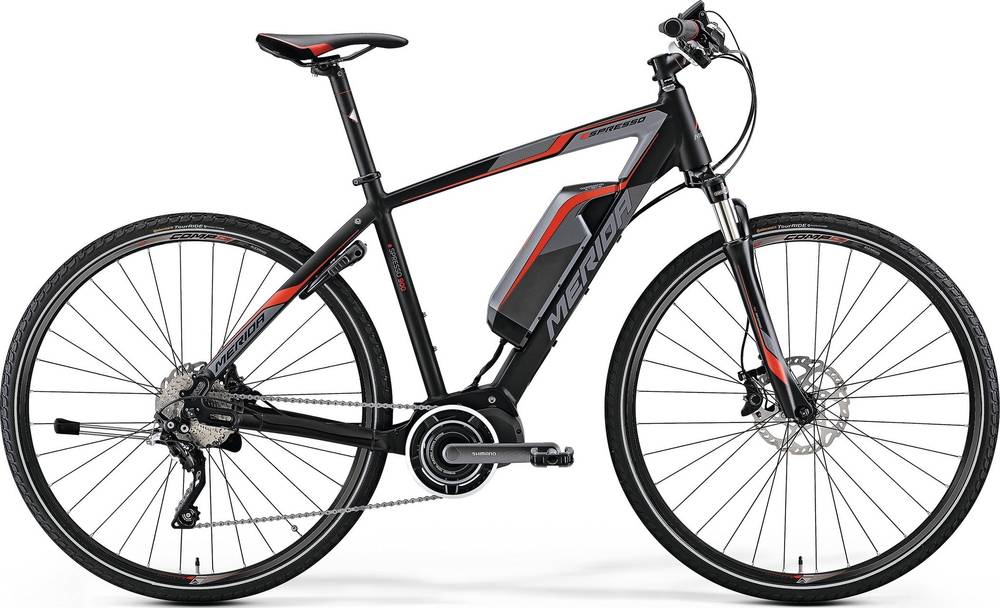

eSPRESSO SPORT 900 is part of the Merida E Espresso model. Merida released 185 e-bikes variations of this model so far. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
Merida eSPRESSO SPORT 900 2017 e-bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the eSPRESSO SPORT 900 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida eSPRESSO SPORT 900 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
