Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Fork SunTour NEX -
Groupset Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E6010 418Wh -
Drivetrain Internally Geared Hub -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO TOUR
Suspension Fork
Suntour NEX-D-DS-700C 50
Drivetrain
Shift Levers
Shift Switch [Di2]
Cassette
Shimano Alfine 8s
Crank
Shimano 38 DCG
Chain
KMC X8
Wheels
Front Hub
Shimano M4050 cen / Shimano Alfine 8s [Di2]
Rear Hub
Shimano M4050 cen / Shimano Alfine 8s [Di2]
Rims
MERIDA 7 comp CC
Spokes
Black stainless
Tires
Continental Tour Ride 42 Ref.
Brakes
Brakes
Shimano T445
Brake Levers
attached
Cockpit
Handlebar
MERIDA EXPERT OS 660 R15
Seat
Saddle
MERIDA COMFORT
Seatpost
MERIDA Expert H SB15 30.9
Motor & Battery
Motor
Shimano [E6001]
Battery
Shimano E6010 418Wh
Remote
Shimano Cyclo display SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.66 mm | 1.66 mm |
| Front Center | 623 mm | 634 mm | 649 mm |
| Rake | 42 mm | 40 mm | 40 mm |
| Trail | 76 mm | 78 mm | 75 mm |
| Stack | 623 mm | 642 mm | 663 mm |
| Reach | 379 mm | 386 mm | 399 mm |
| Top Tube Length | 571 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1075 mm | 1086 mm | 1101 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 653 mm | 533 mm | 635 mm |
| Wheels | 700 | 700 | 700 |
Model Overview

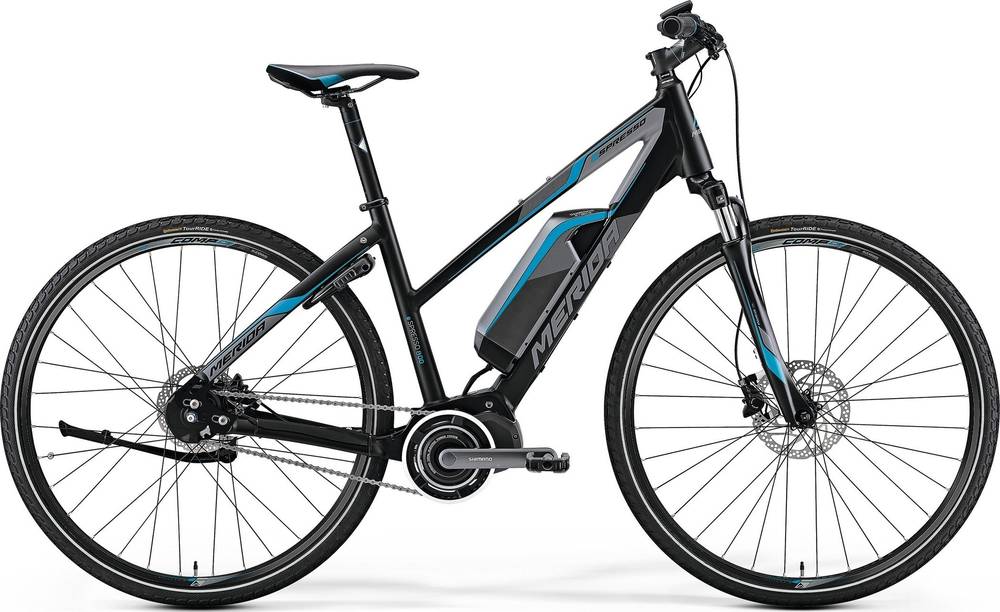

eSPRESSO TOUR 800 belongs to the Merida E Espresso model. There are 185 e-bikes that carry this model name. Take a sneak peek at all Merida E Espresso e-bikes models from 2017, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Hybrid e-bikes average price
If you want to purchase a solid Hybrid e-bike, it is important to know that the average cost is 2480$. However, even though the average price of a Hybrid e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This e-bike has the SunTour NEX fork installed. The fork’s travel is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The eSPRESSO TOUR 800 2017 e-bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida eSPRESSO TOUR 800 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
