Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano mid-drive -
Battery Shimano E6010 418Wh -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO TOUR
Suspension Fork
Suntour NCX-D-DS-RL Air 63 700C CTS
Drivetrain
Rear Derailleur
Shimano XT GS Shadow+
Shift Levers
Shimano XT 11
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano 38 DCG
Chain
KMC X10
Wheels
Front Hub
Shimano XT cen
Rear Hub
Shimano XT cen
Rims
MERIDA 7 comp CC
Spokes
Black stainless
Tires
Continental Tour Ride 42 Ref.
Brakes
Brakes
Shimano M506
Brake Levers
attached
Cockpit
Handlebar
MERIDA EXPERT OS 660 R15
Seat
Saddle
MERIDA COMFORT
Seatpost
MERIDA Expert H SB15 30.9
Motor & Battery
Motor
Shimano [E6001]
Battery
Shimano E6010 418Wh
Remote
Shimano Cyclo display SC-E6010
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 46cm | 50cm | 54cm |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.66 mm | 1.66 mm |
| Front Center | 623 mm | 634 mm | 649 mm |
| Rake | 42 mm | 40 mm | 40 mm |
| Trail | 76 mm | 78 mm | 75 mm |
| Stack | 623 mm | 642 mm | 663 mm |
| Reach | 379 mm | 386 mm | 399 mm |
| Top Tube Length | 571 mm | 581 mm | 601 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° |
| Head Tube Length | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1075 mm | 1086 mm | 1101 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 653 mm | 533 mm | 635 mm |
| Wheels | 700 | 700 | 700 |
Model Overview

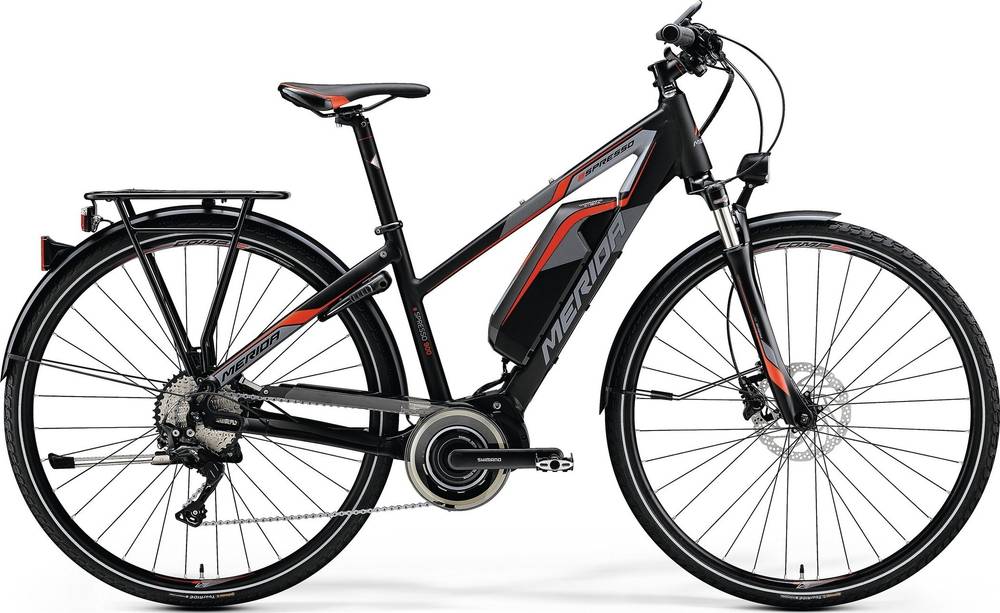

eSPRESSO TOUR 900 EQ is part of the Merida E Espresso model. Merida launched 185 e-bikes of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, even if your budget is less than the average, you might still be able to get a top-quality Hybrid e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
eSPRESSO TOUR 900 EQ components
Fork
The fork installed on this bike is the SunTour NCX model. The travel on this model is 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the eSPRESSO TOUR 900 EQ model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The eSPRESSO TOUR 900 EQ has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
