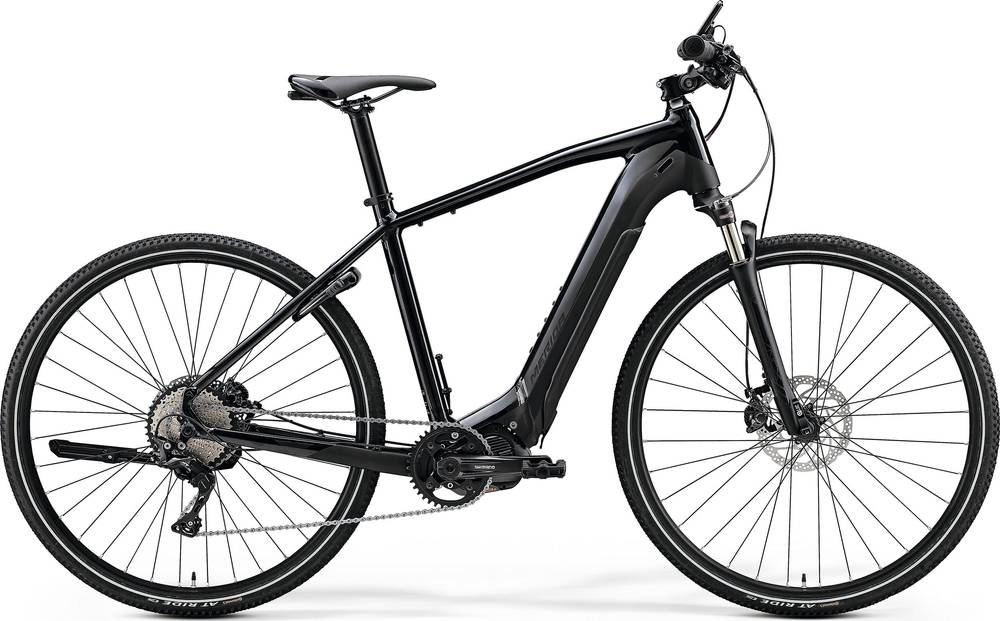

Merida eSPRESSO XT-EDITION 2020
2020 E-bike
Weight | 21.19 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset XT, Shimano -
Suspension Hardtail -
Motor Shimano 250W 60Nm mid-drive -
Battery Shimano E8035, 504Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
eSPRESSO LITE II, material: aluminium, 700C wheelsize, 142x12mm axle standard, intube, max. 504 Wh
Suspension Fork
Suntour NCX RL, Air, 63mm suspension travel, Tapered, remote lockout
Drivetrain
Rear Derailleur
Shimano XT M8000 Shadow+
Shift Levers
Shimano XT
Cassette
Shimano M7000, 11-42 teeth, 11 speed
Crank
Shimano CRE80, 38 teeth, Shimano FC-E8000
Bottom Bracket
included
Chain
KMC e11S
Wheels
Front Hub
Shimano Deore, 100x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano Deore, 142x12mm width rear hub, 36 spoke holes, Centerlock
Rims
MERIDA COMP TK, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Continental AT RIDE, 622-42, wire, reflecting line
Brakes
Brakes
Shimano XT, 2 piston
Cockpit
Handlebar
MERIDA EXPERT TK, material: aluminium, 660mm width, 15mm rise
Headset
MERIDA 2333 Neck
Seat
Saddle
MERIDA EXPERT TK, V-mount, incl. MERIDA minitool
Seatpost
MERIDA EXPERT CC, material: aluminium, 34.9mm diameter, 0mm setback
Motor & Battery
Motor
Shimano E7000, 60Nm
Battery
Shimano E8035, 504Wh
Remote
Shimano SC-E6100
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.59 mm | 1.6 mm | 1.62 mm | 1.64 mm |
| Front Center | 645 mm | 649 mm | 660 mm | 669 mm | 690 mm |
| Rake | 45 mm | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 76 mm | 74 mm | 74 mm | 70 mm | 70 mm |
| Stack | 622 mm | 633 mm | 647.5 mm | 668.5 mm | 697 mm |
| Reach | 393 mm | 399 mm | 405 mm | 413 mm | 425 mm |
| Top Tube Length | 561 mm | 576 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 75 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 470 mm | 510 mm | 550 mm | 590 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° | 71.5 ° | 71.5 ° |
| Head Tube Length | 130 mm | 140 mm | 155 mm | 175 mm | 205 mm |
| Chainstay Length | 474 mm | 474 mm | 474 mm | 474 mm | 474 mm |
| Wheelbase | 1110 mm | 1114 mm | 1125 mm | 1134 mm | 1155 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 720 mm | 754 mm | 789 mm | 824 mm | 860 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
eSPRESSO XT-EDITION is a Merida E Espresso model. 185 e-bikes variations carry this model name so far. Check out the entire range from 2020 of this model, by clicking this link.
Model range prices
Merida eSPRESSO 200 SE 2020 is the cheapest e-bike model and costs 2433$. Merida eSPRESSO 700 EQ 2020 is the most expensive one and costs 4014$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Hybrid e-bikes
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Hybrid e-bikes
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 21.19 kg (46.72 lbs), Merida e-bike is considerably lighter than average. In short, the average Hybrid e-bike weight is 12.27% higher than this one.
Overview of components
Fork
Merida eSPRESSO XT-EDITION 2020 e-bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
When leaving the production line, the eSPRESSO XT-EDITION model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The eSPRESSO XT-EDITION comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
eSPRESSO XT-EDITION comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
