Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCM
-
Groupset Alivio, Shimano -
Suspension Hardtail -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Hardy Comp-D
Suspension Fork
SR Suntour XCM 100
Drivetrain
Rear Derailleur
Shimano Alivio 9
Front Derailleur
Shimano Alivio
Shift Levers
Shimano SL-M430 3 / Shimano SL-M430 9
Cassette
Shimano HG20-9 11-32
Crank
FSA DynaDrive 32/22 Alloy Guard
Bottom Bracket
FSA Powerdrive
Chain
KMC Z99 9s
Wheels
Front Hub
Alloy Disc QR
Rear Hub
Alloy Disc QR
Rims
Double wall DP-20
Spokes
Black stainless
Tires
MERIDA Trail 2.25
Brakes
Brakes
Tektro HDC Hydraulic Disc 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA OS 670 R20
Headset
R55S
Seat
Saddle
Velo VL-7073-8
Seatpost
MJ MSP-15AL.1 31.6D*350L
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.51 mm | 1.4 mm |
| Bottom Bracket Height | 303 mm | 303 mm | 303 mm |
| Stack | 592 mm | 592 mm | 592 mm |
| Reach | 362 mm | 392 mm | 422 mm |
| Top Tube Length | 553 mm | 583 mm | 613 mm |
| Seat Tube Angle | 72 ° | 72 ° | 72 ° |
| Seat Tube Length | 335 mm | 395 mm | 455 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

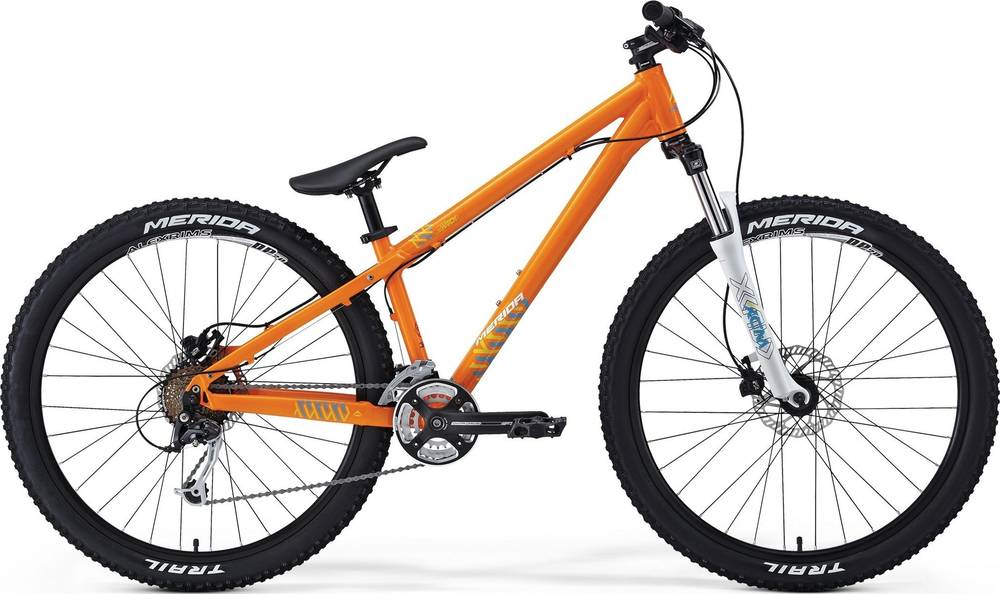

Hardy 4 is part of the Merida Hardy model. Merida released 11 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Dirt Jump bikes average price
Our math shows that the average cost of a dependable Dirt Jump bike is 863$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Dirt Jump bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Dirt Jump bikes average weight
The average weight for Dirt Jump bikes is 12.37 kg (27.27 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Hardy 4 weighs 13.7 kg (30.2 lbs) and is considerably heavier than the average. In short, the average Dirt Jump bike weight is 10.75% lower than this one.
Hardy 4 components
Fork
Merida Hardy 4 2014 bike is equipped with the SunTour XCM fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When leaving the production line, the Hardy 4 model has 26″ aluminum wheels. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Hardy 4 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Hardy 4 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
