Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Juliet Comp 27-Single
Suspension Fork
SR Suntour 27 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Alivio 9
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus Rapidfire
Cassette
Shimano CS-HG20-9 11-34
Crank
Shimano M391 44-32-22 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC Z99 9s
Wheels
Front Hub
Alloy Disc QR
Rear Hub
Alloy Disc QR
Rims
MERIDA Big.Seven Comp D
Spokes
black+white stainless
Tires
MERIDA Race 27.5 2.1
Brakes
Brakes
Tektro HDC Hydraulic Disc 180 mm / Tektro HDC Hydraulic Disc 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA Comp OS 640 R25
Headset
Conoid semi Neck
Seat
Saddle
Juliet Sport
Seatpost
Merida Comp SB12 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.55 mm | 1.54 mm | 1.53 mm | 1.53 mm |
| Bottom Bracket Height | 292 mm | 292 mm | 292 mm | 292 mm | 292 mm |
| Stack | 594 mm | 599 mm | 606 mm | 615 mm | 625 mm |
| Reach | 378 mm | 386 mm | 394 mm | 401 mm | 408 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

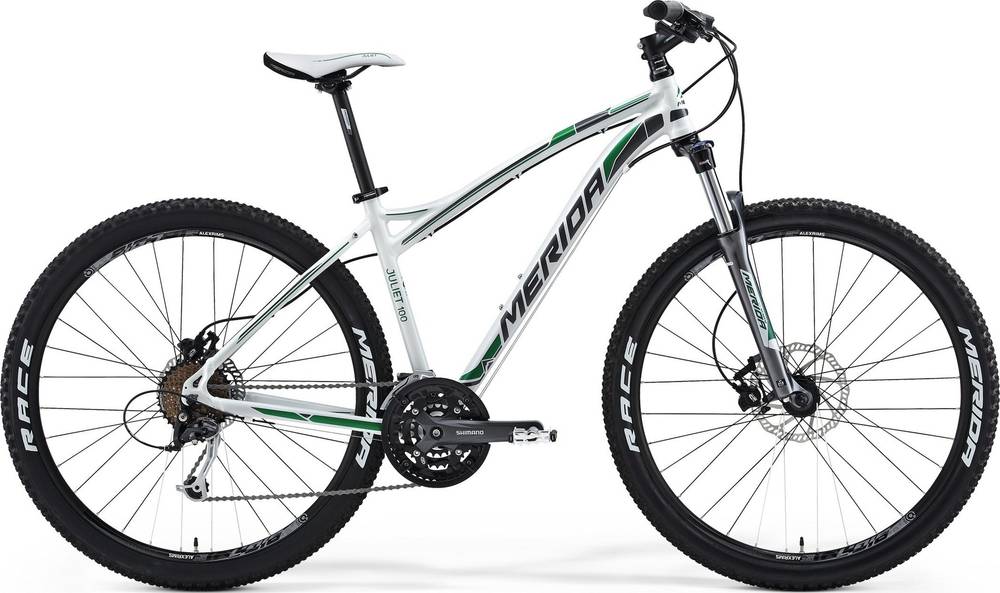

Juliet 100-B belongs to the Merida Juliet model. 74 bikes variations carry this model name so far. Take a sneak peek at all Merida Juliet bikes models from 2014, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13.5 kg (29.76 lbs), Merida bike is a bit heavier than average. In other words, this model is 8.87% heavier than the average Crosscountry bike.
Overview of components
Fork
Merida Juliet 100-B 2014 bike is equipped with the SunTour XCM HLO fork, and has 100mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Juliet 100-B model has 27.5″ aluminum wheels. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Juliet 100-B has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
