Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Juliet Speed-V
Suspension Fork
SR Suntour XCT 100
Drivetrain
Rear Derailleur
Shimano Acera-X
Front Derailleur
Shimano M310
Shift Levers
Shimano ST-EF51 3 / Shimano ST-EF51 8
Cassette
SunRace CS-M8 11-32
Crank
SR Suntour XCC 42-32-22 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC Z51 8s
Wheels
Front Hub
Alloy QR / Alloy Cassette-8
Rear Hub
Alloy QR / Alloy Cassette-8
Rims
Juliet V
Spokes
Steel UCP
Tires
MERIDA 1.95
Brakes
Brakes
V-Brake Linear
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 600
Headset
Conoid
Seat
Saddle
Juliet Comfort
Seatpost
Merida Speed 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.61 mm | 1.61 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 577 mm | 586 mm | 596 mm | 607 mm |
| Reach | 375 mm | 372 mm | 371 mm | 378 mm |
| Top Tube Length | 545 mm | 545 mm | 552 mm | 563 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

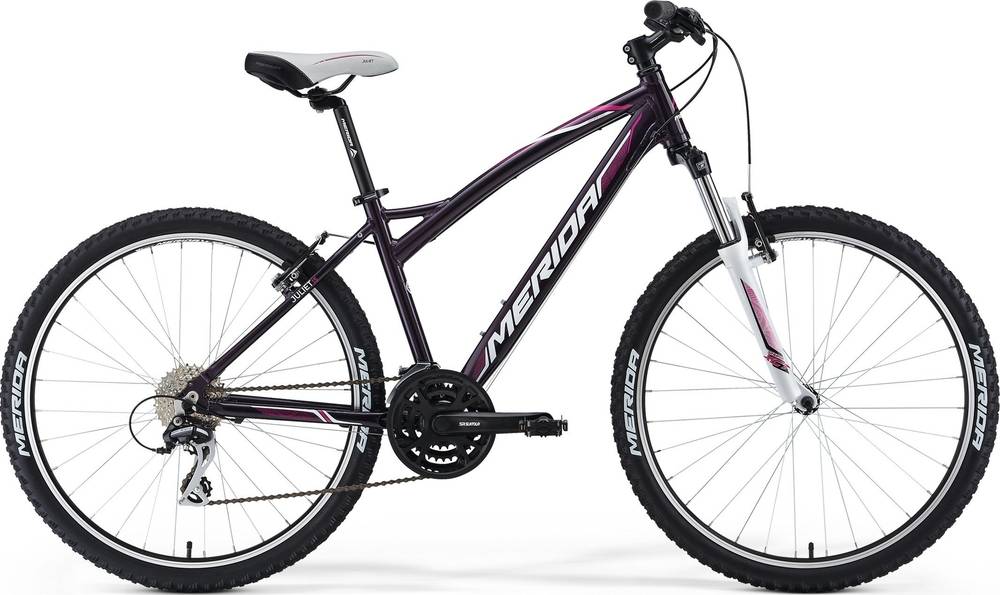

Juliet 15 belongs to the Merida Juliet model. Merida released 74 bikes variations of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Juliet 15 weighs 13.5 kg (29.76 lbs) and is a bit heavier than the average. In conclusion, the average Crosscountry bike weighs 8.87% less than Juliet 15.
Juliet 15 components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The wheels on Juliet 15 are the 27.5″ aluminum type. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Juliet 15 is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
