Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Juliet Speed-V
Suspension Fork
SR Suntour XCT MLO 100
Drivetrain
Rear Derailleur
Shimano Acera-X
Front Derailleur
Shimano M190
Shift Levers
Shimano ST-EF51 3 / Shimano ST-EF51 8
Cassette
Shimano CS-HG31-8 11-32
Crank
Shimano M131 42-34-24 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC Z51 8s
Wheels
Front Hub
Alloy QR / Shimano RM30-8
Rear Hub
Alloy QR / Shimano RM30-8
Rims
Juliet V
Spokes
Steel UCP
Tires
MERIDA 1.95
Brakes
Brakes
V-Brake Linear
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 600
Headset
Conoid
Seat
Saddle
Juliet Sport
Seatpost
Merida Speed 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.61 mm | 1.61 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 577 mm | 586 mm | 596 mm | 607 mm |
| Reach | 375 mm | 372 mm | 371 mm | 378 mm |
| Top Tube Length | 545 mm | 545 mm | 552 mm | 563 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 27" | 27" | 27" | 27" |
About this model

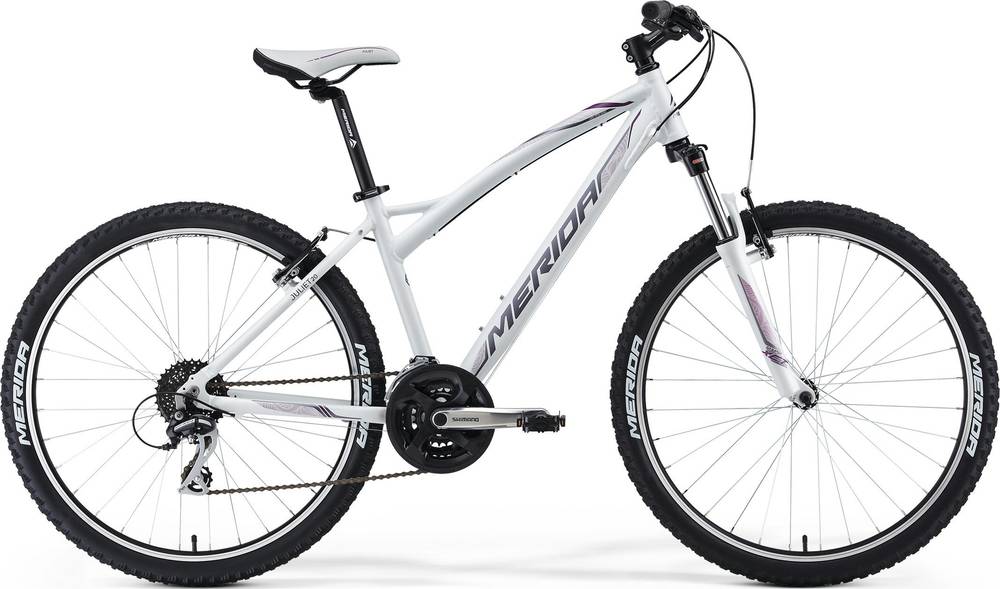

Juliet 20-V belongs to the Merida Juliet model. Merida launched 74 bikes of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Juliet 20-V weighs 13 kg (28.66 lbs) and is slightly heavier than the average. To sum up, it’s 4.84% heavier than the average weight of Crosscountry bikes.
Juliet 20-V components
Fork
Merida Juliet 20-V 2014 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The wheels on Juliet 20-V are the 27.5″ aluminum type. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Juliet 20-V comes with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
