Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Juliet Speed-D
Suspension Fork
SR Suntour 26 XCT MLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus Rapidfire
Cassette
SunRace CS-M9 11-32
Crank
SR Suntour XCM 44-32-22 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC Z99 9s
Wheels
Front Hub
Alloy Disc QR
Rear Hub
Alloy Disc QR
Rims
MERIDA Juliet D
Spokes
stainless silver
Tires
MERIDA 1.95
Brakes
Brakes
ProMax DSK Hydraulic 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 600
Headset
Conoid Steel
Seat
Saddle
Juliet Sport
Seatpost
Merida Speed 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.61 mm | 1.61 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 577 mm | 586 mm | 596 mm | 607 mm |
| Reach | 375 mm | 372 mm | 371 mm | 378 mm |
| Top Tube Length | 545 mm | 545 mm | 552 mm | 563 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

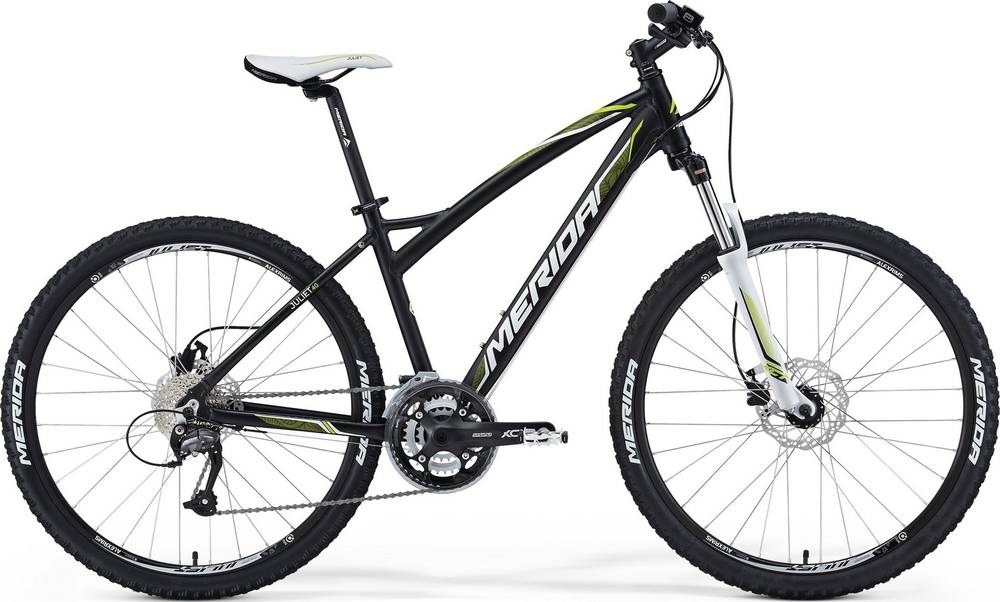

Juliet 40-D belongs to the Merida Juliet model. There are 74 bikes that carry this model name. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Juliet 40-D weighs 13.5 kg (29.76 lbs) and is a bit heavier than the average. In short, the average Crosscountry bike weight is 8.87% lower than this one.
Overview of components
Fork
The Juliet 40-D comes factory-installed with the SunTour XCT fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
As for the wheels, Merida Juliet 40-D 2014, has a 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Juliet 40-D comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
