Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Suntour SR -
Suspension Hardtail -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Juliet Speed-V
Suspension Fork
SR Suntour XCT MLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus Rapidfire
Cassette
SunRace CS-M9 11-32
Crank
SR Suntour XCM 44-32-22 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC Z99
Wheels
Front Hub
Alloy QR / Shimano RM30-8
Rear Hub
Alloy QR / Shimano RM30-8
Rims
Juliet V
Spokes
stainless silver
Tires
MERIDA 1.95
Brakes
Brakes
V-Brake Linear
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 600
Headset
Conoid
Seat
Saddle
Juliet Sport
Seatpost
Merida Speed 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" |
|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.58 mm | 1.61 mm | 1.61 mm |
| Bottom Bracket Height | 300 mm | 300 mm | 300 mm | 300 mm |
| Stack | 577 mm | 586 mm | 596 mm | 607 mm |
| Reach | 375 mm | 372 mm | 371 mm | 378 mm |
| Top Tube Length | 545 mm | 545 mm | 552 mm | 563 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 368 mm | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 71 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Wheels | 27" | 27" | 27" | 27" |
Model Overview

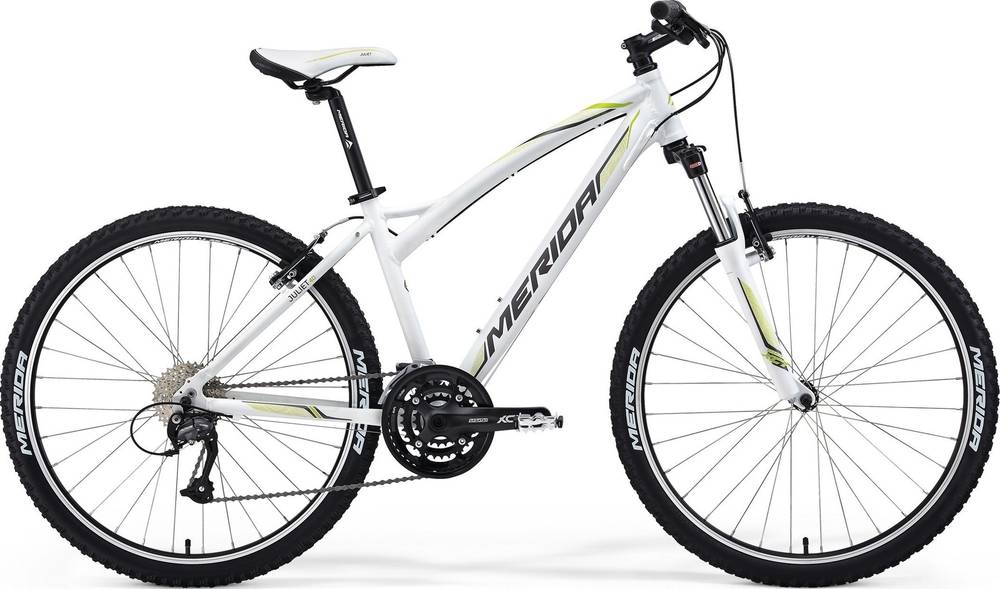

Juliet 40-V is a Merida Juliet model. There are 74 bikes that carry this model name. You can easily view all of the Merida Juliet bikes models from 2014, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 13 kg (28.66 lbs), Merida bike is slightly heavier than average. In short, the average Crosscountry bike weight is 4.84% lower than this one.
Juliet 40-V components
Fork
Merida Juliet 40-V 2014 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The Juliet 40-V 2014 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Juliet 40-V is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
