Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Juliet Comp 27-Single
Suspension Fork
Rock Shox XC30TK27 100
Drivetrain
Rear Derailleur
Shimano Deore XT Shadow
Front Derailleur
Shimano Deore H32 triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG-10 11-36
Crank
Shimano M522 Octa 42-32-24
Bottom Bracket
Shimano Octalink
Chain
KMC X10 10s
Wheels
Front Hub
Shimano M435 Cen
Rear Hub
Shimano M435 Cen
Rims
MERIDA Big.Seven Comp D
Spokes
black+white stainless
Tires
MERIDA Race Lite 27.5 2.1 fold
Brakes
Brakes
Shimano M445 180 mm Cen / Shimano M445 160 mm Cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA Comp OS 640 R25
Headset
Conoid semi Neck
Seat
Saddle
Juliet Sport
Seatpost
Merida Comp SB12 27.2 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.55 mm | 1.54 mm | 1.53 mm | 1.53 mm |
| Bottom Bracket Height | 292 mm | 292 mm | 292 mm | 292 mm | 292 mm |
| Stack | 594 mm | 599 mm | 606 mm | 615 mm | 625 mm |
| Reach | 378 mm | 386 mm | 394 mm | 401 mm | 408 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

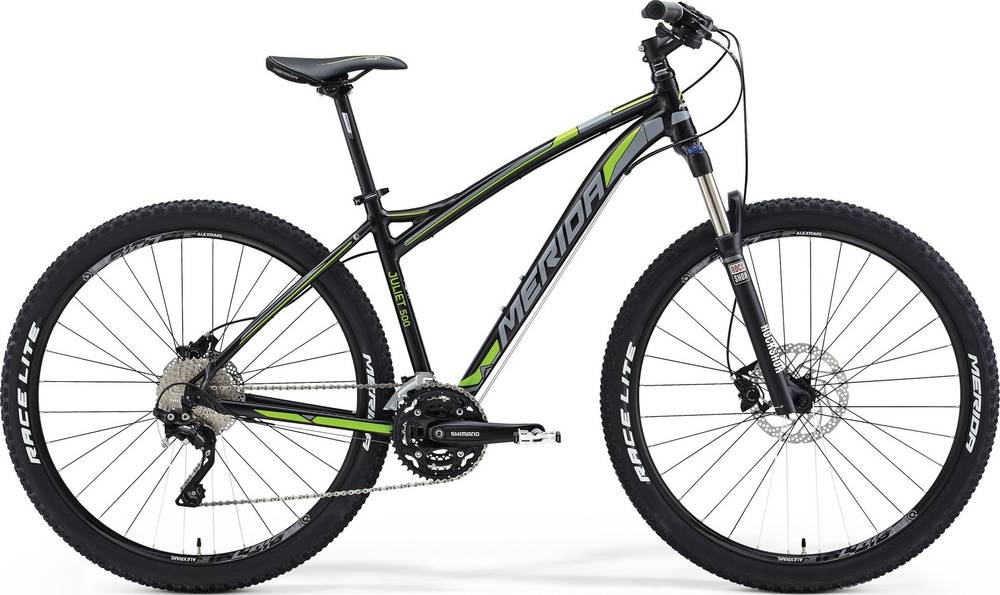

Juliet 500-B is part of the Merida Juliet model. Merida launched 74 bikes of this model so far. Check out the entire range from 2014 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Juliet 500-B weighs 12.7 kg (28 lbs) and is slightly heavier than the average. In short, the average Crosscountry bike weight is 2.42% lower than this one.
Juliet 500-B components
Wheels
When it comes to wheels, the Juliet 500-B bike is equipped with the 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida Juliet 500-B has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
