Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Tourney -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET SPEED-V
Suspension Fork
Suntour SR 26 XCT 100
Drivetrain
Rear Derailleur
Shimano Altus 8
Front Derailleur
Shimano Tourney
Shift Levers
Shimano EF41 fire / Shimano EF41 fire 7
Cassette
Shimano MF-TZ21 14-28
Crank
Shimano M131 42-34-24 CG (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
7s
Wheels
Front Hub
OV alloy
Rear Hub
OV alloy
Rims
MERIDA Juliet V
Spokes
ucp steel+white
Tires
MERIDA 26 1.95
Brakes
Brakes
V-Brake Linear
Cockpit
Handlebar
MERIDA Steel 620 R30
Headset
FSA No.10
Seat
Saddle
Juliet Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.64 mm | 1.66 mm | 1.66 mm | 1.65 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 609 mm | 619 mm | 619 mm | 629 mm | 640 mm |
| Rake | 39 mm | 39 mm | 38 mm | 38 mm | 44 mm |
| Trail | 87 mm | 87 mm | 84 mm | 84 mm | 75 mm |
| Stack | 588 mm | 598 mm | 609 mm | 619 mm | 628 mm |
| Reach | 357 mm | 364 mm | 366 mm | 373 mm | 380 mm |
| Top Tube Length | 534 mm | 544 mm | 554 mm | 564 mm | 574 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 155 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1022 mm | 1032 mm | 1032 mm | 1042 mm | 1053 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 638 mm | 723 mm | 753 mm | 782 mm | mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

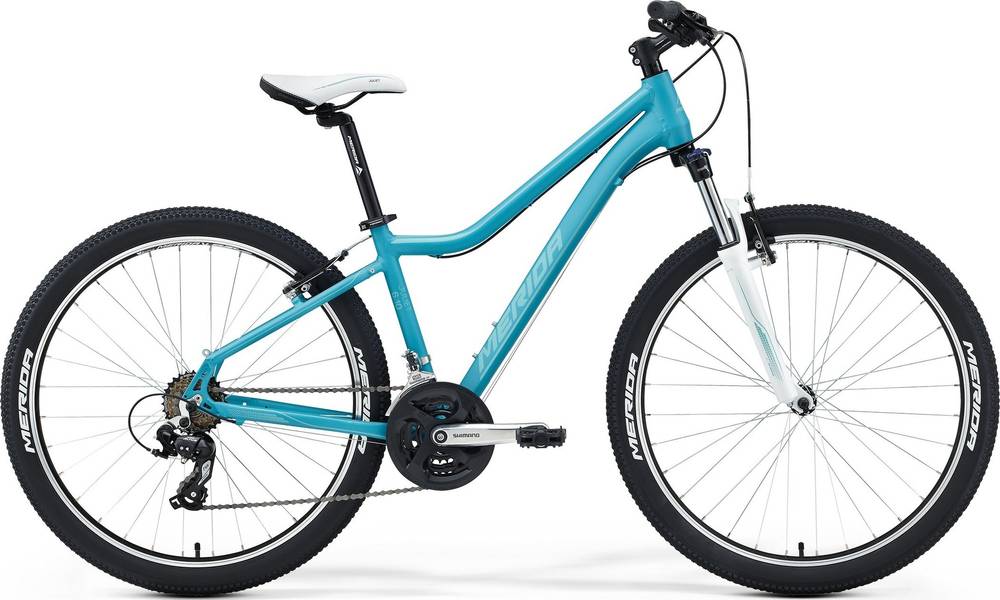

JULIET 6. 10-V belongs to the Merida Juliet model. Merida launched 74 bikes of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
considerably heavier than average, JULIET 6. 10-V has a weight of 14.2 kg (31.31 lbs). To sum up, it’s 14.52% heavier than the average weight of Crosscountry bikes.
JULIET 6. 10-V components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
The wheels on JULIET 6. 10-V are the 26″ aluminum type. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida JULIET 6. 10-V has Rim brakes installed. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, you could spend a little extra and get a bike that has hydraulic brakes.
