Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Shimano -
Suspension Hardtail -
Drivetrain 3 × 7 -
Brakes Rim
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET SPEED 6.
Suspension Fork
Suntour XCT 100mm travel
Drivetrain
Rear Derailleur
Shimano Tourney / Altus, 21 speed
Front Derailleur
Shimano Tourney / Altus, 21 speed
Shift Levers
Shimano EF500 21 speed EZ-fire shifters
Cassette
Shimano TZ21, 7 speed, 14-28 teeth
Crank
Shimano TY301 42-34-24 with chainguard
Chain
KMC Z50
Wheels
Front Hub
Alloy, 32 hole, quick release
Rear Hub
Alloy, 32 hole, quick release
Rims
MERIDA aluminium, 32 hole for V-brakes
Spokes
Steel UCP
Tires
MERIDA K1047 26 * 1.95" wire bead
Brakes
Brakes
Shimano EF500 levers with Promax V-brakes
Brake Levers
Shimano EF500
Cockpit
Handlebar
MERIDA Steel 620mm wide 30mm rise
Headset
MERIDA 44 PSE
Seat
Saddle
Female specific Juliet Sport
Seatpost
MERIDA Speed 27.2mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.64 mm | 1.64 mm | 1.66 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm |
| Front Center | 609 mm | 619 mm | 619 mm |
| Rake | 38 mm | 38 mm | 38 mm |
| Trail | 88 mm | 88 mm | 84 mm |
| Stack | 588 mm | 598 mm | 609 mm |
| Reach | 358 mm | 365 mm | 366 mm |
| Top Tube Length | 534 mm | 544 mm | 554 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1022 mm | 1032 mm | 1032 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm |
| Standover Height | 583 mm | 615 mm | 668 mm |
| Wheels | 26" | 26" | 26" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model

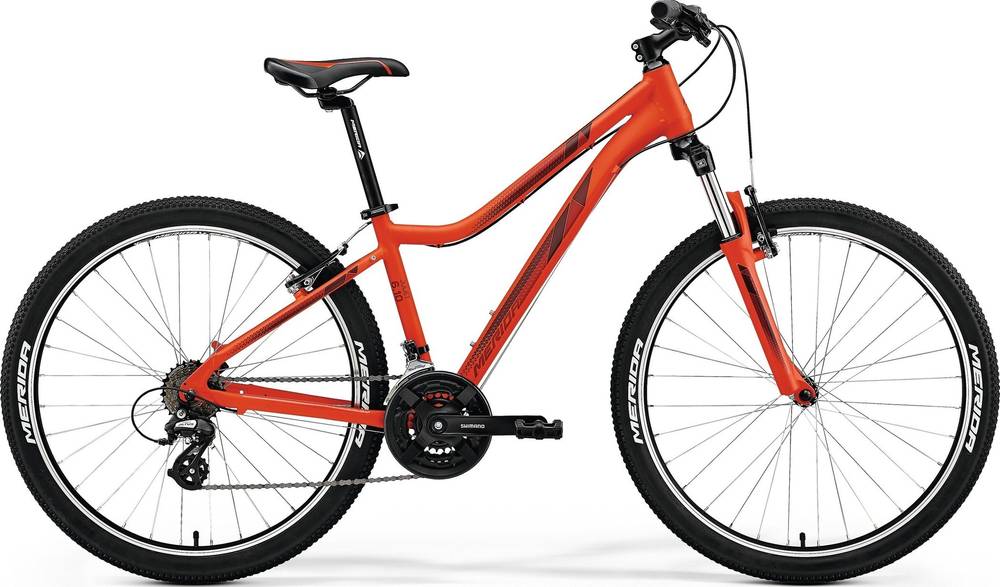

JULIET 6. 10-V completes the Merida Juliet model. Merida released 74 bikes variations of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 14.2 kg (31.31 lbs), Merida bike is considerably heavier than average. In short, the average Crosscountry bike weight is 14.52% lower than this one.
JULIET 6. 10-V components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The JULIET 6. 10-V 2018 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
Sizes
JULIET 6. 10-V comes in 3 sizes, that range from 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, you can easily find one that suits you.
