Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET SPEED 6.
Suspension Fork
Suntour SR 26 XCT-HLO 100
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano M190
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS8 11-32
Crank
Shimano M131 42-34-24 CG (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
8s
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Juliet D
Spokes
ucp steel+white
Tires
MERIDA 26 1.95
Brakes
Brakes
Tektro Auriga WS hydraulic 160
Cockpit
Handlebar
MERIDA Speed R30 620
Headset
FSA No.10
Seat
Saddle
Juliet Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.64 mm | 1.66 mm | 1.66 mm | 1.65 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 609 mm | 619 mm | 619 mm | 629 mm | 640 mm |
| Rake | 39 mm | 39 mm | 38 mm | 38 mm | 44 mm |
| Trail | 87 mm | 87 mm | 84 mm | 84 mm | 75 mm |
| Stack | 588 mm | 598 mm | 609 mm | 619 mm | 628 mm |
| Reach | 357 mm | 364 mm | 366 mm | 373 mm | 380 mm |
| Top Tube Length | 534 mm | 544 mm | 554 mm | 564 mm | 574 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 155 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1022 mm | 1032 mm | 1032 mm | 1042 mm | 1053 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 638 mm | 723 mm | 753 mm | 782 mm | mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

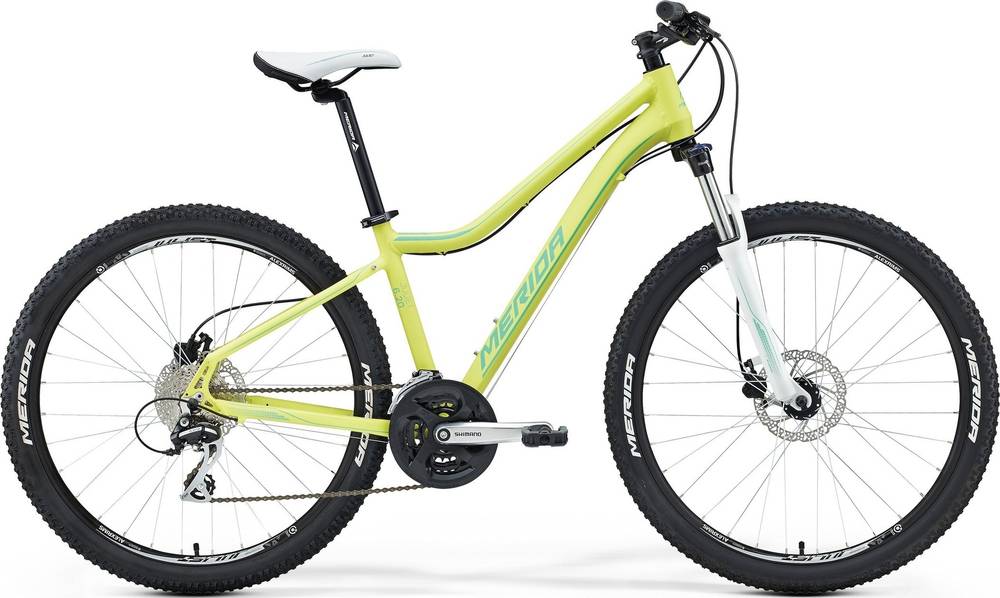

JULIET 6. 20-D belongs to the Merida Juliet model. There are 74 bikes that carry this model name. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
JULIET 6. 20-D weighs 14.5 kg (31.97 lbs) and is much heavier than the average. In short, the average Crosscountry bike weight is 16.94% lower than this one.
JULIET 6. 20-D components
Fork
Merida JULIET 6. 20-D 2016 bike is equipped with the SunTour XCT fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Merida JULIET 6. 20-D 2016, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The JULIET 6. 20-D has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
