Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 26" -
Fork SunTour XCT -
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET SPEED 6.
Suspension Fork
SR 26 XCT-HLO 100
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano M190
Shift Levers
Shimano EZ fire / Shimano EZ fire 8
Cassette
Sunrace CS8 11-32
Crank
Shimano M131 42-34-24 CG
Chain
Chain 8s
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Juliet D
Spokes
ucp steel+white
Tires
MERIDA 26 1.95
Brakes
Brakes
Promax MTD Mechanical 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 620
Headset
EGG steel-B
Seat
Saddle
Juliet Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.64 mm | 1.66 mm | 1.66 mm | 1.65 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 609 mm | 619 mm | 619 mm | 629 mm | 640 mm |
| Rake | 39 mm | 39 mm | 38 mm | 38 mm | 44 mm |
| Trail | 87 mm | 87 mm | 84 mm | 84 mm | 75 mm |
| Stack | 588 mm | 598 mm | 609 mm | 619 mm | 628 mm |
| Reach | 357 mm | 364 mm | 366 mm | 373 mm | 380 mm |
| Top Tube Length | 534 mm | 544 mm | 554 mm | 564 mm | 574 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 155 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1022 mm | 1032 mm | 1032 mm | 1042 mm | 1053 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 638 mm | 723 mm | 753 mm | 782 mm | mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

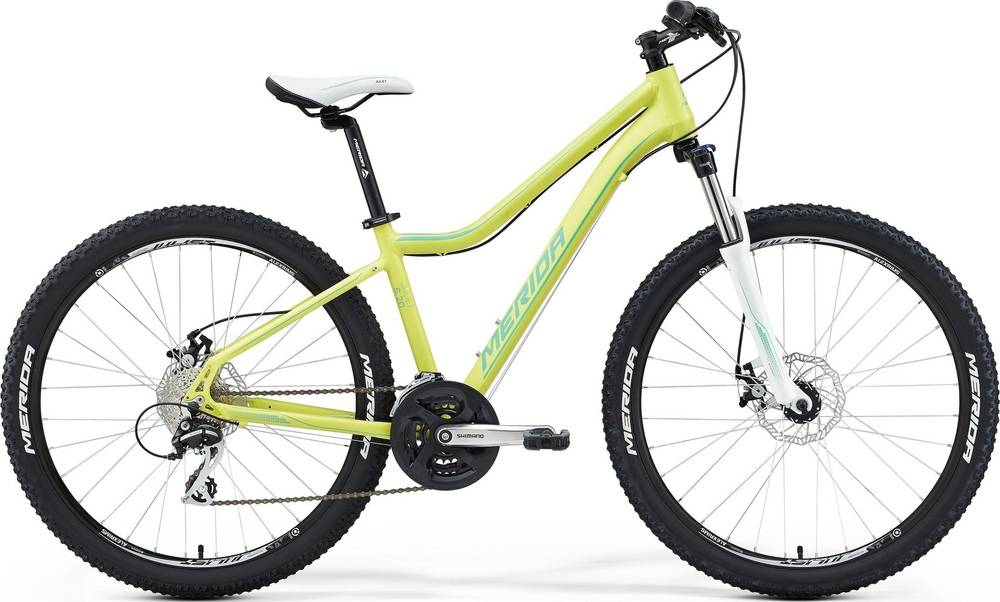

JULIET 6. 20-MD is part of the Merida Juliet model. 74 bikes variations carry this model name so far. Check out the entire range from 2016 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida JULIET 6. 20-MD it’s weighing 14.2 kg (31.31 lbs). At this weight, is considerably heavier than average. In short, the average Crosscountry bike weight is 14.52% lower than this one.
Overview of components
Fork
Merida JULIET 6. 20-MD 2016 bike is equipped with the SunTour XCT fork, and has mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
The wheels on JULIET 6. 20-MD are the 26″ aluminum type. Being a little smaller, these wheels will fit both small and tall riders. However, they provide less traction than 29″ wheels do.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida JULIET 6. 20-MD is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
