Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 26" -
Fork SunTour XCT -
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET SPEED-V
Suspension Fork
SR 26 XCT-HLO 100
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano M190
Shift Levers
Shimano EZ fire / Shimano EZ fire 8
Cassette
Sunrace CS8 11-32
Crank
Shimano M131 42-34-24 CG
Chain
Chain 8s
Wheels
Front Hub
OV alloy / OV Cassette
Rear Hub
OV alloy / OV Cassette
Rims
MERIDA Juliet V
Spokes
ucp steel+white
Tires
MERIDA 26 1.95
Brakes
Brakes
V-Brake Linear
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 620
Headset
EGG steel-B
Seat
Saddle
Juliet Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.65 mm | 1.64 mm | 1.66 mm | 1.66 mm | 1.65 mm |
| Bottom Bracket Height | 288 mm | 288 mm | 288 mm | 288 mm | 288 mm |
| Front Center | 609 mm | 619 mm | 619 mm | 629 mm | 640 mm |
| Rake | 39 mm | 39 mm | 38 mm | 38 mm | 44 mm |
| Trail | 87 mm | 87 mm | 84 mm | 84 mm | 75 mm |
| Stack | 588 mm | 598 mm | 609 mm | 619 mm | 628 mm |
| Reach | 357 mm | 364 mm | 366 mm | 373 mm | 380 mm |
| Top Tube Length | 534 mm | 544 mm | 554 mm | 564 mm | 574 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70.5 ° |
| Head Tube Length | 115 mm | 125 mm | 135 mm | 145 mm | 155 mm |
| Chainstay Length | 419 mm | 419 mm | 419 mm | 419 mm | 419 mm |
| Wheelbase | 1022 mm | 1032 mm | 1032 mm | 1042 mm | 1053 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 638 mm | 723 mm | 753 mm | 782 mm | mm |
| Wheels | 26" | 26" | 26" | 26" | 26" |
About this model

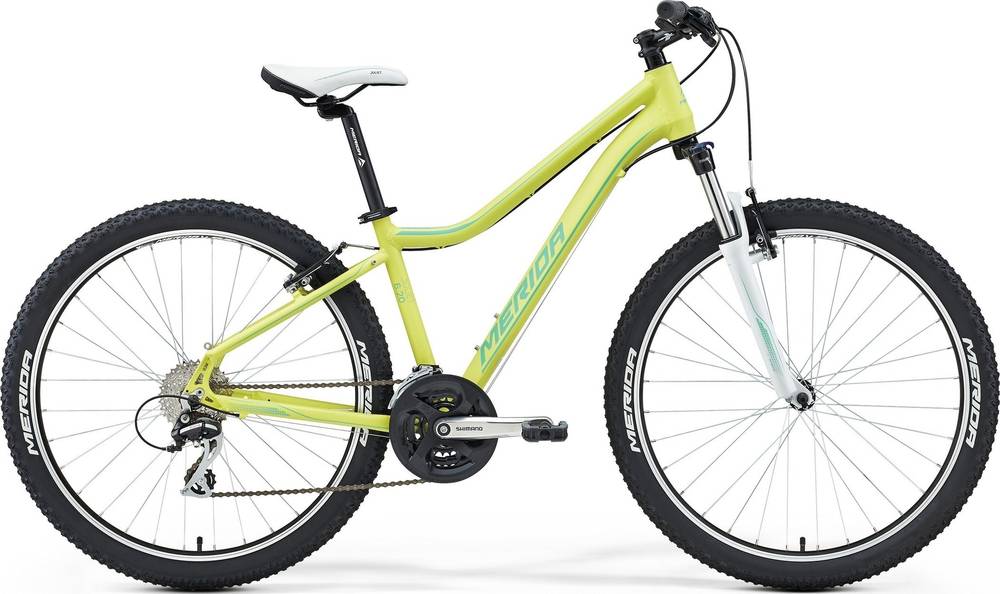

JULIET 6. 20-V is part of the Merida Juliet model. Merida released 74 bikes variations of this model so far. Take a sneak peek at all Merida Juliet bikes models from 2016, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14 kg (30.86 lbs), the JULIET 6. 20-V model is considerably heavier than average. In other words, this model is 12.9% heavier than the average Crosscountry bike.
Overview of components
Fork
The JULIET 6. 20-V comes factory-installed with the SunTour XCT fork. This has a travel range of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Merida JULIET 6. 20-V 2016, has a 26″ aluminum model. The 26″ wheels are lighter than the 27.5 or 29″ wheels. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The JULIET 6. 20-V has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
