Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset Alivio, Sora -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET TFS
Suspension Fork
Suntour XCM HLO, Coil, 100mm suspension travel, Lockout
Drivetrain
Rear Derailleur
Shimano Alivio
Front Derailleur
Shimano M3000
Shift Levers
Shimano Altus
Cassette
Shimano HG200, 11-34 teeth, 9 speed
Crank
Shimano MT100, 40-30-22 teeth
Chain
KMC M99
Wheels
Front Hub
Shimano TX505, 100x9mm width, 32 spoke holes, Centerlock / Shimano TX505, 135x9mm width, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width, 32 spoke holes, Centerlock / Shimano TX505, 135x9mm width, 32 spoke holes, Centerlock
Rims
MERIDA Comp CC, 20mm inner width
Spokes
Black stainless
Tires
Maxxis Ikon, 27.5x2.2", fold
Brakes
Brakes
Shimano MT-200
Brake Levers
Shimano MT-200
Cockpit
Handlebar
MERIDA Comp CC, 640mm width, 25mm rise
Headset
MERIDA M44PSE neck, 2191026757
Seat
Saddle
MERIDA Juliet Sport V
Seatpost
MERIDA Comp CC, 27.2mm diameter, 12mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.55 mm | 1.52 mm | 1.51 mm |
| Bottom Bracket Height | 292 mm | 292 mm | 292 mm | 292 mm |
| Front Center | 629 mm | 640 mm | 650 | 661 mm |
| Rake | 38 mm | 39 mm | 39 mm | 39 mm |
| Trail | 92 mm | 91 mm | 88 mm | 88 mm |
| Stack | 594 mm | 599 mm | 606 mm | 615 mm |
| Reach | 378 mm | 386 mm | 399 mm | 407 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1045 mm | 1056 mm | 1066 mm | 1077 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 597 mm | 629 mm | 680 mm | 709 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

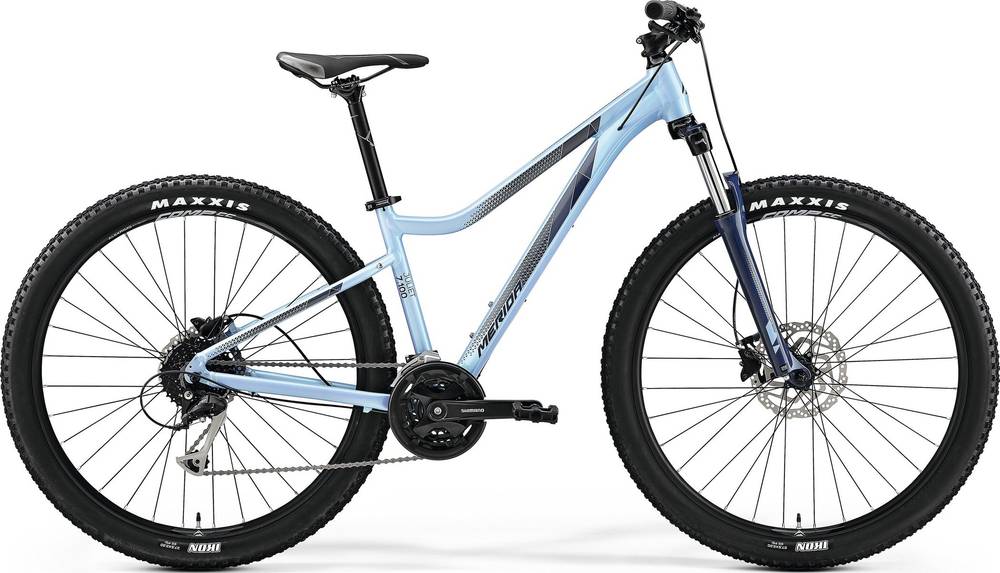

JULIET 7. 100 completes the Merida Juliet model. There are 74 bikes that carry this model name. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 12.87 kg (28.37 lbs), Merida bike is slightly heavier than average. To sum up, it’s 3.79% heavier than the average weight of Crosscountry bikes.
JULIET 7. 100 components
Fork
The JULIET 7. 100 comes factory-installed with the SunTour XCM HLO fork. This has a travel range of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When it comes to wheels, the JULIET 7. 100 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida JULIET 7. 100 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
JULIET 7. 100 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
