Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Fork SunTour XCM HLO -
Groupset Acera, Shimano -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET SPEED 7.
Suspension Fork
SR 27 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano TY 8s 42
Shift Levers
Shimano Altus rapidfire / Shimano Altus rapidfire 8
Cassette
Sunrace CS8 11-32
Crank
Shimano TY301 42-34-24 CG
Chain
Chain 8s
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Big 7 D
Spokes
stainless silver
Tires
MERIDA 27 2.1
Brakes
Brakes
Tektro MA-lady hydraulic 160
Brake Levers
Tektro M286
Cockpit
Handlebar
MERIDA Speed R30 640
Headset
EGG steel-B
Seat
Saddle
Juliet Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.59 mm | 1.58 mm | 1.56 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 617 mm | 628 mm | 638 mm | 649 mm | 659 mm |
| Rake | 39 mm | 40 mm | 39 mm | 39 mm | 39 mm |
| Trail | 91 mm | 90 mm | 88 mm | 88 mm | 88 mm |
| Stack | 596 mm | 601 mm | 612 mm | 622 mm | 626 mm |
| Reach | 366 mm | 374 mm | 386 mm | 393 mm | 402 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm | 589 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1033 mm | 1044 mm | 1054 mm | 1065 mm | 1075 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 655 mm | 684 mm | 737 mm | 767 mm | 795 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
Model Overview

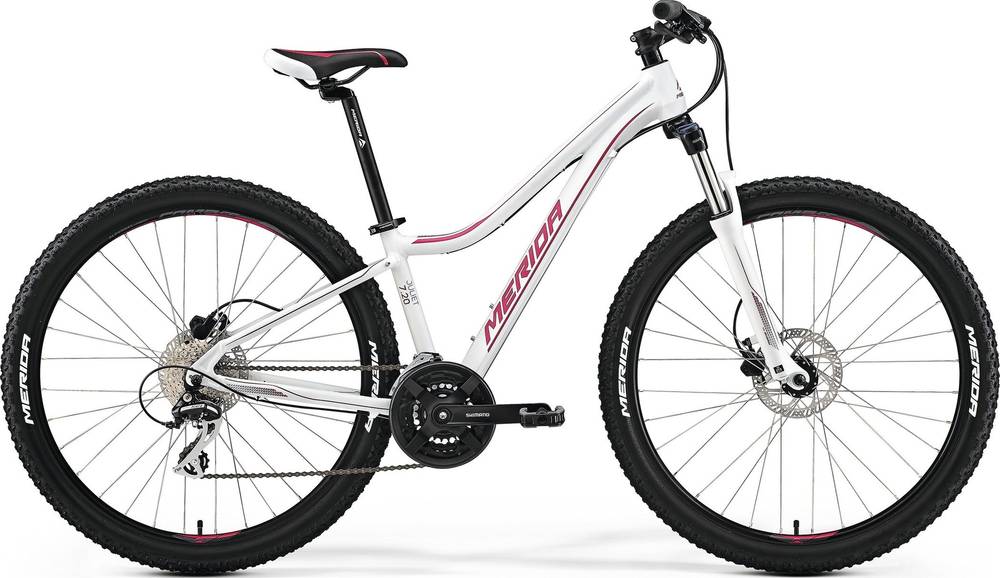

JULIET 7. 20-D is a Merida Juliet model. Merida released 74 bikes variations of this model so far. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, JULIET 7. 20-D has a weight of 14.7 kg (32.41 lbs). In other words, this model is 18.55% heavier than the average Crosscountry bike.
JULIET 7. 20-D components
Fork
The SunTour XCM HLO is included from the factory. It has a travel distance of mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
The JULIET 7. 20-D 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida JULIET 7. 20-D has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
