Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork SunTour XCR Air
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET TFS
Suspension Fork
Suntour XCR LOR, Air, 100mm suspension travel, Lockout
Drivetrain
Rear Derailleur
Shimano XT Shadow
Front Derailleur
Shimano Deore
Shift Levers
Shimano Deore / Shimano Deore
Cassette
Shimano HG50, 11-36 teeth, 10 speed
Crank
FSA Alfa Drive, 36-22 teeth
Chain
KMC X10
Wheels
Front Hub
Shimano TX505, 100x9mm width, 32 spoke holes, Centerlock / Shimano TX505, 135x9mm width, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width, 32 spoke holes, Centerlock / Shimano TX505, 135x9mm width, 32 spoke holes, Centerlock
Rims
MERIDA Comp CC, 20mm inner width
Spokes
Black stainless
Tires
Maxxis Ikon, 27.5x2.2", fold
Brakes
Brakes
Shimano MT-200
Brake Levers
Shimano MT-200
Cockpit
Handlebar
MERIDA Comp CC, 640mm width, 25mm rise
Headset
MERIDA M44PSE neck, 2191026757
Seat
Saddle
MERIDA Juliet Sport V
Seatpost
MERIDA Comp CC, 27.2mm diameter, 12mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.55 mm | 1.52 mm | 1.51 mm |
| Bottom Bracket Height | 292 mm | 292 mm | 292 mm | 292 mm |
| Front Center | 629 mm | 640 mm | 650 | 661 mm |
| Rake | 38 mm | 39 mm | 39 mm | 39 mm |
| Trail | 92 mm | 91 mm | 88 mm | 88 mm |
| Stack | 594 mm | 599 mm | 606 mm | 615 mm |
| Reach | 378 mm | 386 mm | 399 mm | 407 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1045 mm | 1056 mm | 1066 mm | 1077 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 597 mm | 629 mm | 680 mm | 709 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

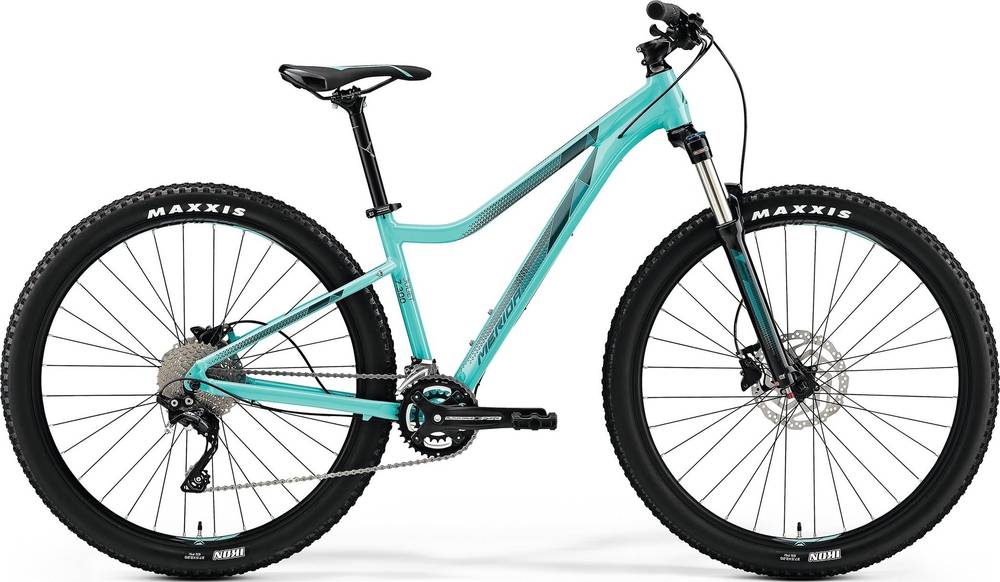

JULIET 7. 300 is part of the Merida Juliet model. There are 74 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 12.36 kg (27.25 lbs), the JULIET 7. 300 model is slightly lighter than average. In conclusion, the average Crosscountry bike weighs 0.32% more than JULIET 7. 300.
Overview of components
Fork
The SunTour XCR Air is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the JULIET 7. 300 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida JULIET 7. 300 is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
JULIET 7. 300 comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, finding one for you shouldn’t be a problem.
