Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Fork SunTour XCM HLO -
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET SPEED 7.
Suspension Fork
SR 27 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 44-32-22 CG
Chain
Chain 9S
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Big 7 D
Spokes
stainless silver
Tires
MERIDA 27 2.1
Brakes
Brakes
Tektro MA-lady hydraulic 160
Brake Levers
Tektro M286
Cockpit
Handlebar
MERIDA Speed R30 640
Headset
EGG steel-B
Seat
Saddle
Juliet Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.59 mm | 1.58 mm | 1.56 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 617 mm | 628 mm | 638 mm | 649 mm | 659 mm |
| Rake | 39 mm | 40 mm | 39 mm | 39 mm | 39 mm |
| Trail | 91 mm | 90 mm | 88 mm | 88 mm | 88 mm |
| Stack | 596 mm | 601 mm | 612 mm | 622 mm | 626 mm |
| Reach | 366 mm | 374 mm | 386 mm | 393 mm | 402 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm | 589 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1033 mm | 1044 mm | 1054 mm | 1065 mm | 1075 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 655 mm | 684 mm | 737 mm | 767 mm | 795 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |

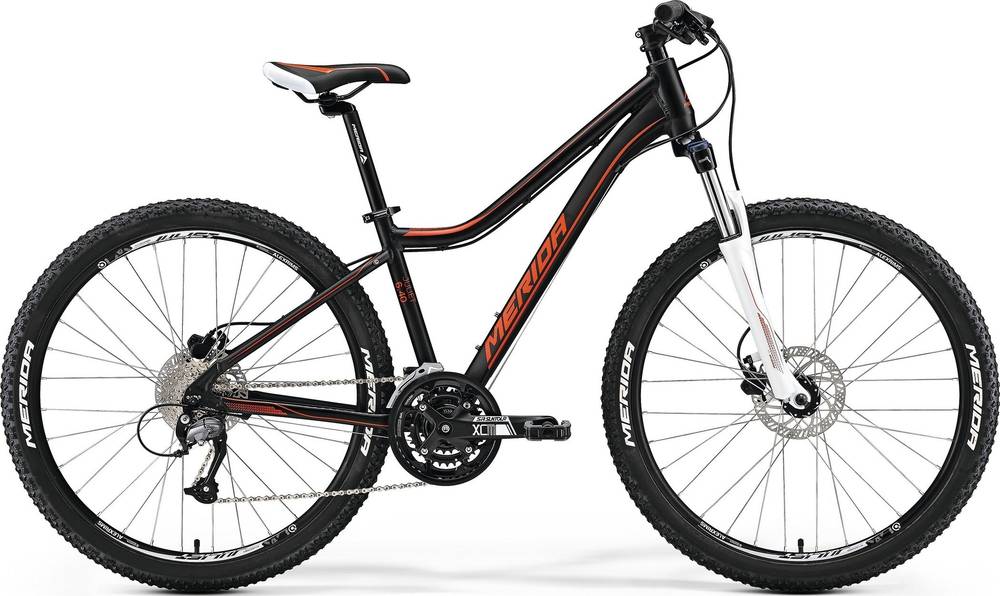

About this model
JULIET 7. 40-D is part of the Merida Juliet model. There are 74 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida JULIET 7. 40-D it’s weighing 14.8 kg (32.63 lbs). At this weight, is much heavier than average. In other words, this model is 19.35% heavier than the average Crosscountry bike.
Overview of components
Fork
The SunTour XCM HLO is included from the factory. It has a travel distance of mm. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The JULIET 7. 40-D 2017 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida JULIET 7. 40-D has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
