Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Fork SunTour XCM HLO -
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET SPEED 7.
Suspension Fork
SR 27 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus ST rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 44-32-22 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC M99
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Big 7 comp D
Tires
MERIDA 27 2.1
Brakes
Brakes
Promax MTD Mechanical 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA Speed R30 640
Headset
Conoid steel
Seat
Saddle
Juliet Sport
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.66 mm | 1.65 mm | 1.68 mm | 1.67 mm | 1.67 mm |
| Bottom Bracket Height | 290 mm | 290 mm | 290 mm | 290 mm | 290 mm |
| Front Center | 612 mm | 622 mm | 622 mm | 632 mm | 643 mm |
| Rake | 43 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 80 mm | 81 mm | 78 mm | 78 mm | 78 mm |
| Stack | 606 mm | 615 mm | 627 mm | 636 mm | 646 mm |
| Reach | 364 mm | 372 mm | 373 mm | 380 mm | 387 mm |
| Top Tube Length | 534 mm | 544 mm | 554 mm | 564 mm | 574 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 105 mm | 115 mm | 125 mm | 135 mm | 145 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1028 mm | 1038 mm | 1038 mm | 1048 mm | 1059 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 671 mm | 703 mm | 743 mm | 776 mm | 805 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

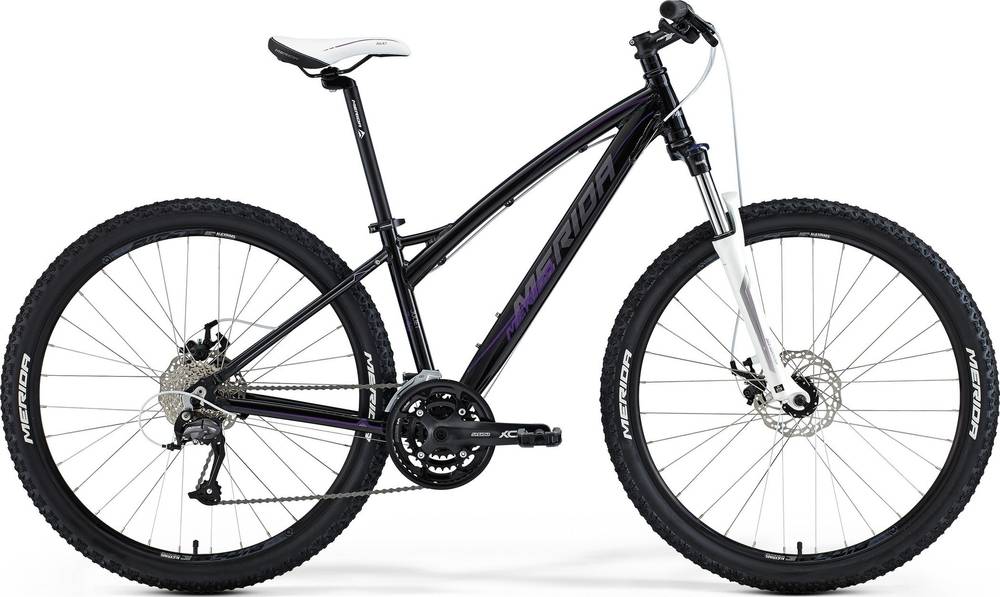

Juliet 7. 40-MD is a Merida Juliet model. Merida launched 74 bikes of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Overview of components
Fork
Merida Juliet 7. 40-MD 2015 bike is equipped with the SunTour XCM HLO fork, and has mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When leaving the production line, the Juliet 7. 40-MD model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
