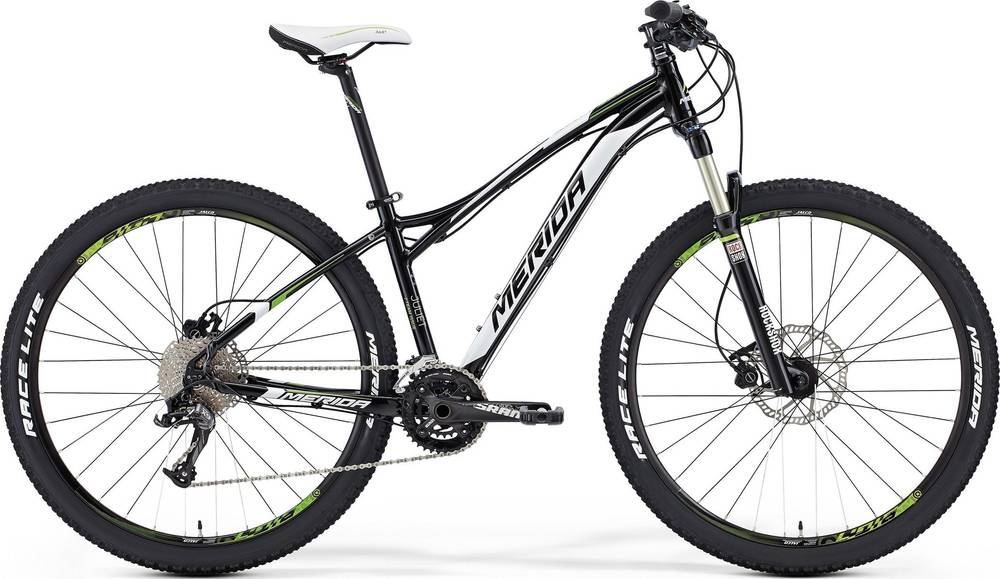

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 27.5" -
Travel Front 100mm -
Groupset X9, X5 -
Suspension Hardtail -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET LITE
Suspension Fork
Rock Shox 30Gold TK27 100 poploc
Drivetrain
Rear Derailleur
SRAM X9 carbon
Front Derailleur
SRAM X5 double
Shift Levers
SRAM X7 trigger
Cassette
Shimano CS-HG50-10 11-36
Crank
SRAM S1000 38-24
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Bearing Disc / Bearing Disc Cassette
Rear Hub
Bearing Disc / Bearing Disc Cassette
Rims
MERIDA Big 7 comp D
Tires
MERIDA RACE lite 27.5 2.1 fold
Brakes
Brakes
Tektro Gemini hydraulic 180 lady / Tektro Gemini hydraulic 160 lady
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 660 R12 lady
Headset
Conoid semi neck
Seat
Saddle
Juliet Sport
Seatpost
MERIDA pro H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.56 mm | 1.55 mm | 1.54 mm | 1.54 mm |
| Bottom Bracket Height | 302 mm | 302 mm | 302 mm | 302 mm | 302 mm |
| Front Center | 613 mm | 623 mm | 627 mm | 636 mm | 647 mm |
| Rake | 43 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 80 mm | 81 mm | 78 mm | 78 mm | 78 mm |
| Stack | 584 mm | 589 mm | 596 mm | 605 mm | 615 mm |
| Reach | 369 mm | 378 mm | 385 mm | 392 mm | 399 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm | 589 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1031 mm | 1041 mm | 1045 mm | 1055 mm | 1066 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 617 mm | 651 mm | 693 mm | 725 mm | 753 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model
Juliet 7. Team Issue belongs to the Merida Juliet model. Merida launched 74 bikes of this model so far. You can easily view all of the Merida Juliet bikes models from 2015, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Juliet 7. Team Issue components
Wheels
As for the wheels, Merida Juliet 7. Team Issue 2015, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Juliet 7. Team Issue comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
