Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Groupset XT -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
JULIET TFS
Suspension Fork
Rock Shox 30Gold TK27 100 remote
Drivetrain
Rear Derailleur
Shimano XT Shadow
Front Derailleur
Shimano XT triple
Shift Levers
Shimano XT-i
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano XT 40-30-22 (BSA)
Bottom Bracket
BSA, 73mm, threaded
Chain
KMC X10
Wheels
Front Hub
Shimano M4050 cen
Rear Hub
Shimano M4050 cen
Rims
MERIDA Big 7 Pro D
Spokes
Black+White stainless
Tires
Maxxis Ikon 27.5 2.1 fold
Brakes
Brakes
Shimano M506 180 cen / Shimano M506 160 cen
Cockpit
Handlebar
MERIDA pro OS 660 R12 lady
Headset
FSA No.11P
Seat
Saddle
Juliet Sport Pro
Seatpost
MERIDA pro H SB15 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 13.5" | 15" | 17" | 18.5" | 20" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.57 mm | 1.55 mm | 1.52 mm | 1.51 mm | 1.51 mm |
| Bottom Bracket Height | 292 mm | 292 mm | 292 mm | 292 mm | 292 mm |
| Front Center | 629 mm | 640 mm | 650 | 661 mm | 672 mm |
| Rake | 38 mm | 39 mm | 39 mm | 39 mm | 40 mm |
| Trail | 92 mm | 91 mm | 88 mm | 88 mm | 87 mm |
| Stack | 594 mm | 599 mm | 606 mm | 615 mm | 624 mm |
| Reach | 378 mm | 386 mm | 399 mm | 407 mm | 414 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm | 589 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm | 508 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1045 mm | 1056 mm | 1066 mm | 1077 mm | 1088 mm |
| Bottom Bracket Drop | 63 mm | 63 mm | 63 mm | 63 mm | 63 mm |
| Standover Height | 597 mm | 629 mm | 680 mm | 709 mm | 738 mm |
| Wheels | 27" | 27" | 27" | 27" | 27" |
About this model

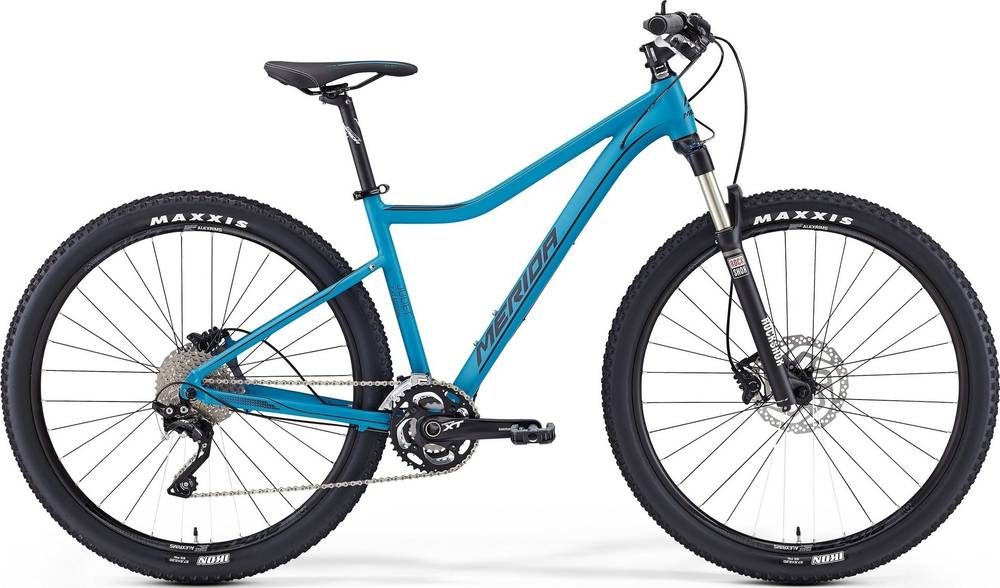

JULIET 7. XT-EDITION belongs to the Merida Juliet model. Merida launched 74 bikes of this model so far. Take a sneak peek at all Merida Juliet bikes models from 2016, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, JULIET 7. XT-EDITION has a weight of 12.3 kg (27.12 lbs). In conclusion, the average Crosscountry bike weighs 0.81% more than JULIET 7. XT-EDITION.
Overview of components
Wheels
As for the wheels, Merida JULIET 7. XT-EDITION 2016, has a 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida JULIET 7. XT-EDITION is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
