Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset SLX, Shimano -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Matts TFS-D
Suspension Fork
SR Suntour 27 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano SLX-9
Front Derailleur
Shimano M390
Shift Levers
Shimano Acera-X Rapidfire
Cassette
Shimano CS-HG20-9 11-34
Crank
Shimano M430 Octa 44-32-22 CG
Bottom Bracket
Shimano Octalink
Chain
KMC Z99 9s
Wheels
Front Hub
Disc-F Alloy / Shimano M475 Disc
Rear Hub
Disc-F Alloy / Shimano M475 Disc
Rims
MERIDA Matts Comp D
Spokes
black stainless
Tires
MERIDA Race 2.1
Brakes
Brakes
Tektro HDC Hydraulic Disc 180 mm / Tektro HDC Hydraulic Disc 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA Comp OS 640 R25
Headset
EGG Steel Neck
Seat
Saddle
MERIDA Pro SI
Seatpost
Merida Comp SB12 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 19" | 20" | 22" | 24" |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.45 mm | 1.43 mm | 1.45 mm | 1.44 mm | 1.48 mm |
| Stack | 586 mm | 590 mm | 600 mm | 604 mm | 609 mm | 619 mm | 633 mm |
| Reach | 396 mm | 398 mm | 415 mm | 421 mm | 421 mm | 429 mm | 427 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 599 mm | 607 mm | 617 mm | 626 mm |
| Seat Tube Angle | 75 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 368 mm | 407 mm | 457 mm | 483 mm | 508 mm | 559 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 140 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Wheels | 24" | 24" | 24" | 24" | 24" | 24" | 24" |
About this model

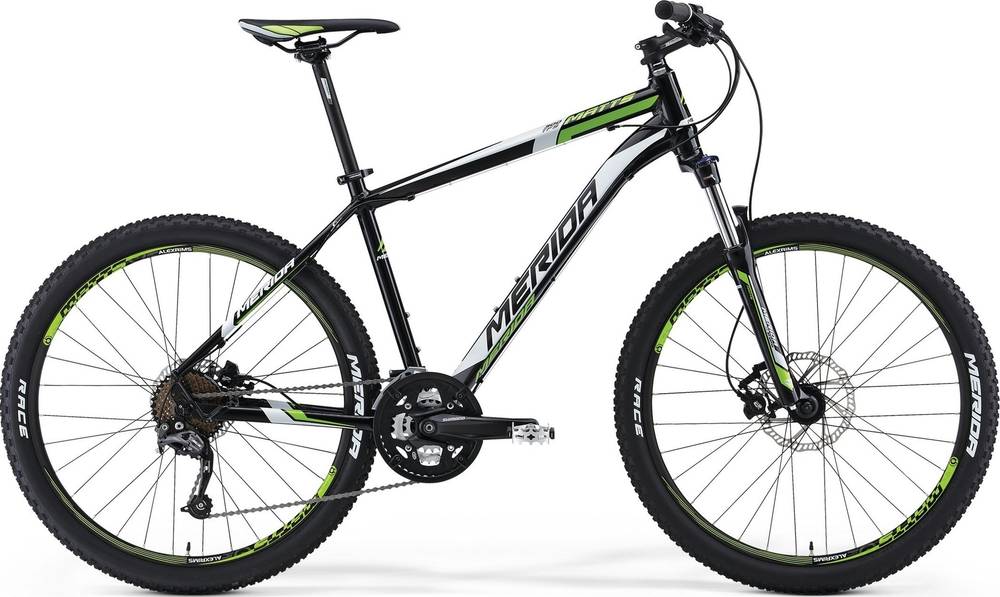

Matts 300 is a Merida Matts model. 172 bikes variations carry this model name so far. You can get a glimpse at all models from 2014, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Youth bikes average price
According to our math, the average price for a trustworthy Youth bike is 278$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Youth bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Youth bikes average weight
Youth bikes weigh an average of 11.74 kg (25.88 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Matts 300 weighs 13.8 kg (30.42 lbs) and is much heavier than the average. In conclusion, the average Youth bike weighs 17.55% less than Matts 300.
Overview of components
Fork
The SunTour XCM HLO is included from the factory. It has a travel distance of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
As for the wheels, Merida Matts 300 2014, has a 24″ aluminum model. This wheel size is used on bike models like BMX, children, or folding bikes. In conclusion, they are great for flat ground or very easy trails.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Matts 300 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
