Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MATTS DT
Suspension Fork
Suntour SR 26 XCT-HLO 100
Drivetrain
Rear Derailleur
Shimano Acera-X 8
Front Derailleur
Shimano M190
Shift Levers
Shimano Altus rapidfire 3 / Shimano Altus rapidfire 8
Cassette
Sunrace CS8 11-32
Crank
Shimano M131 42-34-24 CG (BSA)
Bottom Bracket
BSA, threaded
Chain
8s
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Matts D
Spokes
ucp steel
Tires
MERIDA 26 2.1
Brakes
Brakes
Tektro Auriga hydraulic 160
Cockpit
Handlebar
MERIDA comp OS 660 R15
Headset
FSA No.10
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" | 22" | 24" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.41 mm |
| Front Center | 626 mm | 630 mm | 651 mm | 661 mm | 671 mm | 676 mm |
| Rake | 42 mm | 38 mm | 38 mm | 39 mm | 38 mm | 38 mm |
| Stack | 567 mm | 571 mm | 581 mm | 590 mm | 600 mm | 614 mm |
| Reach | 396 mm | 403 mm | 421 mm | 427 mm | 434 mm | 434 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 607 mm | 617 mm | 627 mm |
| Seat Tube Angle | 75 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 368 mm | 406 mm | 457 mm | 508 mm | 555 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1045 mm | 1049 mm | 1070 mm | 1080 mm | 1090 mm | 1095 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 680 mm | 708 mm | 748 mm | 786 mm | 825 mm | 863 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

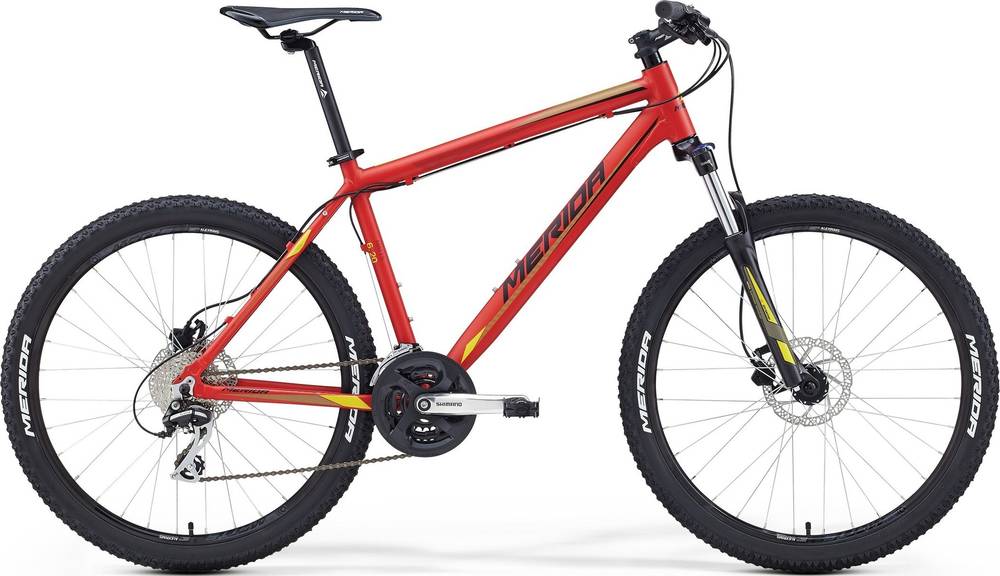

MATTS 6. 20-D is part of the Merida Matts model. 172 bikes variations carry this model name so far. Take a sneak peek at all Merida Matts bikes models from 2016, by clicking here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Youth bikes
If you want an acceptable Youth bike you should know that the average price is 278$. However, you could also get a good Youth bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Youth bikes
Youth bikes have an average weight of 11.74 kg (25.88 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.95 kg (30.75 lbs), Merida bike is much heavier than average. In short, the average Youth bike weight is 18.82% lower than this one.
MATTS 6. 20-D components
Fork
The fork installed on this bike is the SunTour XCT model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on MATTS 6. 20-D are the 26″ aluminum type. These wheels give you great handling over your bike. However, they provide less traction than 29″ wheels do.
Brakes
When you want to stop the bike in time, the brakes are vital. The MATTS 6. 20-D has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
