Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Travel Front 100mm -
Fork SunTour XCT
-
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MATTS SPEED
Suspension Fork
Suntour SR 26 XCT-HLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano Altus
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 44-32-22 CG (BSA)
Bottom Bracket
BSA, threaded
Chain
KMC X9
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Matts D
Spokes
stainless silver
Tires
MERIDA 26 2.1
Brakes
Brakes
Tektro Auriga hydraulic 160
Cockpit
Handlebar
MERIDA comp OS 660 R15
Headset
FSA No.10
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" | 22" | 24" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.41 mm |
| Front Center | 626 mm | 630 mm | 651 mm | 661 mm | 671 mm | 676 mm |
| Rake | 42 mm | 38 mm | 38 mm | 39 mm | 38 mm | 38 mm |
| Stack | 567 mm | 571 mm | 581 mm | 590 mm | 600 mm | 614 mm |
| Reach | 396 mm | 403 mm | 421 mm | 427 mm | 434 mm | 434 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 607 mm | 617 mm | 627 mm |
| Seat Tube Angle | 75 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 368 mm | 407 mm | 457 mm | 508 mm | 559 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1045 mm | 1049 mm | 1070 mm | 1080 mm | 1090 mm | 1095 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 680 mm | 708 mm | 748 mm | 786 mm | 825 mm | 863 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
Model Overview

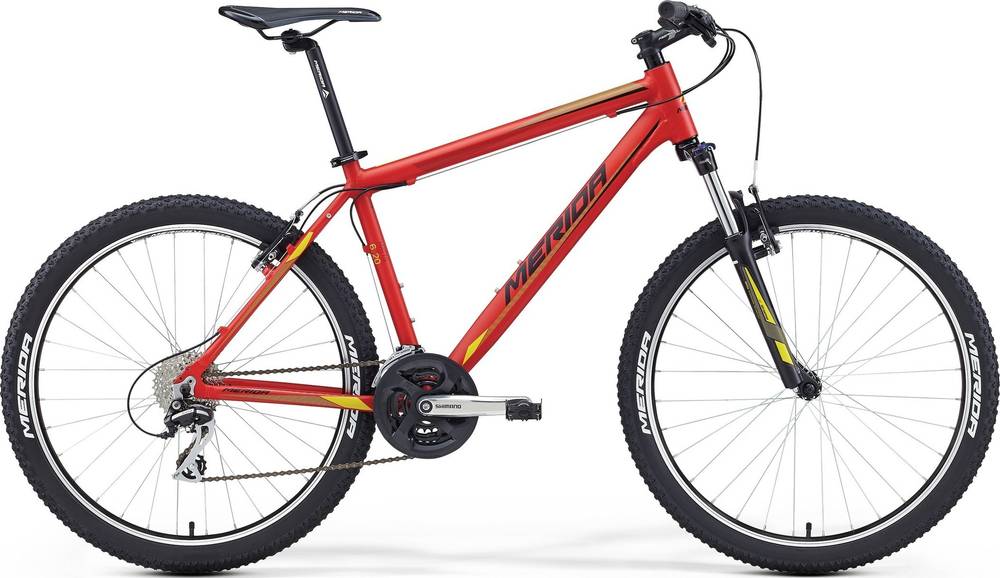

MATTS 6. 40-D is part of the Merida Matts model. Merida launched 172 bikes of this model so far. You can get a glimpse at all models from 2016, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Youth bikes
According to our calculations, the average cost of a Youth bike that is reliable is 278$. However, you could also get a good Youth bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Youth bikes average weight
Youth bikes have an average weight of 11.74 kg (25.88 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
much heavier than average, MATTS 6. 40-D has a weight of 14.75 kg (32.52 lbs). In other words, this model is 25.64% heavier than the average Youth bike.
Overview of components
Fork
The SunTour XCT is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
The MATTS 6. 40-D 2016 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The MATTS 6. 40-D has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
