Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 26" -
Fork SunTour XCT -
Groupset Altus, Suntour SR -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MATTS SPEED
Suspension Fork
SR 26 XCT-HLO 100
Drivetrain
Rear Derailleur
Shimano Altus 9
Front Derailleur
Shimano M370
Shift Levers
Shimano Altus ST rapidfire
Cassette
Sunrace CS-9S 11-32
Crank
SR XCM 44-32-22 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC M99
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Matts D
Tires
MERIDA 26 2.1
Brakes
Brakes
Promax MTD Mechanical 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA comp OS 660 R25
Headset
EGG steel-B
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA speed 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" | 22" | 24" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.42 mm | 1.38 mm | 1.38 mm | 1.38 mm | 1.41 mm |
| Front Center | 626 mm | 630 mm | 651 mm | 661 mm | 671 mm | 676 mm |
| Rake | 42 mm | 38 mm | 38 mm | 39 mm | 38 mm | 38 mm |
| Stack | 567 mm | 571 mm | 581 mm | 590 mm | 600 mm | 614 mm |
| Reach | 396 mm | 403 mm | 421 mm | 427 mm | 434 mm | 434 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 607 mm | 617 mm | 627 mm |
| Seat Tube Angle | 75 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 368 mm | 407 mm | 457 mm | 508 mm | 559 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1045 mm | 1049 mm | 1070 mm | 1080 mm | 1090 mm | 1095 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 680 mm | 708 mm | 748 mm | 786 mm | 825 mm | 863 mm |
| Wheels | 26" | 26" | 26" | 26" | 26" | 26" |
About this model

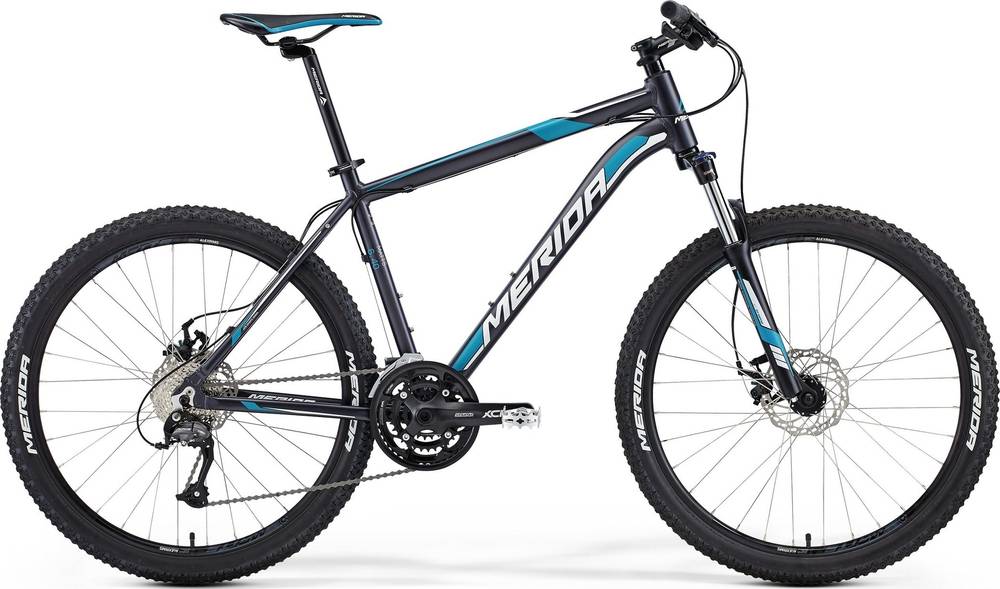

Matts 6. 40-MD is a Merida Matts model. Merida released 172 bikes variations of this model so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Youth bikes
If you want an acceptable Youth bike you should know that the average price is 278$. However, even if your budget is less than the average, you might still be able to get a top-quality Youth bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Matts 6. 40-MD components
Fork
This bike has the SunTour XCT fork installed. The fork’s travel is mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Matts 6. 40-MD 2015 bike is equipped with 26″ aluminum wheels when leaving the factory. These wheels give you great handling over your bike. However, you will need increased suspension than in the case of 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Matts 6. 40-MD has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, performance-wise there is room for improvement.
