Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 24" -
Travel Front 100mm -
Fork SunTour XCM HLO
-
Groupset SLX, Deore -
Suspension Hardtail -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MATTS TFS
Suspension Fork
Suntour SR 26 XCM HLO 100
Drivetrain
Rear Derailleur
Shimano SLX Shadow
Front Derailleur
Shimano Deore triple
Shift Levers
Shimano Deore
Cassette
Shimano CS-HG50-10 11-36
Crank
FSA Dynadrive 40-30-22 (BSA)
Bottom Bracket
BSA, threaded
Chain
KMC X10
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA Matts Comp D
Spokes
Black stainless
Tires
MERIDA RACE 2.1
Brakes
Brakes
Tektro Auriga hydraulic 180 / Tektro Auriga hydraulic 160
Cockpit
Handlebar
MERIDA comp OS 660 R15
Headset
FSA No.11P
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA comp SB12 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 14.5" | 16" | 18" | 20" | 22" | 24" |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.45 mm | 1.45 mm | 1.44 mm | 1.48 mm |
| Front Center | 628 mm | 631 mm | 653 mm | 662 mm | 672 mm | 676 mm |
| Rake | 38 mm | 38 mm | 39 mm | 39 mm | 37 mm | 38 mm |
| Stack | 586 mm | 590 mm | 600 mm | 609 mm | 619 mm | 633 mm |
| Reach | 396 mm | 398 mm | 415 mm | 421 mm | 429 mm | 427 mm |
| Top Tube Length | 552 mm | 572 mm | 592 mm | 607 mm | 617 mm | 626 mm |
| Seat Tube Angle | 75 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 368 mm | 407 mm | 457 mm | 508 mm | 559 mm | 610 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 125 mm | 135 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm | 422 mm |
| Wheelbase | 1047 mm | 1050 mm | 1072 mm | 1081 mm | 1091 mm | 1095 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 680 mm | 708 mm | 753 mm | 790 mm | 829 mm | 869 mm |
| Wheels | 24" | 24" | 24" | 24" | 24" | 24" |
Model Overview

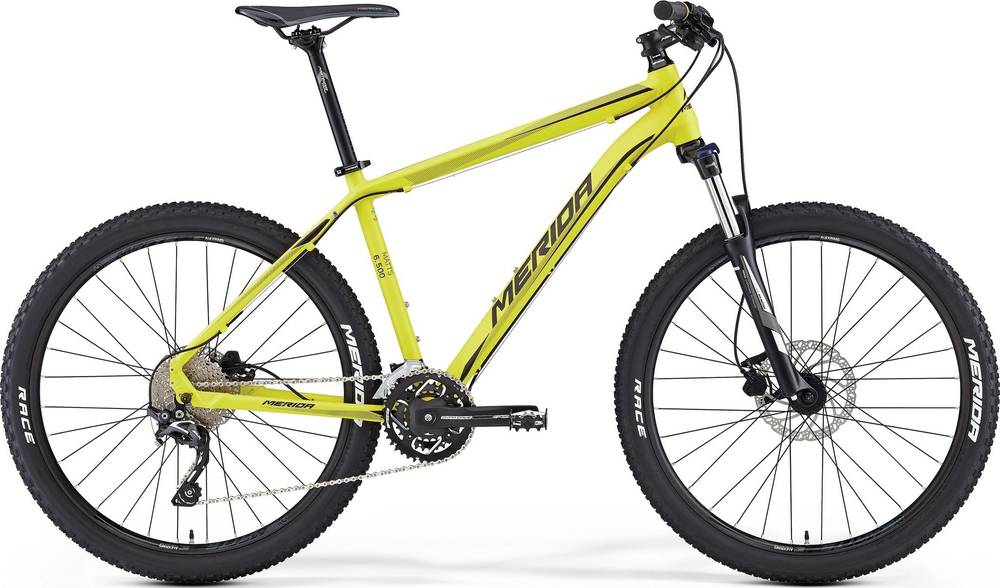

MATTS 6. 500 belongs to the Merida Matts model. Merida released 172 bikes variations of this model so far. You can easily view all of the Merida Matts bikes models from 2016, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Youth bikes
According to our math, the average price for a trustworthy Youth bike is 278$. However, this doesn’t mean that if you spend less money on a Youth bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Youth bikes average weight
The average weight for Youth bikes is 11.74 kg (25.88 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 14 kg (30.86 lbs), Merida bike is much heavier than average. In other words, this model is 19.25% heavier than the average Youth bike.
MATTS 6. 500 components
Fork
This bike has the SunTour XCM HLO fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When leaving the production line, the MATTS 6. 500 model has 24″ aluminum wheels. The 24″ wheels are a good fit for folding bikes, BMX, or children bikes. In conclusion, you can use them better on-road, and less on technical terrain.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida MATTS 6. 500 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
