Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 27.5" -
Fork Suntour XCE -
Groupset Tourney -
Suspension Hardtail -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
BIG.SEVEN SPEED
Suspension Fork
Suntour XCE28
Drivetrain
Rear Derailleur
Shimano TY300
Front Derailleur
Shimano TY300
Cassette
Shimano CS-HG200-12-32, 7s
Crank
Shimano TY301
Bottom Bracket
Cartridge Bearing
Chain
CN-7s
Pedals
Plastic VPE-891
Wheels
Front Hub
Alloy Disc
Rear Hub
Alloy Disc
Brakes
Brakes
BR-MT200 Hydraulic Disc
Cockpit
Handlebar
MERIDA Comp
Headset
A-Head OS
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.6 mm | 1.57 mm | 1.57 mm | 1.57 mm |
| Front Center | 618 mm | 629 mm | 633 mm | 643 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm |
| Stack | 587 mm | 592 mm | 603 mm | 613 mm |
| Reach | 368 mm | 377 mm | 383 mm | 390 mm |
| Top Tube Length | 544 mm | 554 mm | 569 mm | 579 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm |
| Head Tube Angle | 70 ° | 70 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 100 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1036 mm | 1047 mm | 1051 mm | 1062 mm |
| Bottom Bracket Drop | 53 mm | 53 mm | 53 mm | 53 mm |
| Standover Height | 644 mm | 680 mm | 725 mm | 758 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview

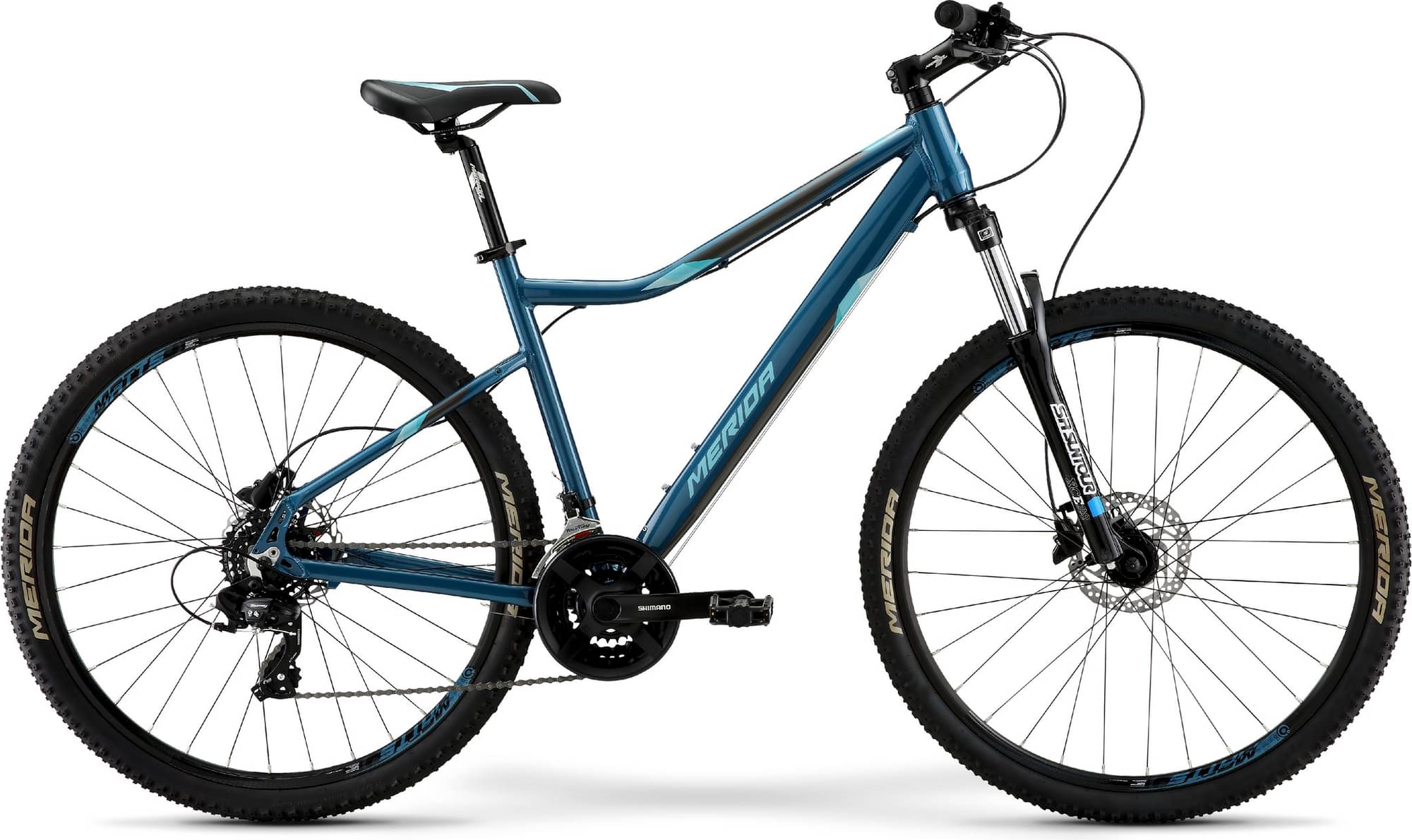

MATTS 7.10 D is part of the Merida Matts model. Merida launched 172 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Model range prices
Merida MATTS J12 2023 is the cheapest bike model and costs 197$. Merida MATTS J. CHAMPION 2023 is the most expensive one and costs 791$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Youth bikes average price
If you want to purchase a solid Youth bike, it is important to know that the average cost is 278$. However, even if your budget is less than the average, you might still be able to get a top-quality Youth bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
MATTS 7.10 D components
Fork
The fork installed on this bike is the Suntour XCE model. The travel on this model is mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the MATTS 7.10 D bike is equipped with the 27.5″ model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
MATTS 7.10 D comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
