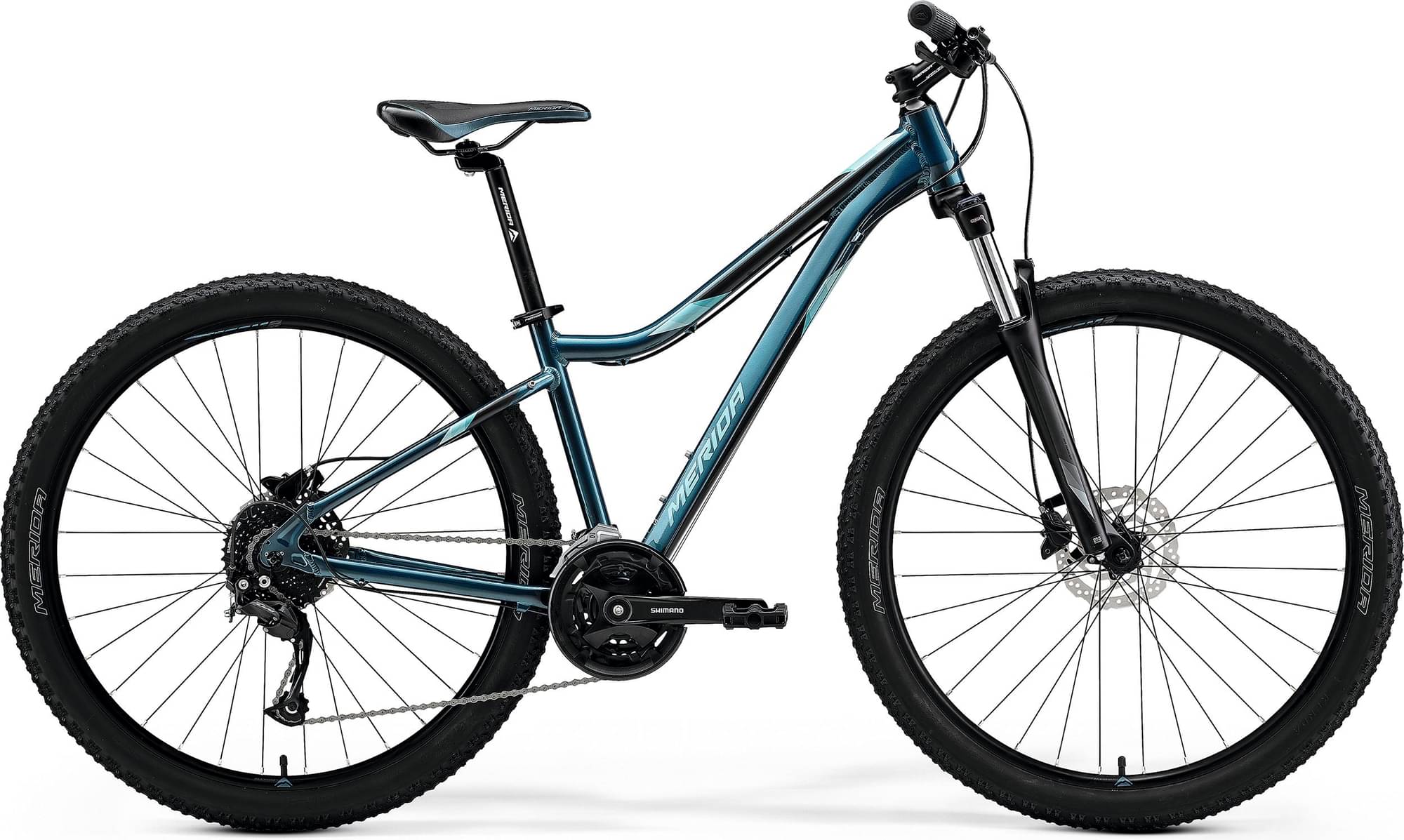

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour XCT
-
Groupset Alivio, Altus -
Suspension Hardtail -
Drivetrain 3 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MATTS 7. SPEED-D, material: aluminium, 27.5x2.25" max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
SR Suntour XCT30 HLO, Coil, 100mm suspension travel, Lockout, 27.5x2.25" max. wheelsize
Drivetrain
Rear Derailleur
Shimano ALIVIO SHADOW
Front Derailleur
Shimano M2000
Shift Levers
Micro Shift SL-M850-L3 / Micro Shift SL-M859-R
Cassette
Shimano HG200, 11-36 teeth, 9 speed
Crank
Shimano MT101, 40-30-22 teeth, 170 mm-XS, 175 mm-M up
Bottom Bracket
FSA TH-7420ST-W, CARTRIDGE BEARING
Chain
KMC M99
Pedals
VP VPE-891
Wheels
Front Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rear Hub
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock, 135x9mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black steel
Tires
MERIDA K1080, 27.5x2.2", wire
Brakes
Brakes
Power DS100, 2 piston, hydraulic disc brake
Cockpit
Handlebar
MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise
Headset
FSA NO.10P 15
Seat
Saddle
MERIDA SPORT COMFORT
Seatpost
MERIDA CC, material: aluminium, 27.2mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.61 mm | 1.59 mm | 1.58 mm |
| Front Center | 617 mm | 628 mm | 638 mm | 649 mm |
| Rake | 39 mm | 40 mm | 39 mm | 39 mm |
| Stack | 596 mm | 601 mm | 612 mm | 622 mm |
| Reach | 366 mm | 374 mm | 386 mm | 393 mm |
| Top Tube Length | 530 mm | 540 mm | 555 mm | 565 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 343 mm | 381 mm | 432 mm | 470 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 424 mm | 424 mm | 424 mm | 424 mm |
| Wheelbase | 1033 mm | 1044 mm | 1054 mm | 1065 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 576 mm | 606 mm | 658 mm | 688 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
Model Overview
MATTS 7. 30 is a Merida Matts model. Merida released 172 bikes variations of this model so far. Take a sneak peek at all Merida Matts bikes models from 2023, by clicking here.
Model range prices
The most economical model, the Merida MATTS J12 2023 has a starting price of 197$. Merida MATTS J. CHAMPION 2023 on the other hand is the most expensive at 791$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Youth bikes
If you want an acceptable Youth bike you should know that the average price is 278$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Youth bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
MATTS 7. 30 components
Fork
Merida MATTS 7. 30 2023 bike is equipped with the Suntour XCT fork, and has 100mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When it comes to wheels, the MATTS 7. 30 bike is equipped with the 27.5″ aluminum model. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
