Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Apex 1, FSA -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MISSION CX TFS, material: aluminium, 700C wheelsize, 100x9/ 135x9mm axle standard, BSA bottom bracket standard
Suspension Fork
MISSION CX TFS
Drivetrain
Rear Derailleur
SRAM Apex1
Shift Levers
SRAM Apex 1
Cassette
Sunrace CSMS8, 11-42 teeth, 11 speed
Crank
FSA Vero Pro, 40 teeth, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
Bottom Bracket
FSA TH-7420ST, Cartridge Bearing
Chain
KMC X11
Wheels
Front Hub
Joytech D481SBT-SC, 100x9mm width front hub, 32 spoke holes, 6 bolt
Rear Hub
Joytech D482TSBT-SC, 135x9mm width rear hub, 32 spoke holes, 6 bolt
Rims
MERIDA COMP SL, 17mm inner width, 22mm height
Spokes
Black stainless
Tires
Maxxis Mud Wrestler, 700x33C, fold, Silkworm
Brakes
Brakes
Promax ROAD PM, Mechanical disc
Brake Levers
SRAM Apex 1 -BL
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium
Headset
MERIDA M2339 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 27.2mm diameter, 12mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | SM/MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.44 mm | 1.48 mm | 1.49 mm | 1.52 mm | 1.52 mm |
| Bottom Bracket Height | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm | 279 mm |
| Front Center | 589 mm | 601 mm | 602 mm | 606 mm | 611 mm | 631 mm |
| Rake | 45 mm | 45 mm | 46 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 74 mm | 69 mm | 64 mm | 64 mm | 64 mm |
| Stack | 526 mm | 547 mm | 563 mm | 581 mm | 595 mm | 614 mm |
| Reach | 372 mm | 381 mm | 381 mm | 391 mm | 391 mm | 405 mm |
| Top Tube Length | 512 mm | 527 mm | 542 mm | 557 mm | 572 mm | 592 mm |
| Seat Tube Angle | 75 ° | 75 ° | 74 ° | 74 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 145 mm | 160 mm | 175 mm | 195 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1007 mm | 1019 mm | 1020 mm | 1025 mm | 1030 mm | 1050 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

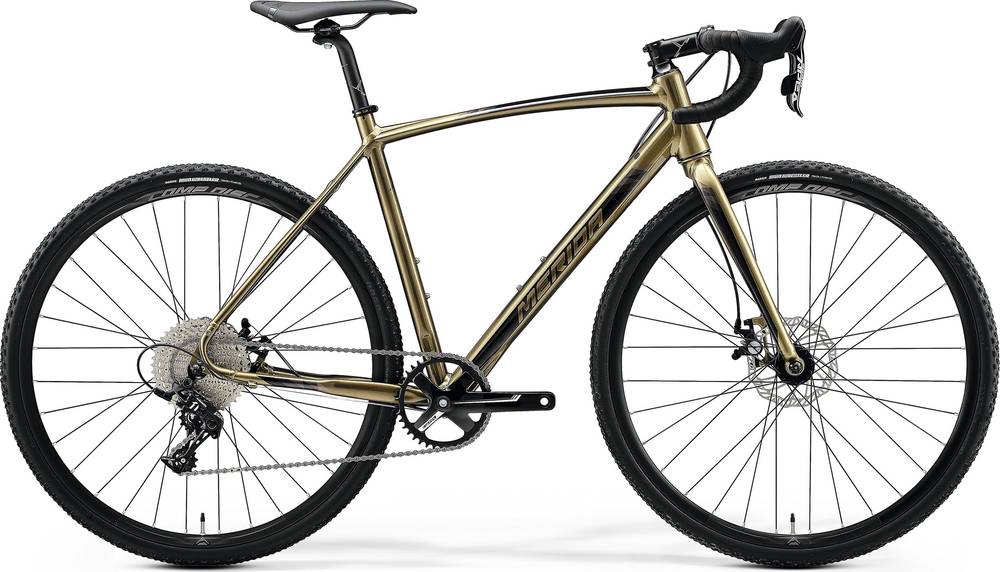

MISSION CX 100 SE belongs to the Merida Mission model. Merida released 30 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Merida MISSION J ROAD 2020 is the most economical model, with a starting price of 851$. Merida MISSION CX FORCE-EDITION 2020 on the other hand costs 5109$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross bikes
Our math shows that the average cost of a dependable Cyclocross bike is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Cyclocross bikes
Cyclocross bikes weigh an average of 8.79 kg (19.38 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 10.25 kg (22.6 lbs), Merida bike is much heavier than average. To sum up, it’s 16.61% heavier than the average weight of Cyclocross bikes.
MISSION CX 100 SE components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
As for the wheels, Merida MISSION CX 100 SE 2020, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The MISSION CX 100 SE has Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
