Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MISSION CX LITE, material: aluminium, 700x35C max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
MISSION CX CF3, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano RS510, 46-36 teeth, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
SM-BB71-41B, Pressfit 86.5
Chain
KMC X11
Wheels
Front Hub
VP CLK170F, 100x12mm width front hub, 32 spoke holes, Centerlock
Rear Hub
VP CLK270R, 142x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Maxxis Mud Wrestler, 700x33C, fold, Silkworm
Brakes
Brakes
Shimano 105, Hydraulic disc
Brake Levers
Shimano 105
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL)
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, 27.2mm diameter, 12mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 585 mm | 599 mm | 602 mm | 615 mm | 628 mm |
| Rake | 50 mm | 50 mm | 45 mm | 44 mm | 44 mm |
| Trail | 67 mm | 65 mm | 65 mm | 65 mm | 63 mm |
| Stack | 516 mm | 535 mm | 555 mm | 574 mm | 593 mm |
| Reach | 375 mm | 384 mm | 394 mm | 403 mm | 413 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.8 ° | 72 ° | 72.3 ° |
| Head Tube Length | 90 mm | 109 mm | 125 mm | 144 mm | 163 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1005 mm | 1019 mm | 1022 mm | 1035 mm | 1048 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 726 mm | 753 mm | 780 mm | 806 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

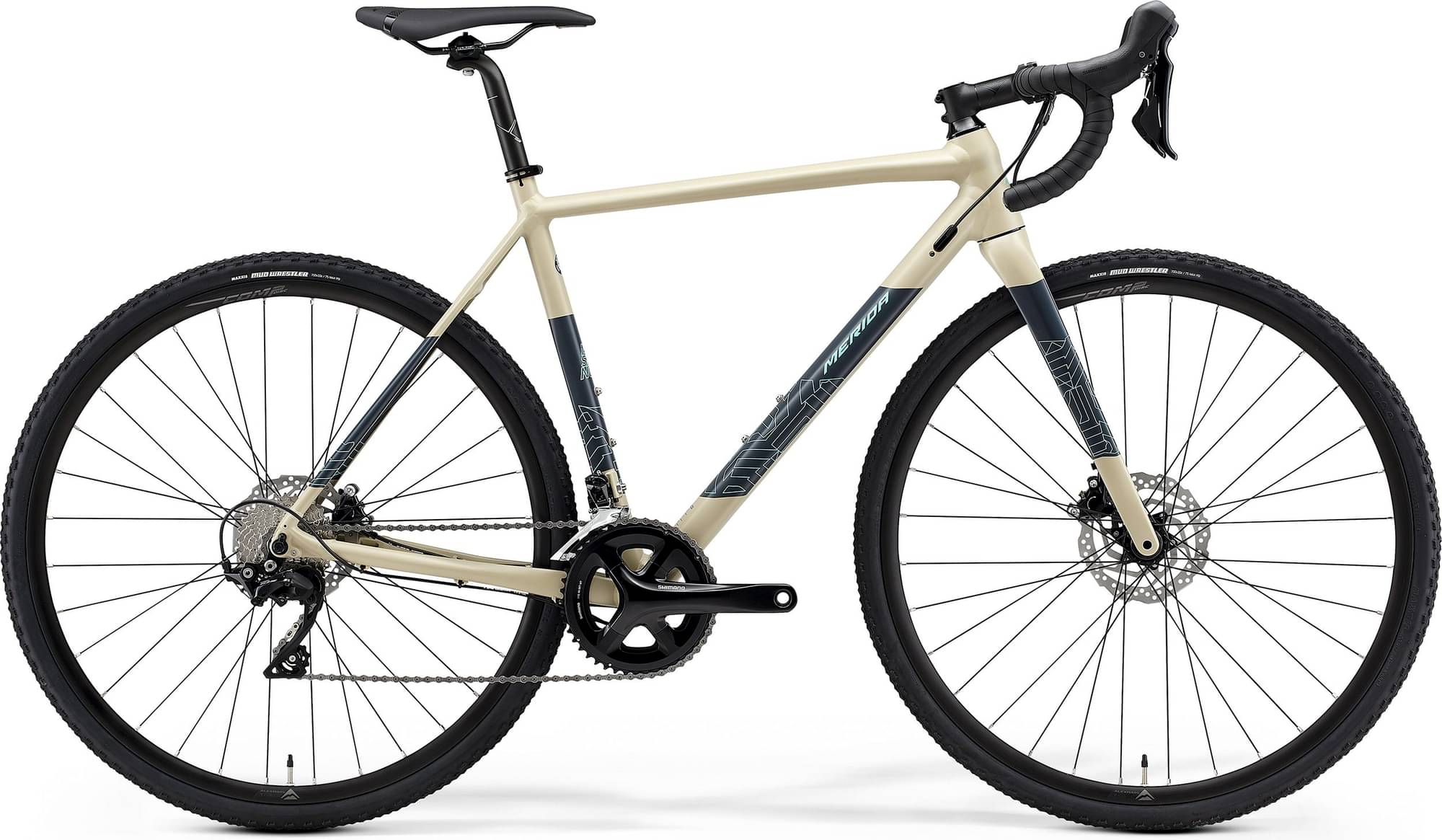

MISSION CX 400 completes the Merida Mission model. Merida released 30 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Cyclocross bikes average price
If you want an acceptable Cyclocross bike you should know that the average price is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Cyclocross bikes average weight
The average weight for Cyclocross bikes is 8.79 kg (19.38 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 9.6 kg (21.16 lbs), Merida bike is a bit heavier than average. In other words, this model is 9.22% heavier than the average Cyclocross bike.
MISSION CX 400 components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The wheels on MISSION CX 400 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
