Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 700c -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MISSION CX CF3
Suspension Fork
MISSION CX CF
Drivetrain
Rear Derailleur
SRAM Apex1
Shift Levers
no / SRAM Apex 1 HRD
Cassette
SRAM PG-1130, 11-42 teeth, 11 speed
Crank
SRAM Apex1, 40 teeth
Chain
KMC X11
Wheels
Front Hub
VP 173SB, 100x12mm width, 32 spoke holes, 6 bolt / VP 273SB, 142x12mm width, 32 spoke holes, 6 bolt
Rear Hub
VP 173SB, 100x12mm width, 32 spoke holes, 6 bolt / VP 273SB, 142x12mm width, 32 spoke holes, 6 bolt
Rims
MERIDA Expert CC, 23mm inner width, 18mm height
Spokes
Black stainless
Tires
Maxxis All Terrane, 700x33C, fold, tubless compatible
Brakes
Brakes
SRAM Apex1 HRD, Hydraulic Disc
Brake Levers
SRAM Apex 1 HRD
Cockpit
Handlebar
MERIDA Expert SL
Headset
VP-B303AC Neck, 2191027145
Seat
Saddle
MERIDA Expert CC
Seatpost
MERIDA Expert CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 585 mm | 599 mm | 602 mm | 615 mm | 628 mm |
| Rake | 50 mm | 50 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 65 mm | 67 mm | 65 mm | 64 mm |
| Stack | 516 mm | 535 mm | 555 mm | 574 mm | 593 mm |
| Reach | 375 mm | 384 mm | 394 mm | 403 mm | 413 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 90 mm | 109 mm | 125 mm | 144 mm | 163 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1001 mm | 1015 mm | 1018 mm | 1031 mm | 1044 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 789 mm | 817 mm | 844 mm | 872 mm | 896 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

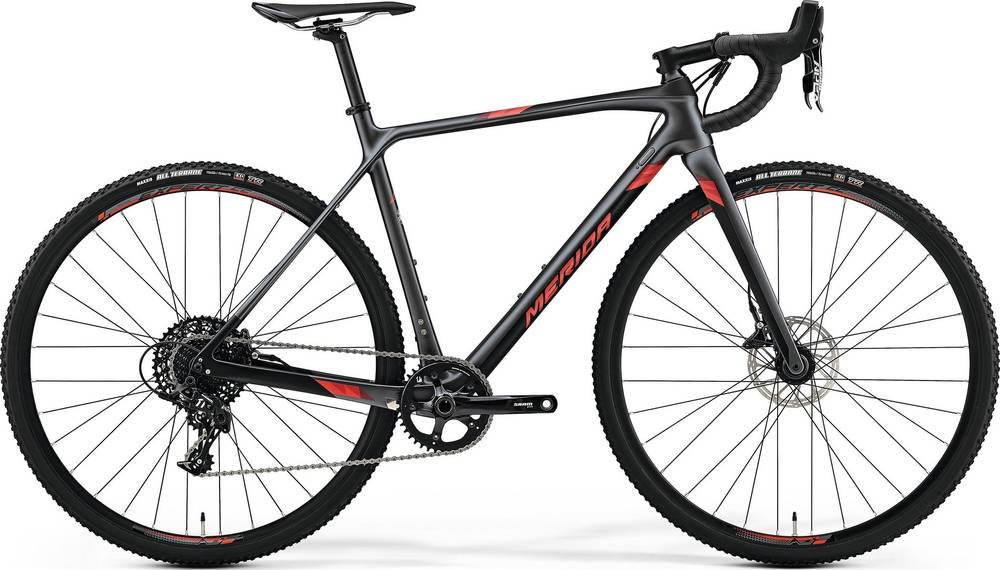

MISSION CX 5000 is part of the Merida Mission model. Merida launched 30 bikes of this model so far. Take a sneak peek at all Merida Mission bikes models from 2019, by clicking here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Cyclocross bikes average price
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Cyclocross bikes
The average weight for Cyclocross bikes is 8.79 kg (19.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 8.73 kg (19.25 lbs), the MISSION CX 5000 model is slightly lighter than average. In other words, this model is 0.69% lighter than the average Cyclocross bike.
MISSION CX 5000 components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The wheels on MISSION CX 5000 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The MISSION CX 5000 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
MISSION CX 5000 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
