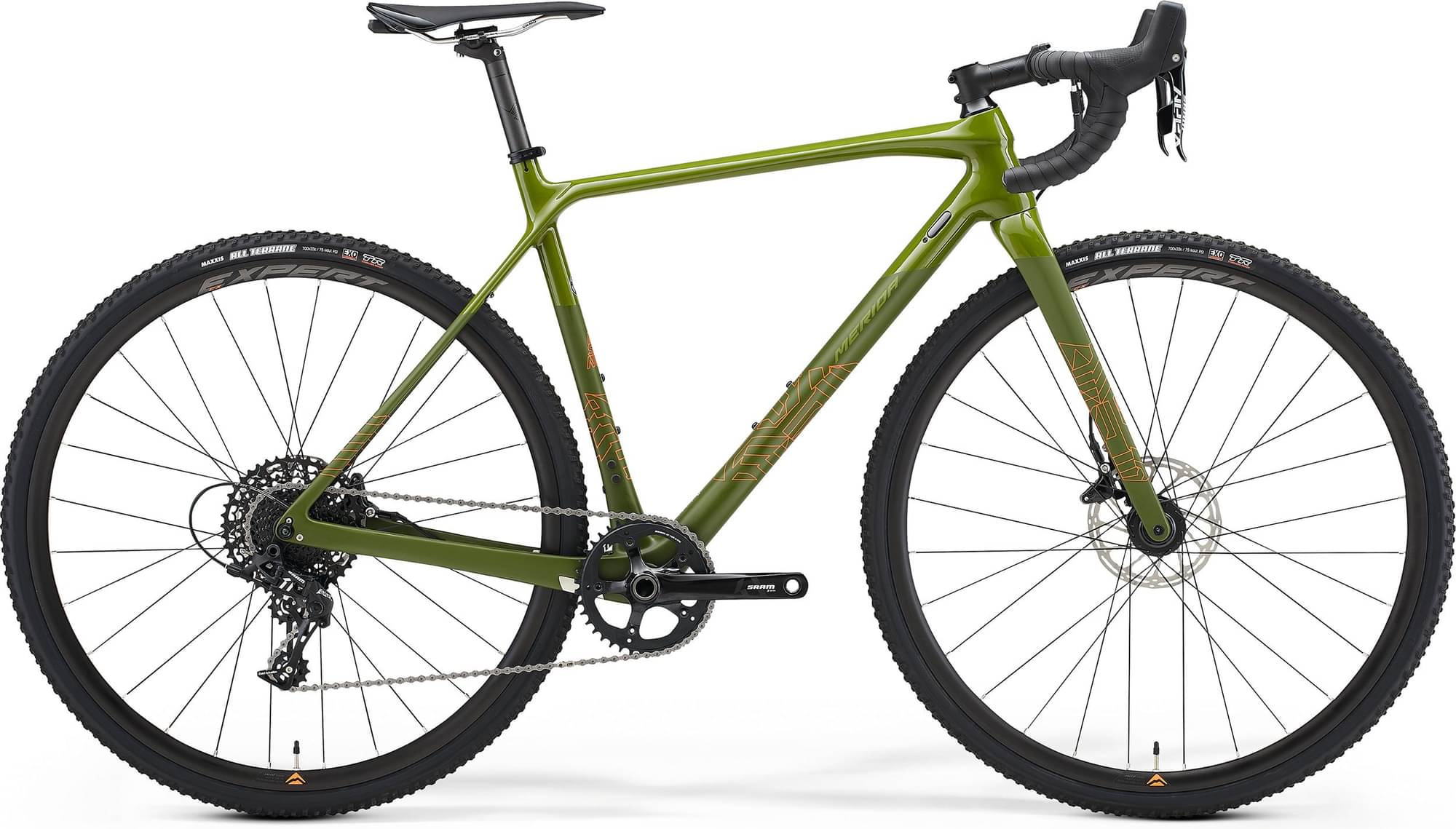

Merida MISSION CX 5000 2021
2021 Road
Estimate price |
2,622$
Weight | 8.7 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MISSION CX CF3, material: carbon, 700x35C max. wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
MISSION CX CF3, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
SRAM Apex1
Shift Levers
no
Cassette
SRAM PG-1130, 11-42 teeth, 11 speed
Crank
SRAM Apex1, 40 teeth, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
VP 173SB, 100x12mm width front hub, 28 spoke holes, 6 bolt
Rear Hub
VP 273SB, 142x12mm width rear hub, 28 spoke holes, 6 bolt
Rims
MERIDA EXPERT CX, 19mm inner width, 24mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Maxxis All Terrane, 700x33C, fold, Tubeless compatible
Brakes
Brakes
SRAM Apex1 HRD, Hydraulic Disc
Brake Levers
SRAM Apex 1 HRD
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium, 380mm(XXS), 400mm (XS-S), 420mm (M), 440mm (L-XL)
Headset
VP-B303AC Neck
Seat
Saddle
MERIDA EXPERT CC + MERIDA Multitool with Saddlebox
Seatpost
MERIDA EXPERT CC, material: carbon, 27.2mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm |
| Front Center | 599 mm | 602 mm | 615 mm |
| Rake | 50 mm | 45 mm | 44 mm |
| Trail | 65 mm | 65 mm | 65 mm |
| Stack | 531 mm | 551 mm | 570 mm |
| Reach | 380 mm | 390 mm | 399 mm |
| Top Tube Length | 533 mm | 548 mm | 563 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71.8 ° | 72 ° |
| Head Tube Length | 109 mm | 125 mm | 144 mm |
| Chainstay Length | 421 mm | 421 mm | 421 mm |
| Wheelbase | 1011 mm | 1014 mm | 1027 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Standover Height | 745 mm | 772 mm | 800 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview
MISSION CX 5000 is a Merida Mission model. 30 bikes variations carry this model name so far. Take a sneak peek at all Merida Mission bikes models from 2021, by clicking here.
Model range prices
Merida MISSION CX 400 2021 is the cheapest bike model and costs 1463$. Merida MISSION CX 7000 2021 is the most expensive one and costs 2802$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Cyclocross bikes
Our math shows that the average cost of a dependable Cyclocross bike is 2012$. However, even though the average price of a Cyclocross bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
This bike was released in 2021 and its price was 2356$. In conclusion, this bike price is 17.1% more expensive than the price of the average Cyclocross bike.
Cyclocross bikes average weight
Cyclocross bikes have an average weight of 8.79 kg (19.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 8.7 kg (19.18 lbs), the MISSION CX 5000 model is slightly lighter than average. To sum up, it’s 1.03% lighter than the average weight of Cyclocross bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on MISSION CX 5000 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The MISSION CX 5000 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
MISSION CX 5000 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
