Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MISSION CX LITE, material: aluminium, 700C wheelsize, 100x12/ 142x12mm axle standard, BB86 bottom bracket standard
Suspension Fork
MISSION CX CF3
Drivetrain
Rear Derailleur
Shimano Ultegra, GS
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
Shimano Ultegra, 46-36 teeth, 170 mm-XS/S, 172.5 mm-M, 175 mm-L/XL
Bottom Bracket
Shimano Pressfit BB71
Chain
KMC X11
Wheels
Front Hub
VP CLK170F, 100x12mm width front hub, 28 spoke holes, Centerlock
Rear Hub
VP CLK270R, 142x12mm width rear hub, 28 spoke holes, Centerlock
Rims
MERIDA EXPERT CX, 19mm inner width, 24mm height
Spokes
Black stainless
Tires
Maxxis All Terrane, 700x33C, fold, tubless compatible
Brakes
Brakes
Shimano Ultegra, Hydraulic disc
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA EXPERT SL, material: aluminium
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA EXPERT CC
Seatpost
MERIDA EXPERT CC, material: carbon, 27.2mm diameter, 15mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 585 mm | 599 mm | 602 mm | 615 mm | 628 mm |
| Rake | 50 mm | 50 mm | 45 mm | 44 mm | 44 mm |
| Trail | 67 mm | 65 mm | 65 mm | 65 mm | 63 mm |
| Stack | 516 mm | 535 mm | 555 mm | 574 mm | 593 mm |
| Reach | 375 mm | 384 mm | 394 mm | 403 mm | 413 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.8 ° | 71 ° | 71.8 ° | 72 ° | 72.3 ° |
| Head Tube Length | 90 mm | 109 mm | 125 mm | 144 mm | 163 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1005 mm | 1019 mm | 1022 mm | 1035 mm | 1048 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 726 mm | 753 mm | 780 mm | 806 mm | 832 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

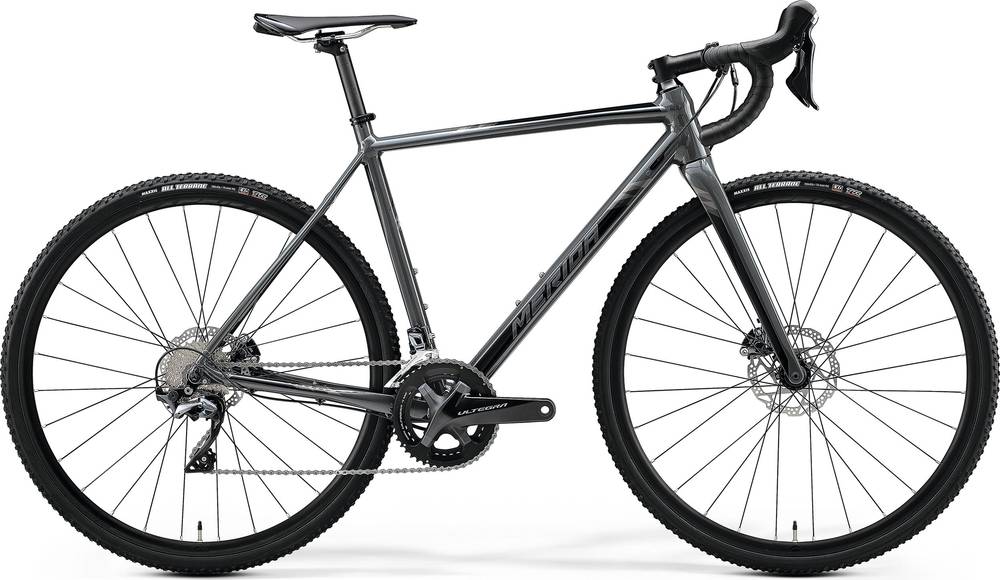

About this model
MISSION CX 700 is a Merida Mission model. Merida released 30 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Model range prices
Merida MISSION J ROAD 2020 is the most affordable bike of this model and has a price of 851$. On the other hand, Merida MISSION CX FORCE-EDITION 2020, is the most expensive and costs 5109$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Cyclocross bikes
According to our calculations, the average cost of a Cyclocross bike that is reliable is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Cyclocross bikes average weight
Cyclocross bikes weigh an average of 8.79 kg (19.38 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
MISSION CX 700 weighs 9.25 kg (20.39 lbs) and is a bit heavier than the average. In other words, this model is 5.23% heavier than the average Cyclocross bike.
MISSION CX 700 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on MISSION CX 700 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The MISSION CX 700 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Merida MISSION CX 700 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
