Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 700c -
Groupset Ultegra, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
MISSION CX CF3
Suspension Fork
MISSION CX CF
Drivetrain
Rear Derailleur
Shimano Ultegra RX, GS
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra disc
Cassette
Shimano CS-R7000, 11-30 teeth, 11 speed
Crank
FSA Gossamer Pro, 46-36 teeth
Chain
KMC X11
Wheels
Rims
Fulcrum Racing 700 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 22mm height, Centerlock
Spokes
attached
Tires
Maxxis All Terrane, 700x33C, fold, tubless compatible
Brakes
Brakes
Shimano Ultegra, Hydraulic disc
Brake Levers
Shimano Ultegra
Cockpit
Handlebar
MERIDA Expert SL
Headset
VP-B303AC Neck, 2191027145
Seat
Saddle
MERIDA Expert CC
Seatpost
MERIDA Expert CC, 27.2mm diameter, 15mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.39 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 276 mm | 276 mm | 276 mm | 276 mm | 276 mm |
| Front Center | 585 mm | 599 mm | 602 mm | 615 mm | 628 mm |
| Rake | 50 mm | 50 mm | 44 mm | 44 mm | 44 mm |
| Trail | 67 mm | 65 mm | 67 mm | 65 mm | 64 mm |
| Stack | 516 mm | 535 mm | 555 mm | 574 mm | 593 mm |
| Reach | 375 mm | 384 mm | 394 mm | 403 mm | 413 mm |
| Top Tube Length | 522 mm | 537 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm | 590 mm |
| Head Tube Angle | 70.75 ° | 71 ° | 71.75 ° | 72 ° | 72.25 ° |
| Head Tube Length | 90 mm | 109 mm | 125 mm | 144 mm | 163 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1001 mm | 1015 mm | 1018 mm | 1031 mm | 1044 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Standover Height | 789 mm | 817 mm | 844 mm | 872 mm | 896 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

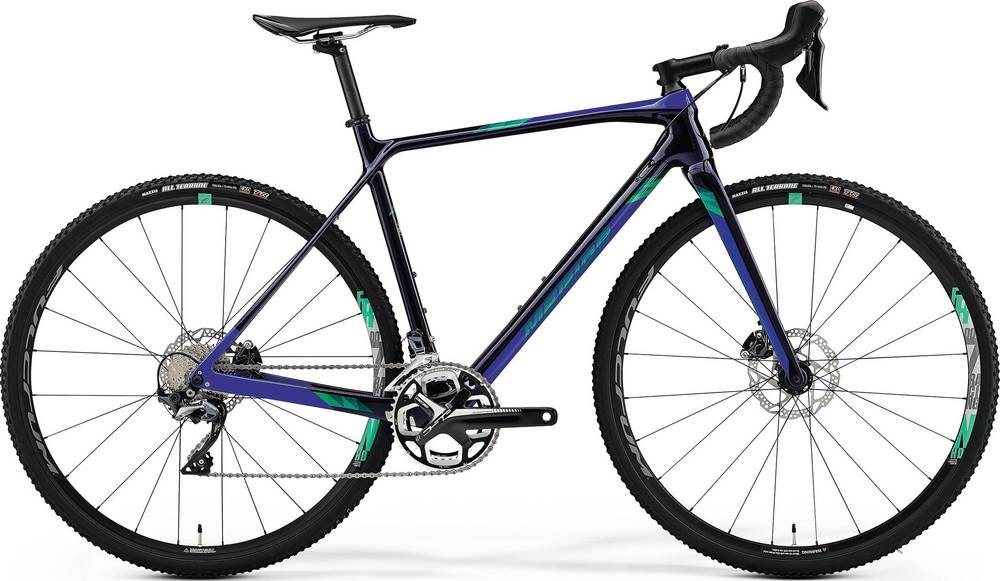

MISSION CX 7000 is a Merida Mission model. Merida released 30 bikes variations of this model so far. You can easily view all of the Merida Mission bikes models from 2019, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Cyclocross bikes
According to our math, the average price for a trustworthy Cyclocross bike is 2012$. However, this doesn’t mean that if you spend less money on a Cyclocross bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Cyclocross bikes average weight
On a deeper look, we notice that the average weight of a Cyclocross bike is 8.79 kg (19.38 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida MISSION CX 7000 it’s weighing 8.6 kg (18.96 lbs). At this weight, is slightly lighter than average. In other words, this model is 2.21% lighter than the average Cyclocross bike.
Overview of components
Fork material
MISSION CX 7000 has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Merida MISSION CX 7000 2019, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The MISSION CX 7000 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
MISSION CX 7000 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
