Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 29" -
Travel Front 120mm -
Fork Fox Float 32
-
Groupset XT, SLX -
Suspension Full -
Drivetrain 3 × 10 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-NINE CF2 / LITE
Suspension Fork
Fox 32 Float 29 CTD Remote-Ready O/C (1.5T, 15QR)- Evolution 120
Rear Shock
Fox Float CTD Remote BV SV - Factory
Drivetrain
Rear Derailleur
Shimano XT Shadow+
Front Derailleur
Shimano XT HD triple
Shift Levers
Shimano SLX ispec
Cassette
Shimano CS-HG50-10 11-36
Crank
Shimano XT 40-30-22
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Shimano Deore 15 / Shimano Deore-12 cen
Rear Hub
Shimano Deore 15 / Shimano Deore-12 cen
Rims
DT Swiss 533D-29
Tires
Continental X-King 29 2.2 fold
Brakes
Brakes
Shimano M615 180 cen / Shimano M615 160 cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 720 Flat
Headset
Big Conoid A-bearing
Seat
Saddle
Prologo Kappa 2
Seatpost
MERIDA carbon H SB0 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 15.5" | 17" | 19" | 21" | 23" |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.43 mm | 1.4 mm | 1.38 mm | 1.4 mm |
| Bottom Bracket Height | 348 mm | 348 mm | 348 mm | 347 mm | 347 mm |
| Front Center | 668 mm | 682 mm | 702 mm | 717 mm | 727 mm |
| Rake | 45 mm | 44 mm | 44 mm | 45 mm | 44 mm |
| Trail | 96 mm | 93 mm | 93 mm | 88 mm | 89 mm |
| Stack | 588 mm | 595 mm | 605 mm | 616 mm | 635 mm |
| Reach | 397 mm | 415 mm | 432 mm | 448 mm | 452 mm |
| Top Tube Length | 579 mm | 599 mm | 619 mm | 639 mm | 649 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 395 mm | 432 mm | 482 mm | 530 mm | 584 mm |
| Head Tube Angle | 69 ° | 69.5 ° | 69.5 ° | 70 ° | 70 ° |
| Head Tube Length | 95 mm | 100 mm | 110 mm | 120 mm | 140 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1112 mm | 1126 mm | 1146 mm | 1161 mm | 1171 mm |
| Bottom Bracket Drop | 26 mm | 26 mm | 26 mm | 27 mm | 27 mm |
| Standover Height | 740 mm | 763 mm | 804 mm | 842 mm | 886 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview

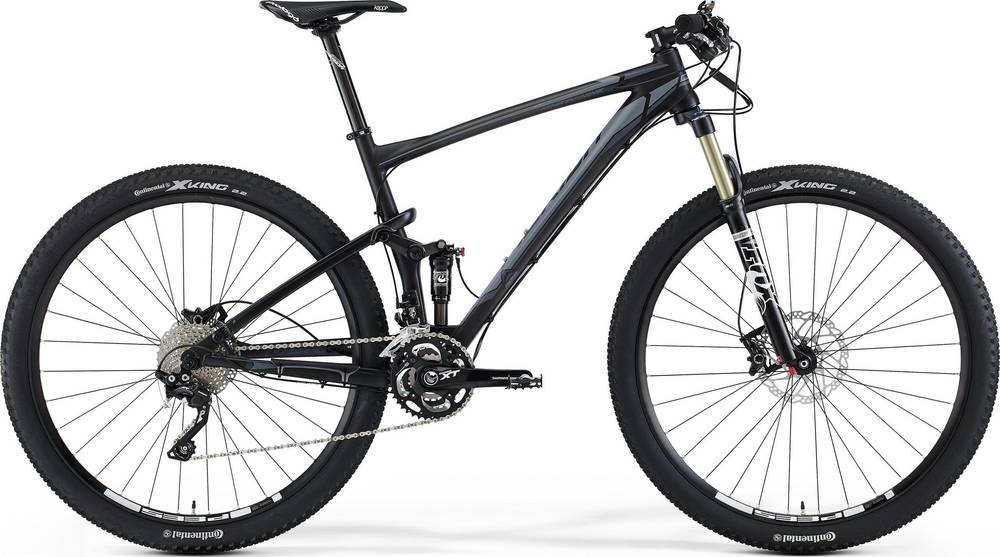

Ninety-Nine 9. XT completes the Merida Ninety Nine model. 6 bikes variations carry this model name so far. You can get a glimpse at all models from 2015, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Fork
This bike has the Fox Float 32 fork installed. The fork’s travel is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The wheels on Ninety-Nine 9. XT are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ninety-Nine 9. XT comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
