Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Fork Manitou Machete Comp
-
Groupset SLX -
Suspension Full -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX LITE
Suspension Fork
Manitou Machete Comp 100mm travel air fork with tapered steerer, 15mm bolt through axle
Rear Shock
Fox Performance Float
Drivetrain
Rear Derailleur
Shimano SLX Shadow
Shift Levers
Shimano SLX 11 speed rapid fire with I-Spec II adapter
Cassette
Sunrace CSMX80, 11 speed, 11-50 teeth
Crank
Shimano SLX 30 teeth
Chain
KMC X11-1
Wheels
Front Hub
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
Rear Hub
Boost standard, Sealed bearing 15mm front and Shimano Deore 12mm rear bolt through axles, centerlock
Rims
MERIDA BIG.SEVEN/BIG.NINE Comp CC
Spokes
Double Butted Black stainless
Tires
Maxxis Ikon 2.2" folding
Brakes
Brakes
Shimano M500 hydraulic disc, 180mm / 160mm rotors
Brake Levers
Shimano M500
Cockpit
Handlebar
MERIDA Expert CC 720mm wide flat
Headset
FSA NO.55E
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp in line 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | MD | MD | MD | LG | XL |
|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.32 mm | 1.32 mm | 1.37 mm | 1.37 mm | 1.34 mm | 1.32 mm |
| Bottom Bracket Height | 353 mm | 353 mm | 353 mm | 334 mm | 334 mm | 334 mm | 334 mm |
| Front Center | 664 mm | 689 mm | 689 mm | 684 mm | 684 mm | 709 mm | 734 mm |
| Rake | 44 mm | 44 mm | 44 mm | 51 mm | 51 mm | 51 mm | 52 mm |
| Trail | 97 mm | 97 mm | 97 mm | 82 mm | 82 mm | 82 mm | 81 mm |
| Stack | 559 mm | 573 mm | 573 mm | 592 mm | 592 mm | 606 mm | 620 mm |
| Reach | 414 mm | 434 mm | 434 mm | 432 mm | 432 mm | 452 mm | 471 mm |
| Top Tube Length | 563 mm | 588 mm | 588 mm | 593 mm | 593 mm | 618 mm | 643 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 420 mm | 460 mm | 460 mm | 460 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 115 mm | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1093 mm | 1118 mm | 1118 mm | 1121 mm | 1121 mm | 1146 mm | 1171 mm |
| Bottom Bracket Drop | 21 mm | 21 mm | 21 mm | 40 mm | 40 mm | 40 mm | 40 mm |
| Standover Height | 760 mm | 762 mm | 762 mm | 790 mm | 790 mm | 791 mm | 794 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 168 cm | 168 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 180 cm | 180 cm | 180 cm | 189 cm | 199 cm |
About this model

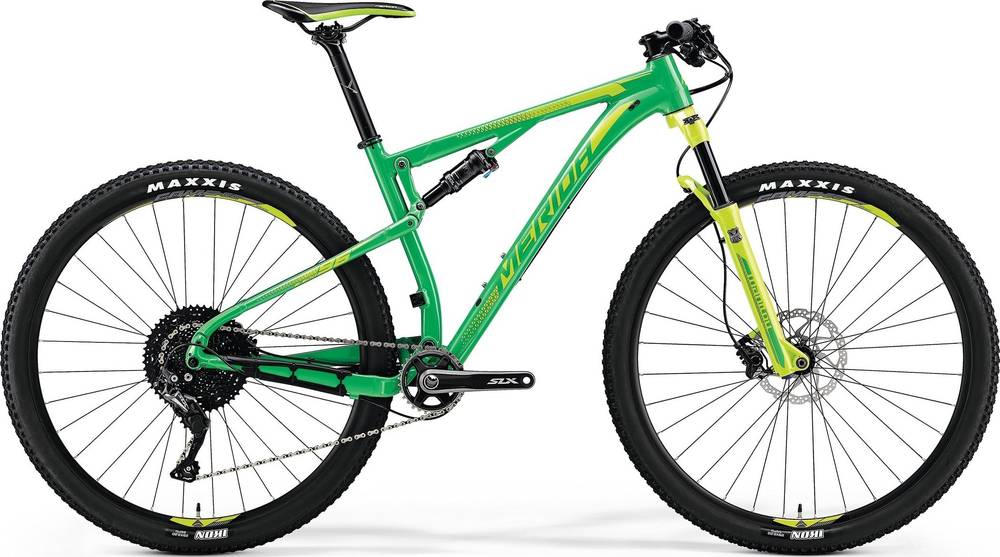

NINETY-SIX 600 is part of the Merida Ninety Six model. 46 bikes variations carry this model name so far. You can easily view all of the Merida Ninety Six bikes models from 2018, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida NINETY-SIX 600 it’s weighing 12.6 kg (27.78 lbs). At this weight, is slightly heavier than average. In conclusion, the average Crosscountry bike weighs 1.61% less than NINETY-SIX 600.
Overview of components
Fork
The Manitou Machete Comp is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, Merida NINETY-SIX 600 2018, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The NINETY-SIX 600 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 7 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
