Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Wheels 29" -
Travel Front 100mm -
Travel Rear 96mm -
Fork Fox Rhythm Float 32
-
Groupset GX Eagle, Truvativ Stylo -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX LITE
Suspension Fork
Fox Rhythm 32 Float, Air, 100mm suspension travel, Tapered, Remote lockout
Rear Shock
FOX Performance Elite Float, remote lockout
Drivetrain
Rear Derailleur
SRAM GX Eagle
Front Derailleur
no
Shift Levers
no / SRAM GX Eagle
Cassette
SRAM XG 1275 Eagle, 10-50 teeth, 12 speed
Crank
SRAM Stylo 6K Eagle, 32 teeth
Bottom Bracket
SRAM BB DUB press-fit MTB 92
Chain
SRAM GX Eagle
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, Centerlock / Joytech D462SB, 148x12mm width, 32 spoke holes, Centerlock, SRAM XD
Rear Hub
Joytech D791SB, 110x15mm width, 32 spoke holes, Centerlock / Joytech D462SB, 148x12mm width, 32 spoke holes, Centerlock, SRAM XD
Rims
MERIDA Expert CC, 22.8mm inner width
Spokes
Double Butted Black stainless
Tires
Continental X-King 2.2, 29x2.2", fold, Performance
Brakes
Brakes
Shimano MT-500
Brake Levers
Shimano MT-501
Cockpit
Stem
Merida Expert CC, 31.8mm diameter, -6° stem angle
Handlebar
MERIDA Expert CC, 720mm width, flat
Grips
Merida Expert EC
Headset
FSA NO.55E, 2191018117
Seat
Saddle
Prologo Scratch
Seatpost
MERIDA Comp CC, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.32 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm |
| Front Center | 684 mm | 709 mm | 734 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 82 mm | 82 mm | 81 mm |
| Stack | 581 mm | 595 mm | 609 mm |
| Reach | 421 mm | 441 mm | 460 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1110 mm | 1135 mm | 1160 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Standover Height | 779 mm | 780 mm | 783 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |

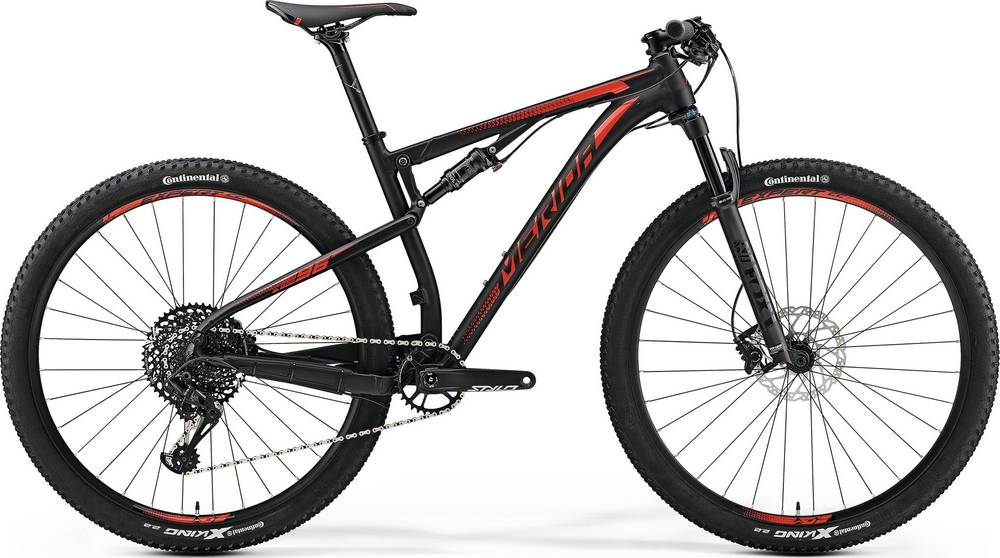

Model Overview
NINETY-SIX 800 completes the Merida Ninety Six model. 46 bikes variations carry this model name so far. You can get a glimpse at all models from 2019, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 12.92 kg (28.48 lbs), the NINETY-SIX 800 model is slightly heavier than average. To sum up, it’s 4.19% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The NINETY-SIX 800 comes factory-installed with the Fox Rhythm Float 32 fork. This has a travel range of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The NINETY-SIX 800 has a rear shock with a travel of 96mm. The model FOX Performance Elite Float is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Merida NINETY-SIX 800 2019, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
