Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Travel Rear 96mm -
Fork Manitou Markhor
-
Groupset SX Eagle, X1 -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
LG
177cm - 190cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
NINETY-SIX LITE, 96mm suspension travel, material: aluminium, 29 wheelsize, 148x12mm axle standard, BB92 bottom bracket standard
Suspension Fork
Manitou Markhor Comp, Air, 100mm suspension travel, Tapered, Remote lockout, 51mm fork offset
Rear Shock
Rock Shox Monarch RL, lockout
Drivetrain
Rear Derailleur
SRAM SX Eagle
Shift Levers
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle, 11-50 teeth, 12 speed
Crank
SRAM X1 1000 Eagle, 32 teeth, 175mm-M up
Bottom Bracket
SRAM BB DUB PF MTB 92
Chain
SRAM SX Eagle
Wheels
Front Hub
Shimano MT400-B, 110x15mm width front hub, 32 spoke holes, Centerlock
Rear Hub
Shimano MT400-B, 148x12mm width rear hub, 32 spoke holes, Centerlock
Rims
MERIDA COMP CC, 20mm inner width, material: aluminium
Spokes
Black stainless
Tires
Maxxis Ikon, 29x2.2", fold
Brakes
Brakes
Shimano MT-200, 2 piston
Cockpit
Handlebar
MERIDA EXPERT CC, material: aluminium, 720mm width, flat
Headset
FSA NO.55E
Seat
Saddle
MERIDA COMP CC
Seatpost
MERIDA COMP CC, material: aluminium, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.35 mm | 1.32 mm |
| Bottom Bracket Height | 334 mm | 334 mm | 334 mm |
| Front Center | 684 mm | 709 mm | 734 mm |
| Rake | 51 mm | 51 mm | 52 mm |
| Trail | 82 mm | 82 mm | 81 mm |
| Stack | 581 mm | 595 mm | 609 mm |
| Reach | 421 mm | 441 mm | 460 mm |
| Top Tube Length | 582 mm | 607 mm | 632 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 429 mm | 429 mm | 429 mm |
| Wheelbase | 1110 mm | 1135 mm | 1160 mm |
| Bottom Bracket Drop | 40 mm | 40 mm | 40 mm |
| Standover Height | 779 mm | 780 mm | 783 mm |
| Wheels | 29" | 29" | 29" |
| Rider Max Height | 183 cm | 190 cm | cm |
About this model

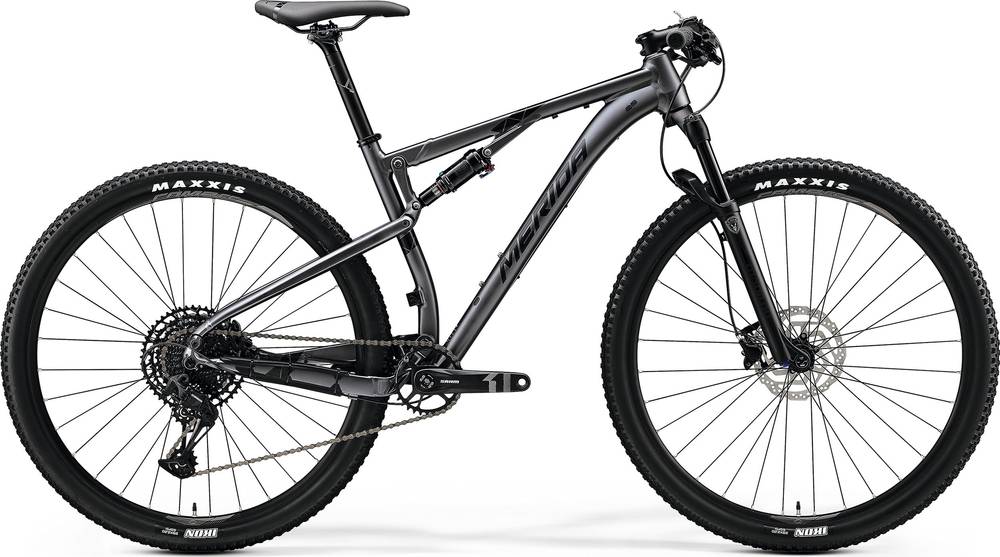

NINETY-SIX 9. 400 is a Merida Ninety Six model. There are 46 bikes that carry this model name. Take a sneak peek at all Merida Ninety Six bikes models from 2020, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida NINETY-SIX 9. 400 it’s weighing 13.29 kg (29.3 lbs). At this weight, is a bit heavier than average. In other words, this model is 7.18% heavier than the average Crosscountry bike.
NINETY-SIX 9. 400 components
Fork
The Manitou Markhor is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The NINETY-SIX 9. 400 has a rear shock with a travel of 96mm. The model Rock Shox Monarch RL is the one installed in this bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
The NINETY-SIX 9. 400 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida NINETY-SIX 9. 400 has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
